626-037-662-040 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 626-037-662-040

626-037-662-040: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

626-037-662-040 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	626-037-662-040	-	-	View	Buy Now

626-037-662-040 Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

626-037-662-040 Parametric

Parameter Name	Attribute value
Maker	EDAC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FIXED HEX STANDOFFS
body width	0.494 inch
subject depth	0.747 inch
body length	2.73 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	626
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	STANDOFF
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

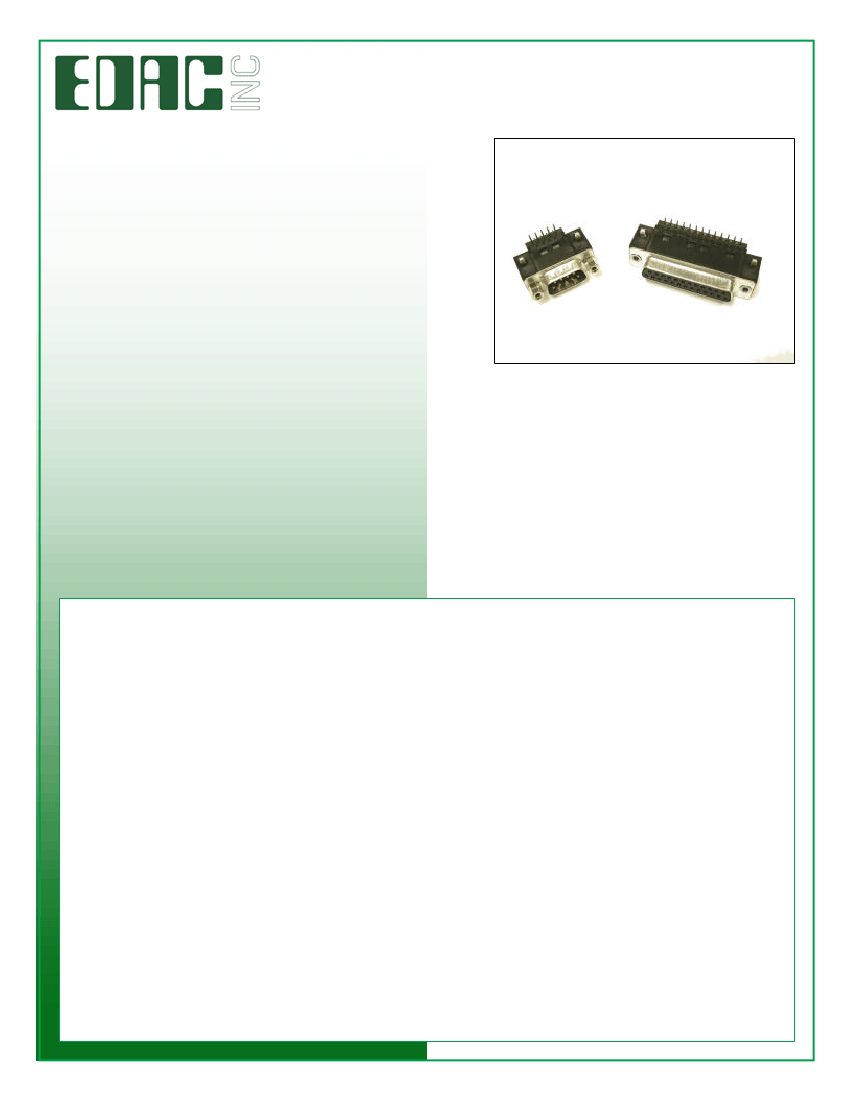

SERIES 625 / 626 D-SUBMINIATURES

0.590 FOOTPRINT RIGHT ANGLE

Edac Series 625 (Plug) and 626 (Receptacle) D-

Subminiature connectors are one of the most well-known

D-Sub connector families in the world. These series fea-

ture a deep 0.590 (14.99mm) footprint in the popular D

shell sizes of 9, 15, 25, and 37 contacts. They will mate

with all other industry-standard D-Sub connectors that are

based on EIA RS232, EIA RS449, and MIL-C-24308 stan-

dards. All connectors feature a metal shell for EMI/RFI

shielding and have up to four prong board locks for superior

retention to the printed circuit board. Indents on the plug

shell provide grounding and additional mating retention.

Grounding features include top or bottom ground plates. All

units are a right angle design with printed circuit contacts.

Threaded inserts and standoffs are optional.

SPECIFICATIONS

•

0.109 (2.77mm) contact x 0.112 (2.82mm) row spacing

Insulator Material: Black thermoplastic polyester, UL 94V-0

Contact Material: plug brass; receptacle phosphor bronze

Contact Plating: Gold over nickel for the mating area

Shell Material: Nickel-plated steel

Operating Temperature: -55° to +125°

•

Current Rating: 5 amperes

Contact Resistance: 10 milliohms maximum

Dielectric Withstanding Voltage: 1000 V AC rms @0asl

Insulation Resistance: 5000 megohms minimum

This series is available worldwide through our

global distribution network. Factory standard

package is 25 pieces per carton.

ORDERING CODE

SAMPLE PART NUMBER:

625-025-262-010

•

625 = Series Number :

Plug with 0.590" footprint. For Receptacle use series 626.

025 = Number of contacts :

025 = 25 pins. Available in 9, 15, 25 or 37 pins.

262 = Contact Style :

262 = gold flash (euro class 3). Other standard plating options include 562 for 10u

gold plate (euro class 2), and 662 for 30u gold plate (euro class 1).

•

0 = Modification Code :

0 = standard part. A code of 9 indicates that this is a custom product. Edac can

custom manufacture D-Subs to meet any design criteria. This includes unique contact plating, special con-

tact lengths, board mount options, or panel mount hardware, and alternate plastics or metals.

1 = Board Mounting Options:

1 = 0.120 (3.05mm) diameter through-hole top ground; 2 = 0.120 (3.05mm)

diameter through-hole bottom ground; 3 = two-prong board locks for 0.120 (3.05mm) diameter PCB hole

(standard for ferrite versions); 4 = four-prong board locks for 0.120 (3.05mm) diameter PCB hole.

0 = Panel Mounting Options :

0 = 4-40 UNC fixed standoff; 1 = 0.125 (3.18mm) diameter through-hole; 2 =

4-40 UNC threaded insert; 3 = 4-40 UNC threaded standoff.

•

www.edac.net

Sheet D-625
