POWER INDUCTORS <Pin Type: RCP Series>
Type: RCP-105, RCP-105L
◆
Product Description
・10.5mm
Max.φ, 13.5mm(RCP-105);10.5mm(RCP-105L)Max. height.
・Inductance
Range: 100mH½1.5H(RCP-105);100μH½47mH(RCP-105L).
・Rated
Current Range: 14½420mA(RCP-105);14½420mA(RCP-105L).
・Custom
design is available.
◆
Feature
・Magnetically
shielded construction.
・Ideally
Used in Printers, LCD TV, Copy Machine, Mainboard of the compounding machines, etc
as Power Supplies’s Inductors or DC-DC Converter inductors.
・RoHS
Compliance.
◆

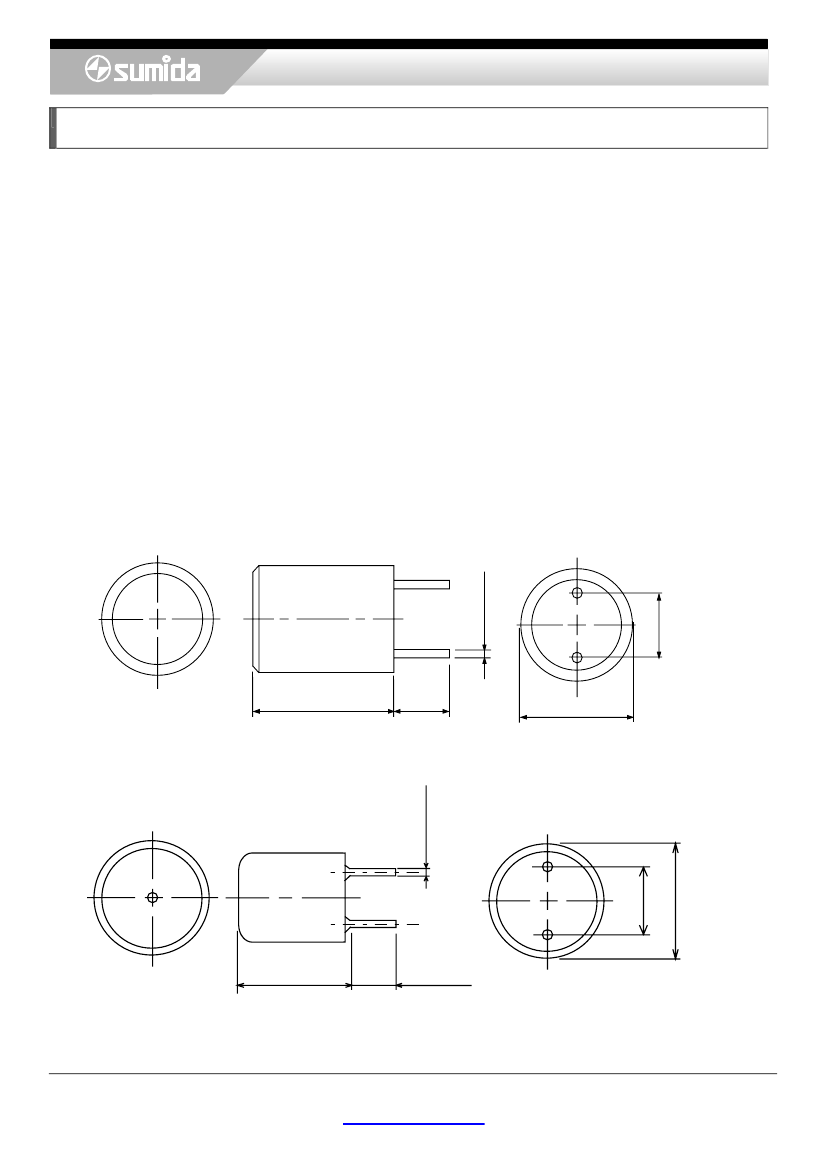

Dimensions (mm)
RCP-105
φ0.7 ±0.1
MA X. 13. 5
±1.0
5.0
10.0±0.5
RCP-105L
+0.1
φ0.7-0.05
5.0 ±0.2
10.5 Max.
+1.0
4.5-0.5
Please refer to the sales offices on our website for a representative near you
www.sumida.com
φ10.0±0.5
5.0±0.15
1/3
POWER INDUCTORS <Pin Type: RCP Series>
Type: RCP-105, RCP-105L
◆
Specification (RCP-105)
Part No.
RCP1Ø5NP-1Ø4K
RCP1Ø5NP-124K
RCP1Ø5NP-154K
RCP1Ø5NP-184K
RCP1Ø5NP-224K
RCP1Ø5NP-274K
RCP1Ø5NP-334K
RCP1Ø5NP-394K
RCP1Ø5NP-474K
RCP1Ø5NP-564K
RCP1Ø5NP-684K
RCP1Ø5NP-824K
RCP1Ø5NP-1Ø5K
RCP1Ø5NP-125K
RCP1Ø5NP-155K
Stamp
104K
124K
154K
184K
224K
274K
334K
394K
474K
564K
684K
824K
105K
125K
155K
Inductance
[Within]
(at1kHz)
100mH
±
10%
120mH
±
10%
150mH
±
10%
180mH
±
10%
220mH
±
10%
270mH
±
10%
330mH
±
10%
390mH
±
10%
470mH
±
10%
560mH
±
10%
680mH
±
10%
820mH
±
10%
1.0H
±
10%
1.2H
±
10%
1.5H
±
10%
Unloaded
Ｑ
[Min.]
(at1kHz)
45
50
55
70
85
100
135
150
215
240
250
280
460
500
570
D.C.R.(Ω)
[Max.]
(at 20℃)
20
21
24
21
21.5
24
20
21
19
22
23
22.5
18
20
21
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/3
POWER INDUCTORS <Pin Type: RCP Series>
Type: RCP-105, RCP-105L
◆
Specification( RCP-105L)
Part No.
RCP1Ø5LNP-1Ø1K
RCP1Ø5LNP-121K
RCP1Ø5LNP-151K
RCP1Ø5LNP-181K
RCP1Ø5LNP-221K
RCP1Ø5LNP-271K
RCP1Ø5LNP-331K
RCP1Ø5LNP-391K
RCP1Ø5LNP-471K
RCP1Ø5LNP-561K
RCP1Ø5LNP-681K
RCP1Ø5LNP-821K
RCP1Ø5LNP-1Ø2K
RCP1Ø5LNP-122K
RCP1Ø5LNP-152K
RCP1Ø5LNP-182K
RCP1Ø5LNP-222K
RCP1Ø5LNP-272K
RCP1Ø5LNP-332K
RCP1Ø5LNP-392K
RCP1Ø5LNP-472K
RCP1Ø5LNP-562K
RCP1Ø5LNP-682K
RCP1Ø5LNP-822K
RCP1Ø5LNP-1Ø3K
RCP1Ø5LNP-123K
RCP1Ø5LNP-153K
RCP1Ø5LNP-183K
RCP1Ø5LNP-223K
RCP1Ø5LNP-273K
RCP1Ø5LNP-333K
RCP1Ø5LNP-393K
RCP1Ø5LNP-473K
Stamp
101K
121K
151K
181K
221K
271K
331K
391K
471K
561K
681K
821K
102K
122K
152K
182K
222K
272K
332K
392K
472K
562K
682K
822K
103K
123K
153K
183K
223K
273K
333K
393K
473K
Inductance
[Within]
(at
1kHz)
100µH±10%
120µH±10%
150µH±10%
180µH±10%
220µH±10%
270µH±10%
330µH±10%
390µH±10%
470µH±10%
560µH±10%
680µH±10%
820µH±10%
1.0mH±10%
1.2mH±10%
1.5mH±10%
1.8mH±10%
2.2mH±10%
2.7mH±10%
3.3mH±10%
3.9mH±10%
4.7mH±10%
5.6mH±10%
6.8mH±10%
8.2mH±10%
10mH±10%
12mH±10%
15mH±10%
18mH±10%
22mH±10%
27mH±10%
33mH±10%
39mH±10%
47mH±10%
Unloaded
Ｑ
[Min.]
(at100kHz)
30
40
45
50
50
50
60
60
75
75
80
80
80
80
80
80
80
85
85
100
100
100
100
100
100
100
100
100
100
100
80
80
80
D.C.R.(Ω)
[Max.]
(at 20℃)
0.20
0.25
0.30
0.40
0.45
0.50
0.70
0.80
0.90
1.2
1.3
1.5
2.0
2.3
3.1
3.5
4.1
5.8
6.6
9.5
11.0
12.0
14.0
19.0
22.0
30.0
35.0
44.0
50.0
70.0
80.0
85.0
100.0
Rated current
(mA)
[Ref.]※1
420
390
340
310
280
250
230
210
190
180
160
150
130
120
110
100
90
80
70
65
60
55
50
45
40
37
33
30
28
24
22
18
14
※1
Rated current: The DC current at which the inductance decreases to 90% of it’s initial value or when
△t=40℃,whichever
is lower(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
3/3
