Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 747CD-44
PDF
Preview

747CD-44

Description
Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth
CategoryWireless rf/communication    Radio frequency and microwave
File Size570KB，4 Pages
ManufacturerCommScope Inc
Download Datasheet Parametric Compare View All

747CD-44 Overview

Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth

747CD-44 Parametric

Parameter NameAttribute value
MakerCommScope Inc
Reach Compliance Codeunknown
Beamwidth-H60 deg
Characteristic impedance50 Ω
OmnidirectionalNO
Maximum operating frequency30 MHz
Minimum operating frequency4 MHz
polarizationLINEAR HORIZONTAL
RF/Microwave Device TypesYAGI ANTENNA
Maximum transmission power20000 W
Maximum voltage standing wave ratio2
Commentary100 mph
Base Number Matches1

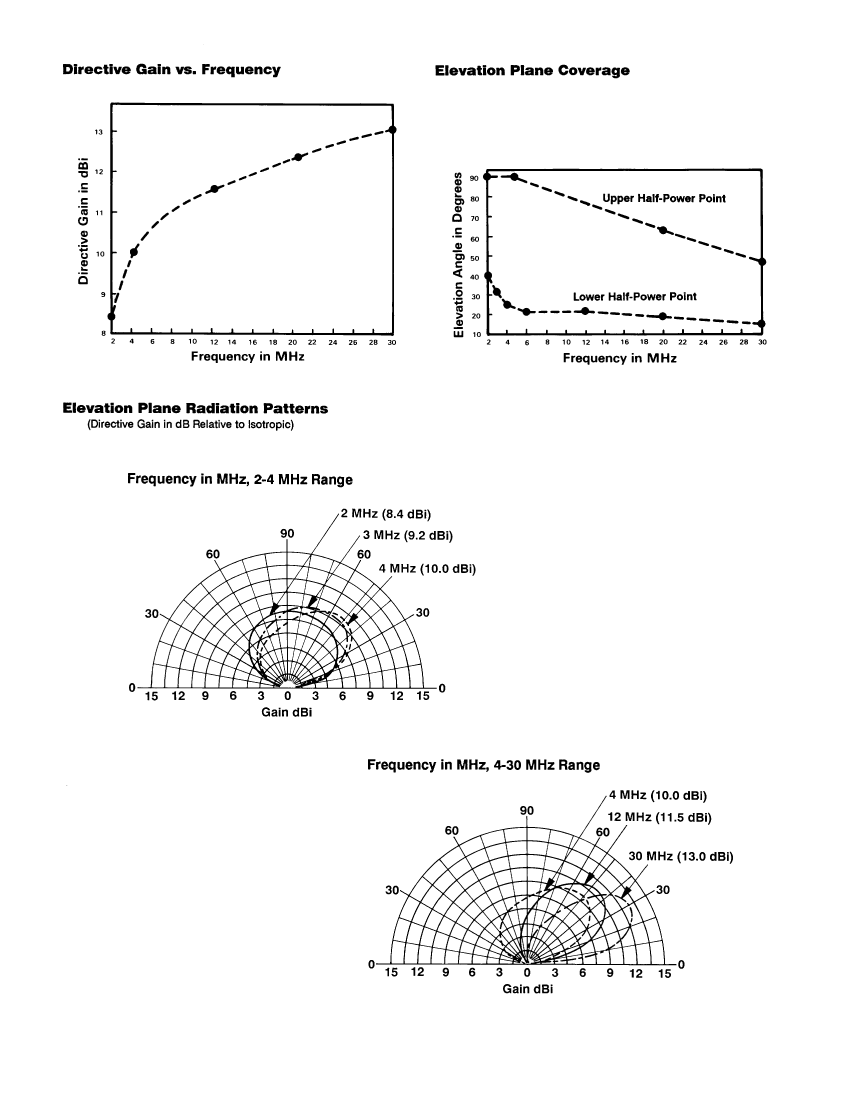

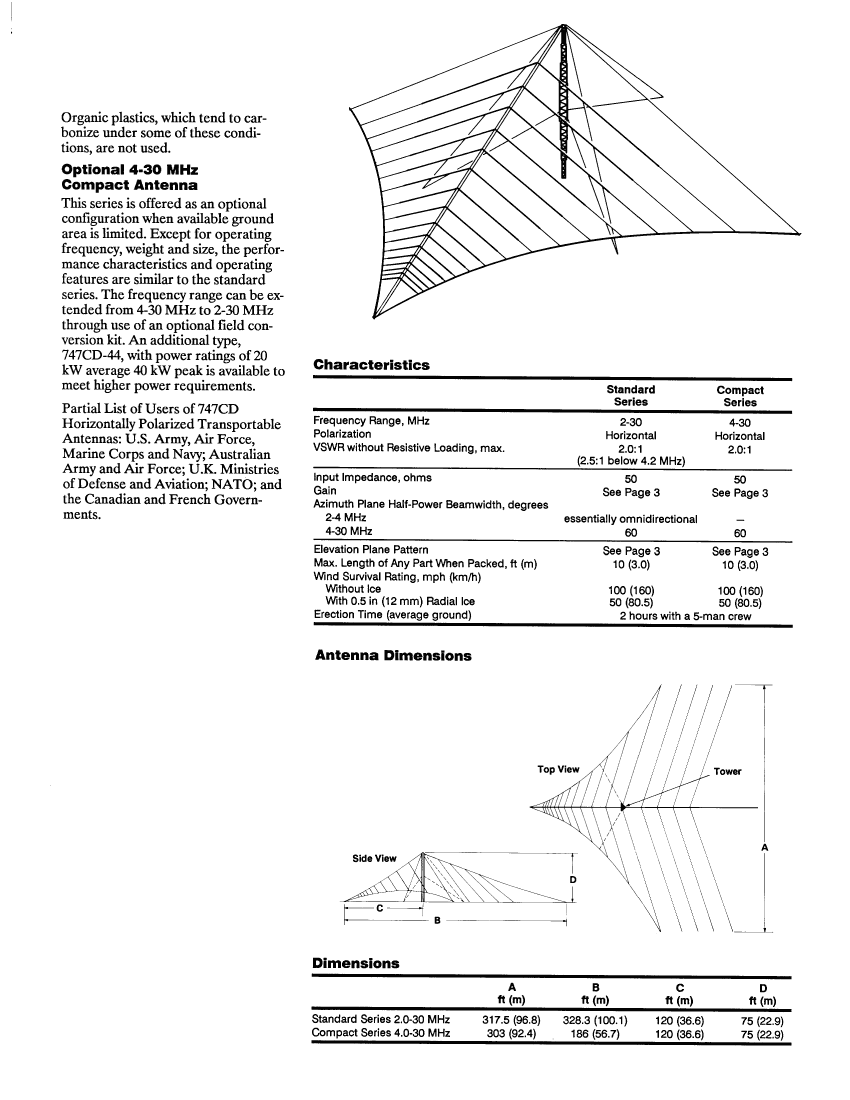

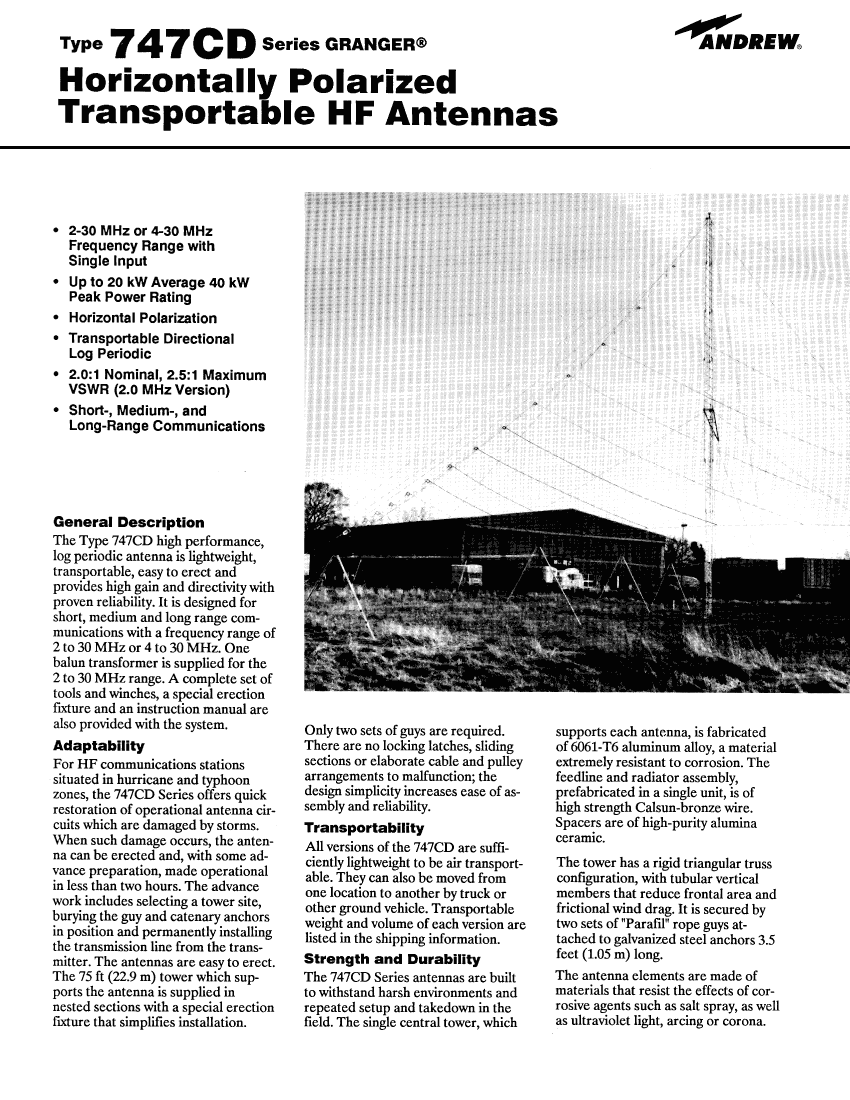

Preview

Download Datasheet
1

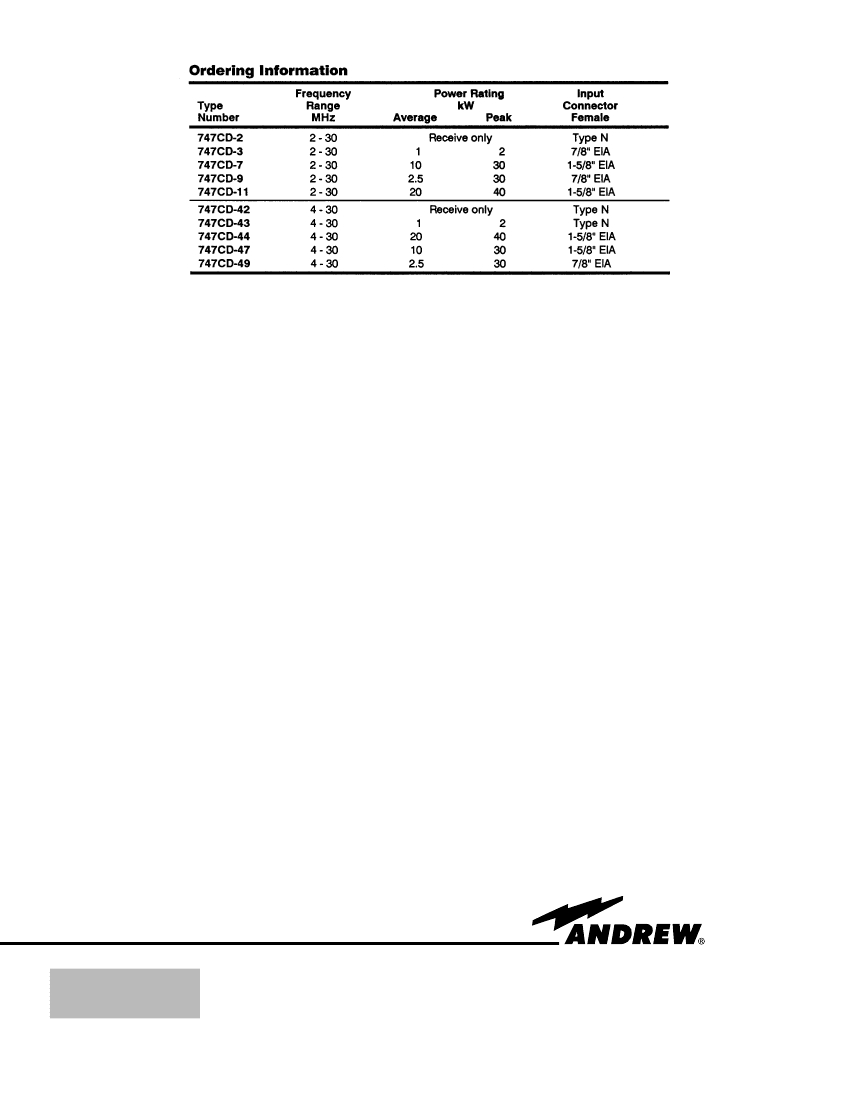

747CD-44 Related Products

747CD-44 747CD-11 747CD-2 747CD-47 747CD-9 747CD-43 747CD-42 747CD-49 747CD-3 747CD-7
Description Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 2MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 2MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 2MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 4MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 2MHz Min, 30MHz Max, 60deg 3dB Beamwidth Yagi Antenna, 2MHz Min, 30MHz Max, 60deg 3dB Beamwidth
Maker CommScope Inc CommScope Inc CommScope Inc CommScope Inc CommScope Inc CommScope Inc CommScope Inc CommScope Inc CommScope Inc CommScope Inc
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
Beamwidth-H 60 deg 60 deg 60 deg 60 deg 60 deg 60 deg 60 deg 60 deg 60 deg 60 deg
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Omnidirectional NO NO NO NO NO NO NO NO NO NO
Maximum operating frequency 30 MHz 30 MHz 30 MHz 30 MHz 30 MHz 30 MHz 30 MHz 30 MHz 30 MHz 30 MHz
Minimum operating frequency 4 MHz 2 MHz 2 MHz 4 MHz 2 MHz 4 MHz 4 MHz 4 MHz 2 MHz 2 MHz
polarization LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL LINEAR HORIZONTAL
RF/Microwave Device Types YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA YAGI ANTENNA
Maximum voltage standing wave ratio 2 2.5 2.5 2 2.5 2 2 2 2.5 2.5
Commentary 100 mph 100 mph 100 mph 100 mph 100 mph 100 mph 100 mph 100 mph 100 mph 100 mph
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Maximum transmission power 20000 W 20000 W - 10000 W 2500 W 1000 W - 2500 W 1000 W 10000 W
