PR
E
CI

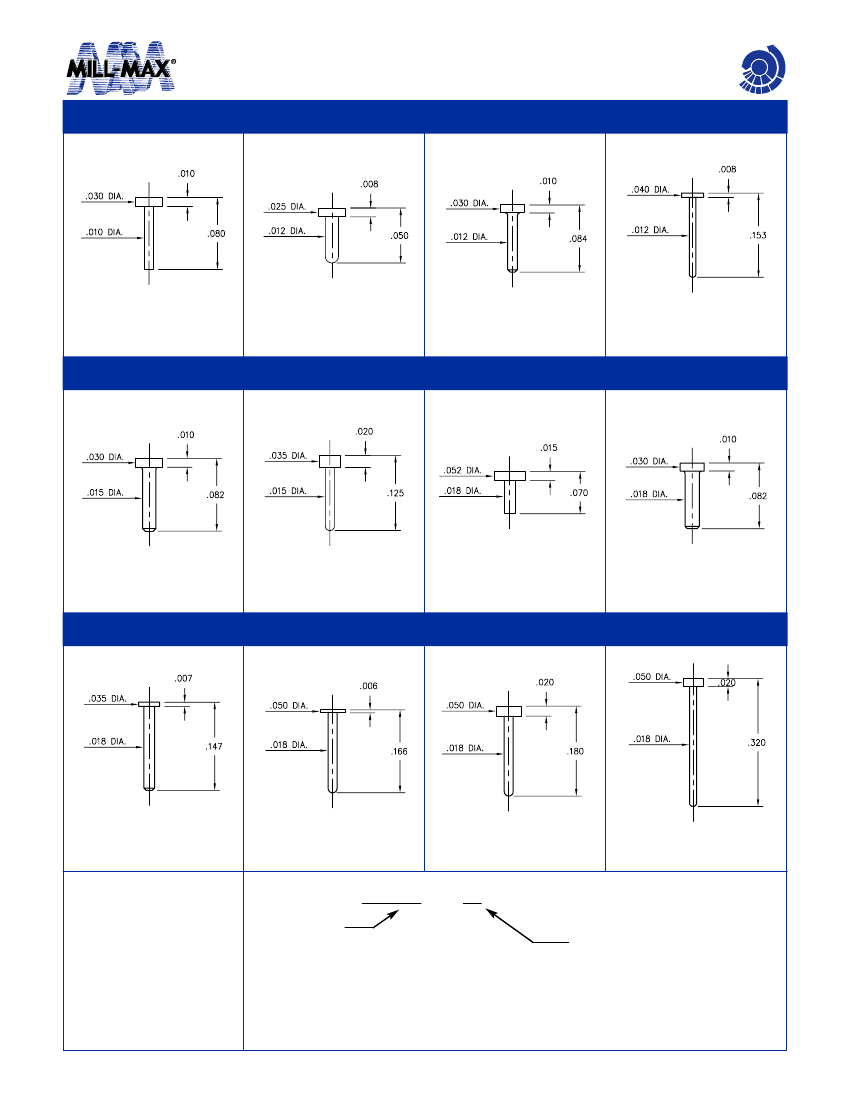

PRINTED CIRCUIT PINS
Nail Head Type
M
ON
S
I
CHI
A
PINS
NE
D
4184
9050
4353
9083
4184-0-00-XX-00-00-03-0
Solder mount in .014 mounting hole
9050-0-00-XX-00-00-03-0
Solder mount in .016 mounting hole
4353-0-00-XX-00-00-03-0
Solder mount in .016 mounting hole
9083-0-00-XX-00-00-03-0
Solder mount in .016 mounting hole
4825
4689
4361
4288
4825-0-00-XX-00-00-03-0
Solder mount in .019 mounting hole
4689-0-00-XX-00-00-03-0
Solder mount in .019 mounting hole
4361-0-00-XX-00-00-03-0
Solder mount in .022 mounting hole
4288-0-00-XX-00-00-03-0
Solder mount in .022 mounting hole
4068
9113
9137
5137
4068-0-00-XX-00-00-03-0
Solder mount in .022 mounting hole
9113-0-00-XX-00-00-03-0
Solder mount in .022 mounting hole
9137-0-00-XX-00-00-03-0
Solder mount in .022 mounting hole
5137-0-00-XX-00-00-03-0
Solder mount in .022 mounting hole
SPECIFICATIONS
PIN MATERIAL:
Brass Alloy 360, 1/2 Hard
(Except where noted)
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 00 - XX - 00 - 00 - 03 - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
21
20µ"
GOLD OVER
NICKEL
34
50µ"
GOLD OVER
NICKEL
w w w. m i l l - m a x . c o m
165.1
516-922-6000
