71998-406 datasheet, PDF - EEWORLD Datasheet

71998-406: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Blue Insulator,; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

71998-406 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Blue Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	306951512
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.05
body width	0.2 inch
subject depth	0.276 inch
body length	0.597 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLUE
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e0
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	197u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12

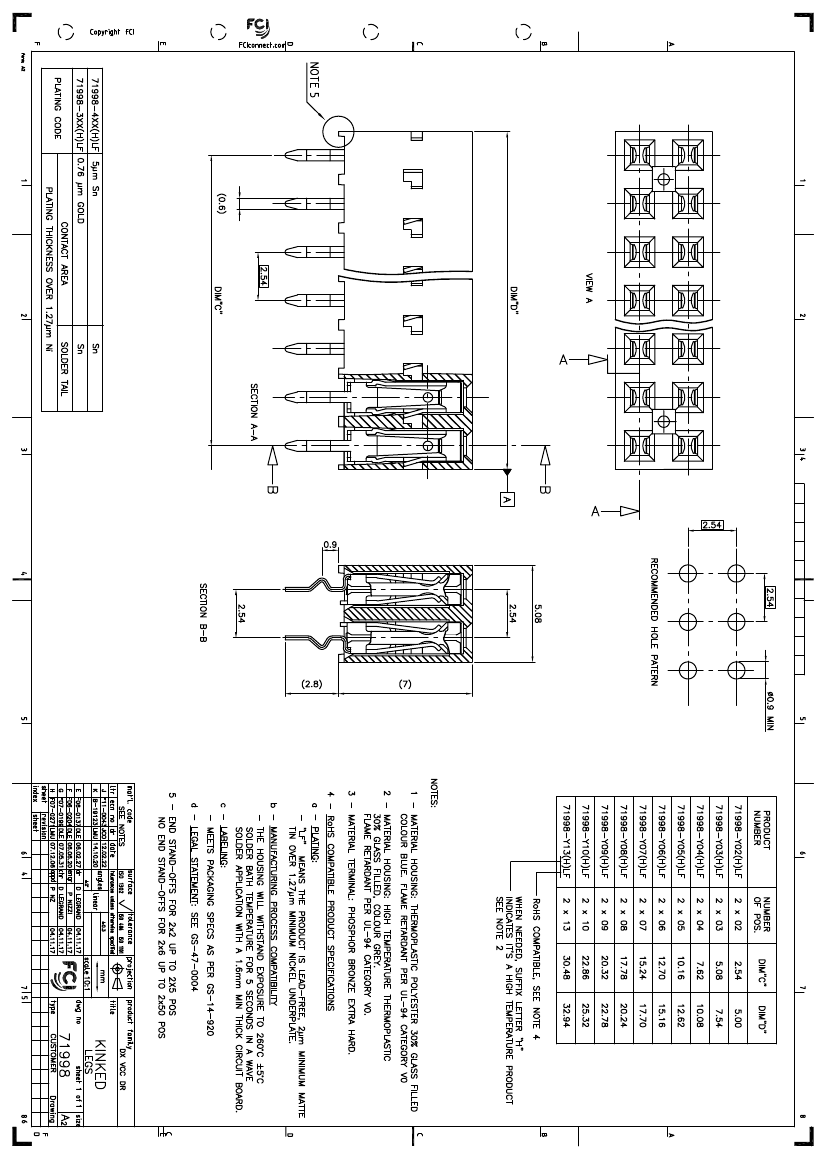

PDS: Rev :K

STATUS:Released

Printed: Oct 29, 2014
