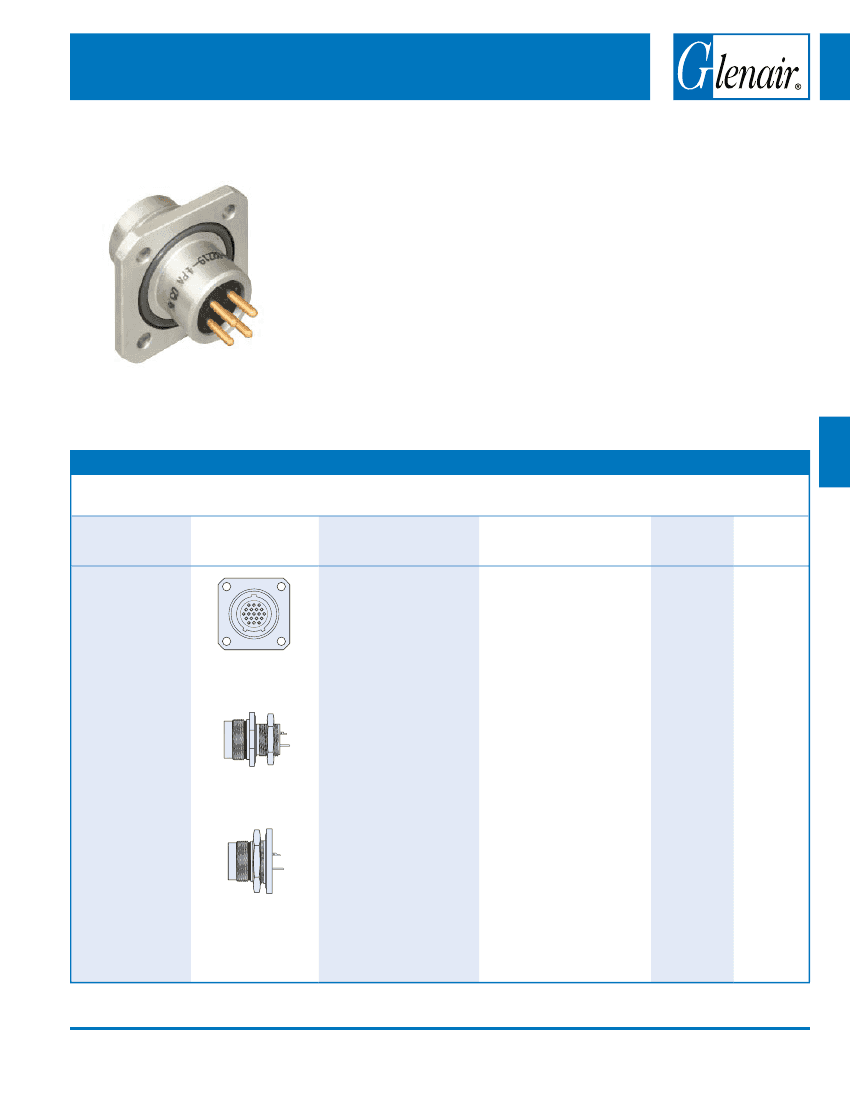

Series 802 “Aqua Mouse”

3500 PSI Rated

Series 802 Receptacles for PCB or Solder Cup

Series 802 PCB/Solder Receptacles

feature gold-plated tails for solder

termination to rigid or ﬂexible circuits

or solder cups for attaching wire.

Contacts are non-removable.

316 series

Stainless Steel

Shells

and

Viton

O-rings

for

excellent performance in corrosive

environments.

Epoxy Sealed

to prevent water

ingress in "open face" condition.

Viton

o-ring provides sealing to 3500

PSI hydrostatic pressure when mated.

Open face (unmated) pressure rating

is 1 meter immersion for one hour.

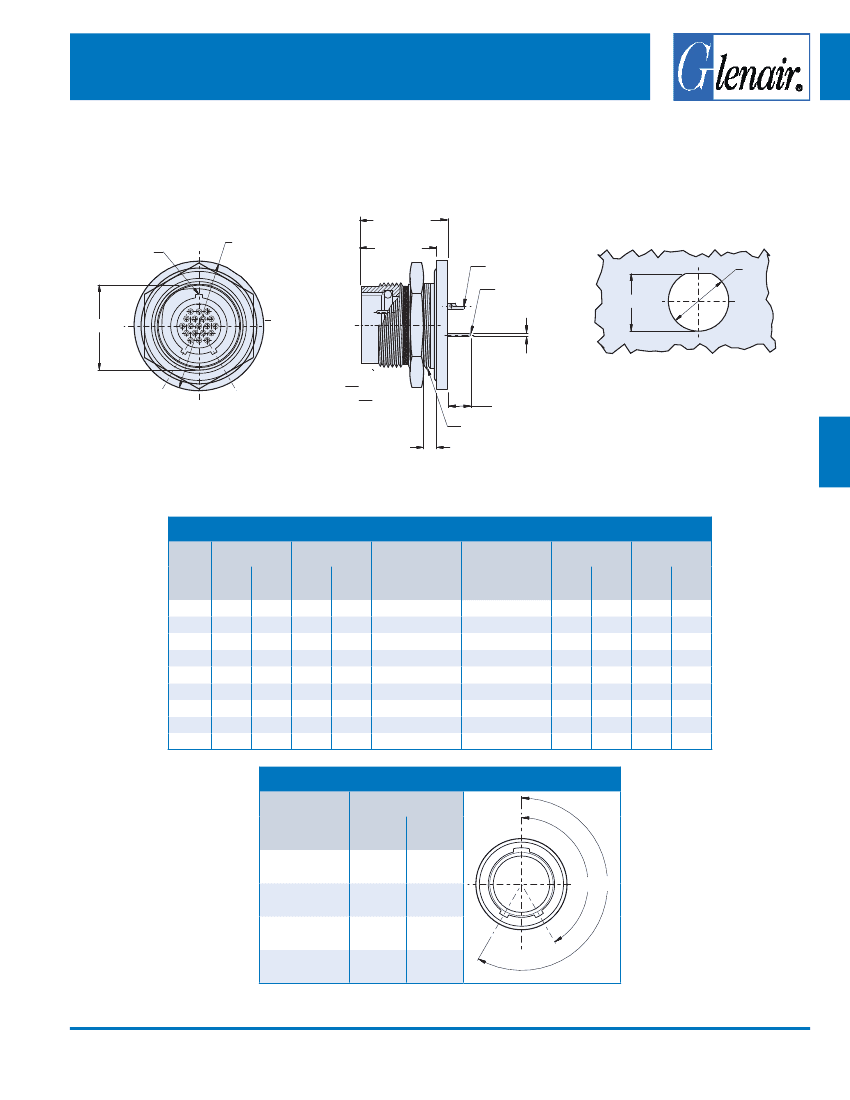

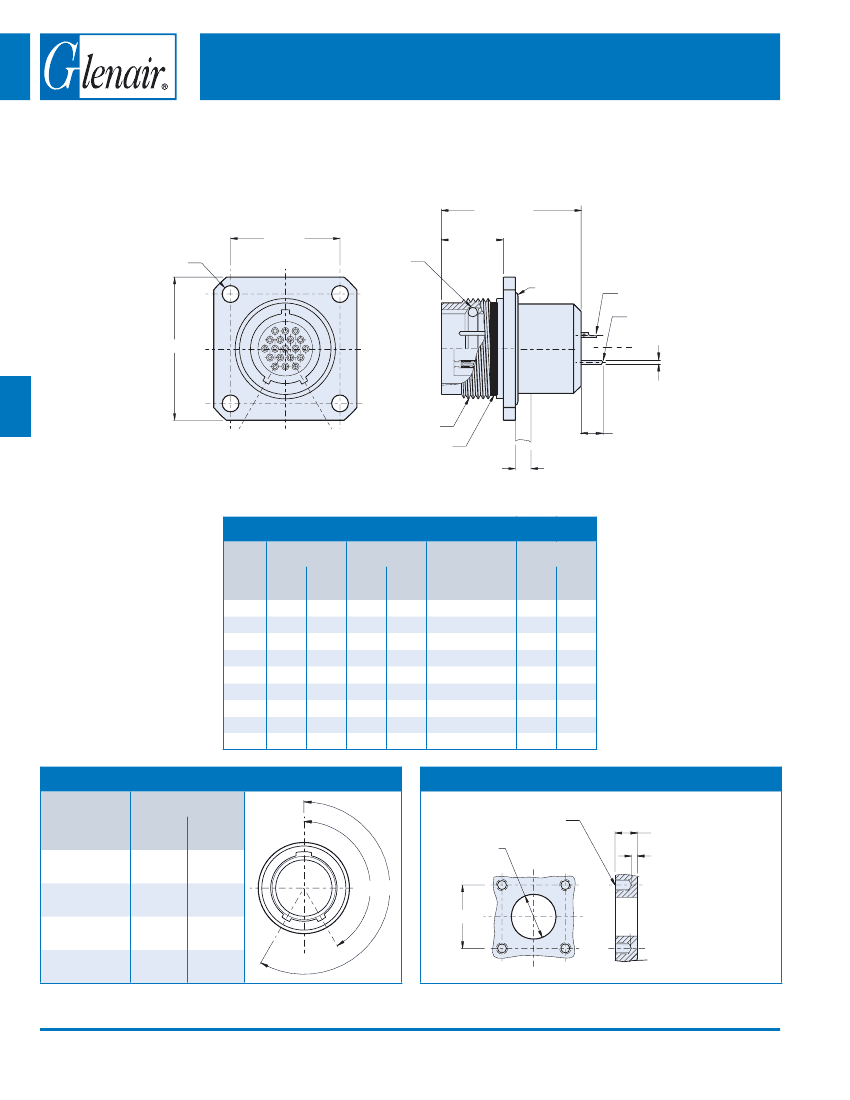

Square Flange Receptacle

with 4 #16 PCB Contacts

(Layout 9-4)

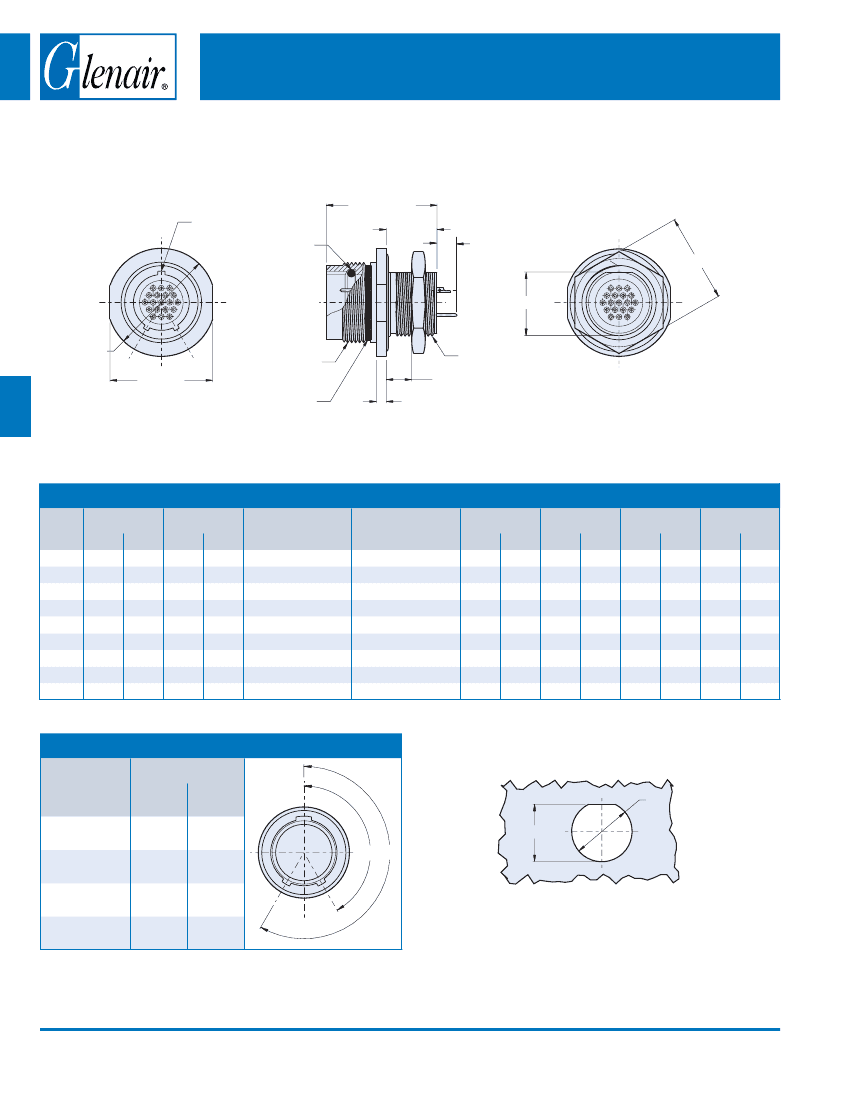

Three Shell Styles:

jam nut with o-

ring for rear panel mounting, jam nut

with o-ring for front panel mounting, or

square ﬂange for front panel mounting.

HOW TO ORDER SERIES 802 PCB / SOLDER CUP RECEPTACLES

Sample Part Number

802-012

Series

802-012

Receptacle with

Solder Cup or PCB

Contacts

-00

Shell Style

Shell Material / Finish

Stainless Steel /

Passivated

6-1

Shell Size- Insert

Arrangement

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

3 #23 Contacts

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

37 #23 Contacts

55 #23 Contacts

85 #23 Contacts

Contact

Type

Pin, PC Tail

Shell Key

Position

Normal

Socket, PC

Tail

Pos. B

-02

Square Flange

Stainless Steel /

Electroless Nickel Plated

Pin, Solder

Cup

Pos. C

Pos. D

-00

Jam Nut for Front

Panel Mounting

Socket,

Solder Cup

-07

Jam Nut for Rear

Panel Mounting

CAGE Code 06324
