Part Number

Search

8-316614-0

Description
HEADER CONNECTOR,PCB MNT,RECEPT,80 CONTACTS,PIN,0.02 PITCH
CategoryThe connector    The connector
File Size26KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com

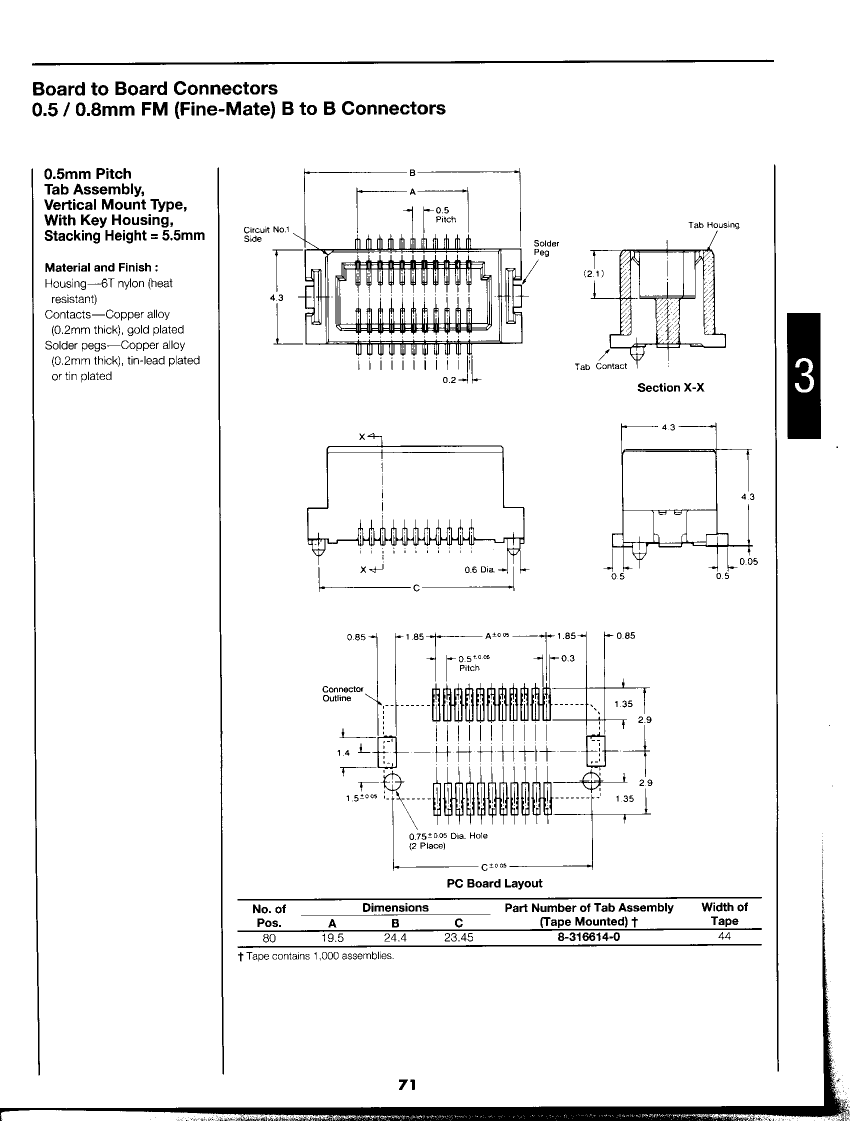

Download Datasheet Parametric View All

8-316614-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,80 CONTACTS,PIN,0.02 PITCH

8-316614-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Other featuresWITH TAPE AND REEL PACKAGING
Board mount optionsLOCATING POSTS
body width0.169 inch
subject depth0.171 inch
body length0.961 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
insulator materialNYLON
Manufacturer's serial number316614
Plug contact pitch0.02 inch
Installation methodSTRAIGHT
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing4.445 mm
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Total number of contacts80
Base Number Matches1
