N74LV14PWDH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74LV14PWDH

N74LV14PWDH: DescriptionIC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate; Categorylogic logic; File Size187KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

N74LV14PWDH Overview

IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate

N74LV14PWDH Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	28 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

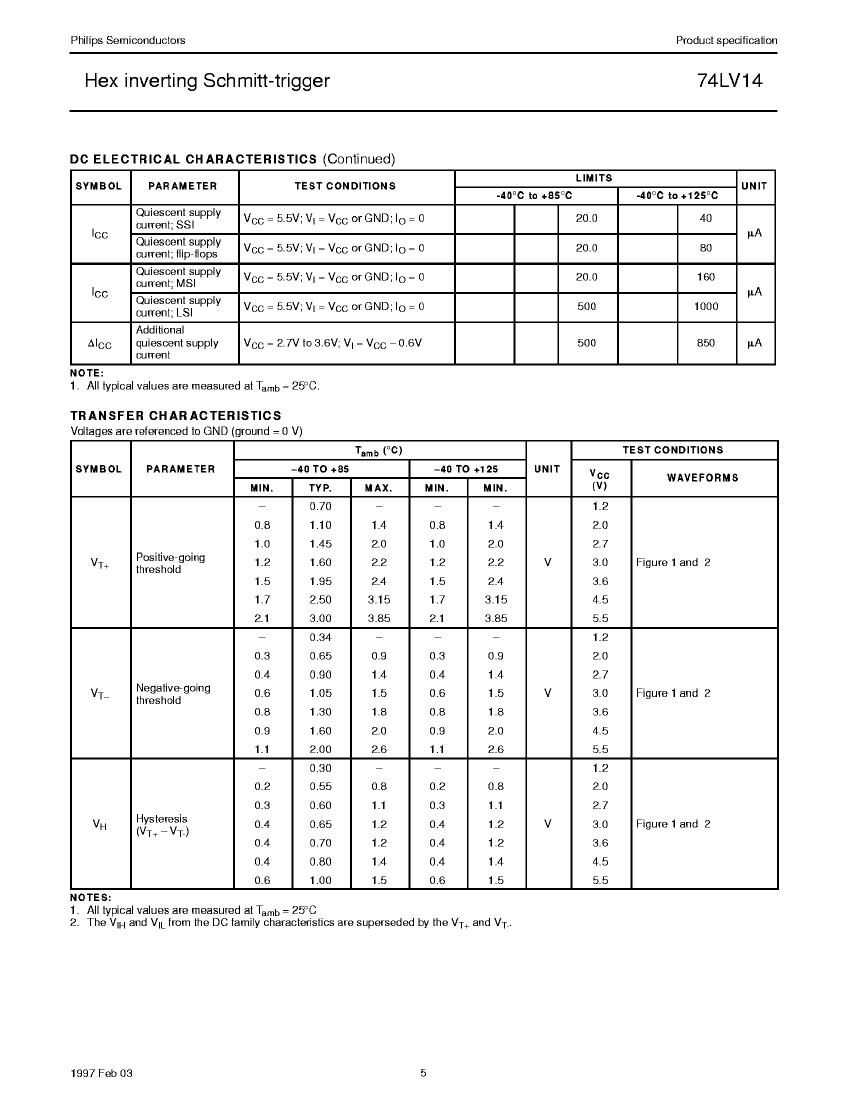

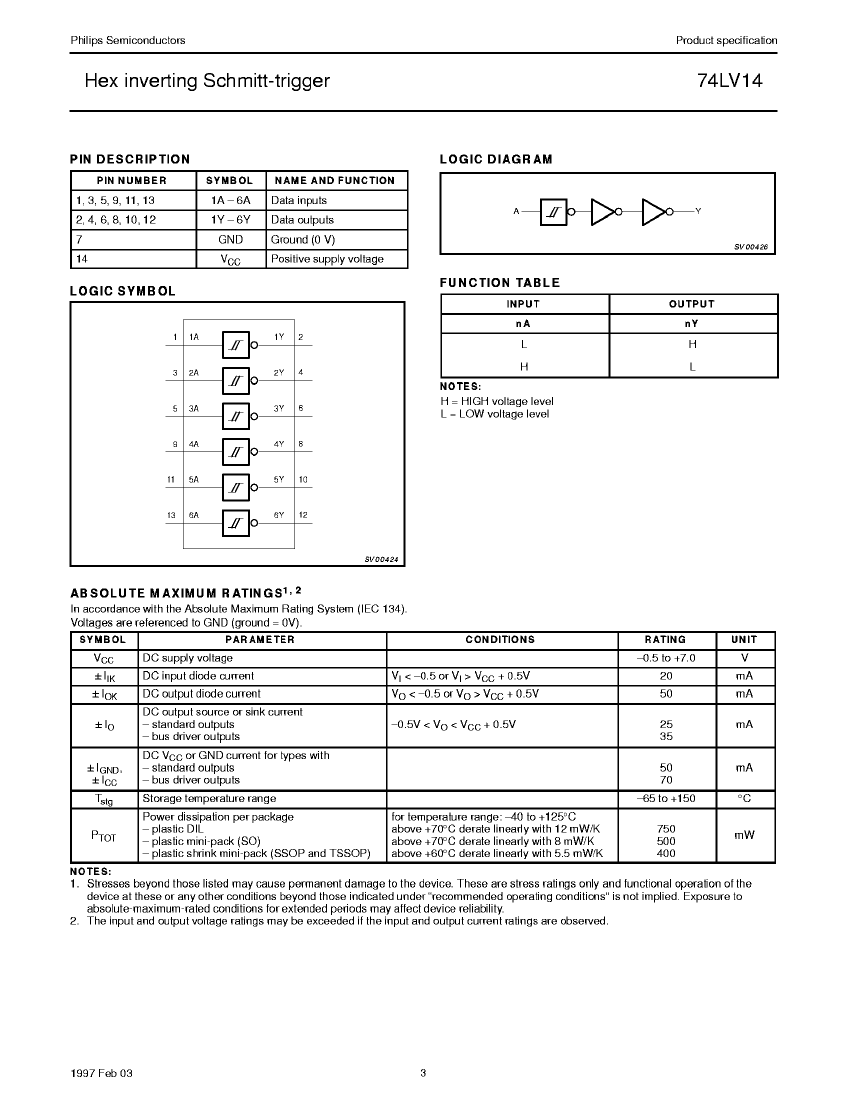

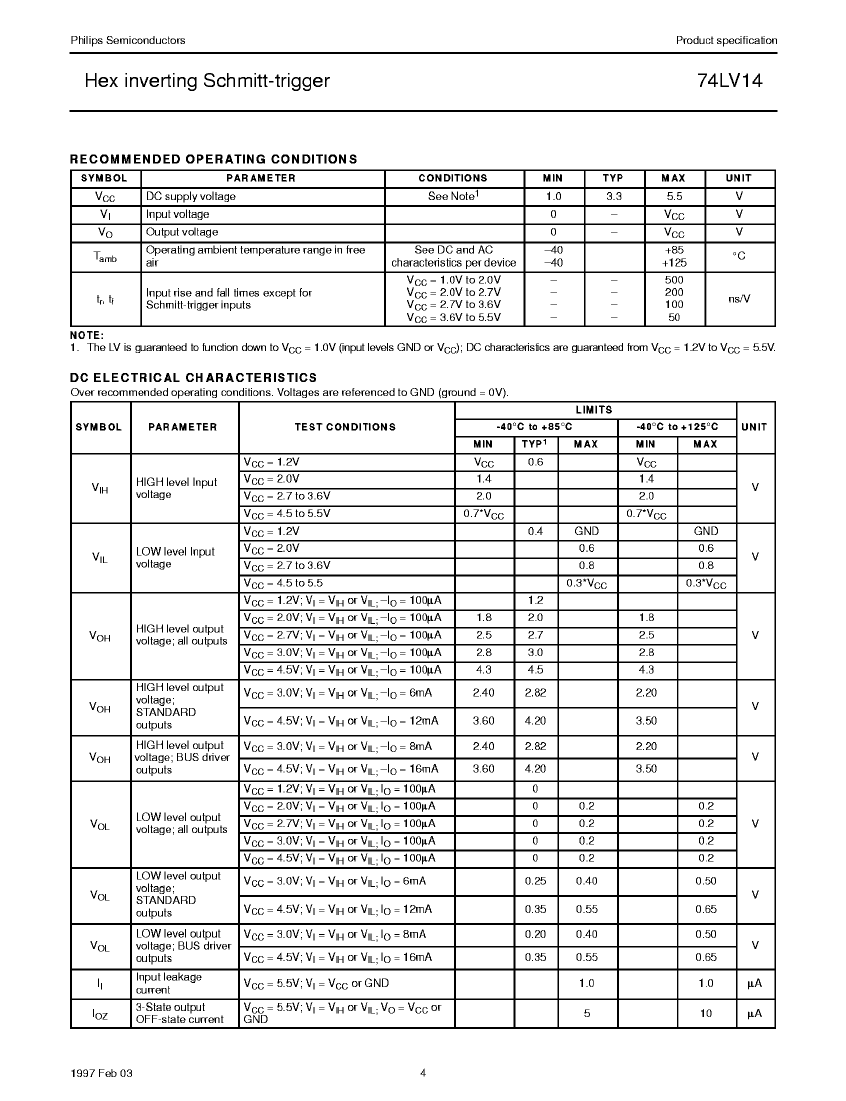

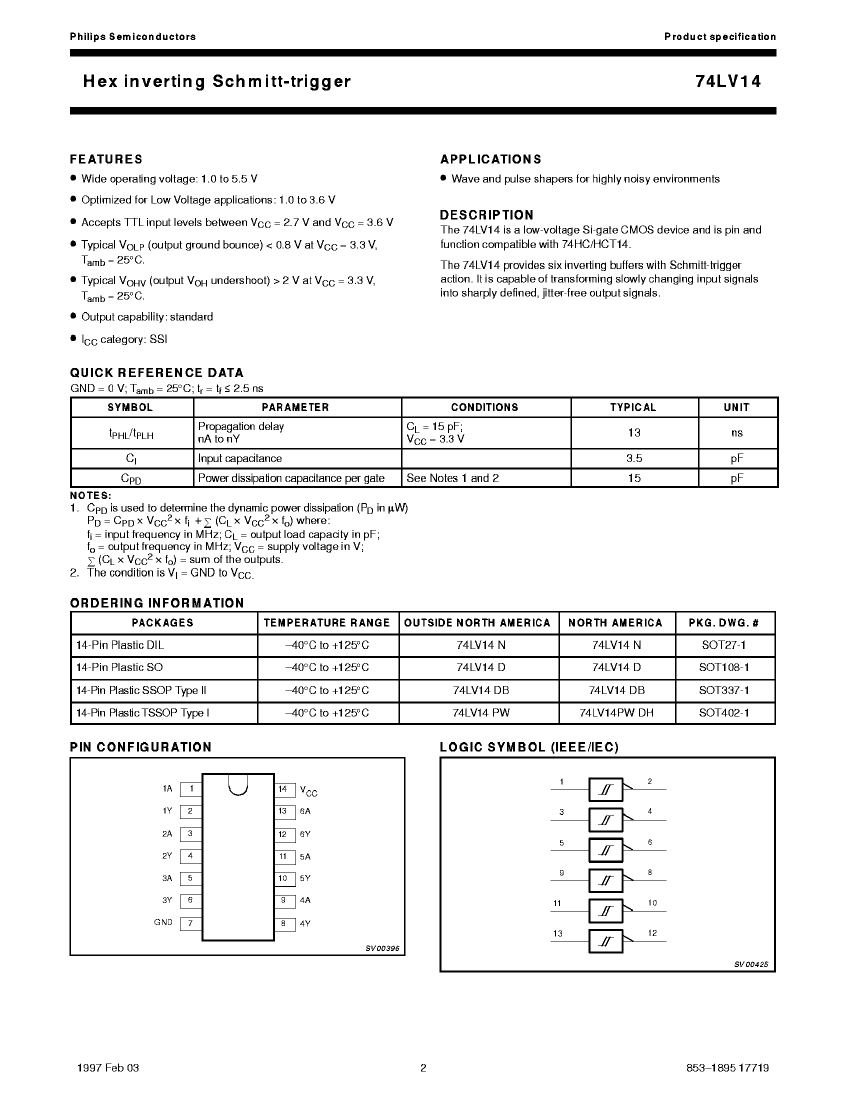

Preview

Download Datasheet

View All

N74LV14PWDH Related Products

	N74LV14PWDH	N74LV14DB-T	N74LV14D-T	WBDDQSC-B-03-1843-D-B	N74LV14D	N74LV14PWDH-T	N74LV14DB	N74LV14N	N74LV14PW
Description	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate	Array/Network Resistor, Bussed, 0.05W, 184000ohm, 100V, 0.5% +/-Tol, -25,25ppm/Cel, 1109,	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate	LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDIP14	IC LV/LV-A/LVX/H SERIES, HEX 1-INPUT INVERT GATE, PDSO14, Gate
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown	unknown	unknown	unknown
series	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H	WBC-NETWORK	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H
Number of terminals	14	14	14	24	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	150 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMT	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Maker	NXP	NXP	NXP	-	NXP	NXP	NXP	NXP	NXP
package instruction	TSSOP,	SSOP,	SOP,	-	SOP,	TSSOP,	SSOP,	DIP,	TSSOP,
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	-	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
length	5 mm	6.2 mm	8.65 mm	-	8.65 mm	5 mm	6.2 mm	19.025 mm	5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	-	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	-	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	-	6	6	6	6	6
Number of entries	1	1	1	-	1	1	1	1	1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP	-	SOP	TSSOP	SSOP	DIP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
propagation delay (tpd)	28 ns	28 ns	28 ns	-	28 ns	28 ns	28 ns	28 ns	28 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2 mm	1.75 mm	-	1.75 mm	1.1 mm	2 mm	4.2 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1 V	1 V	1 V	-	1 V	1 V	1 V	1 V	1 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	-	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	-	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	-	1.27 mm	0.65 mm	0.65 mm	2.54 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	5.3 mm	3.9 mm	-	3.9 mm	4.4 mm	5.3 mm	7.62 mm	4.4 mm
Base Number Matches	1	1	1	-	1	1	1	1	1
