8828370000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8828370000

8828370000: DescriptionPower/Signal Relay, DPDT, Momentary, 0.004A (Coil), 110VDC (Coil), 500mW (Coil), DC Input, AC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size193KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8828370000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8828370000	-	-	View	Buy Now

8828370000 Overview

Power/Signal Relay, DPDT, Momentary, 0.004A (Coil), 110VDC (Coil), 500mW (Coil), DC Input, AC Output, Through Hole-Straight Mount,

8828370000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks 1 day
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.004 A
Coil operating voltage (DC)	77 V
Coil power	500 mW
Coil release voltage (DC)	11 V
Coil resistance	26600 Ω
Maximum coil voltage (DC)	110 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	8A@250VAC
Maximum contact current (AC)	8 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.7mm x 15.7mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	2 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Relays - RIDERSERIES

Digital signalling

RCL relay

2 CO contact AC/DC coil

• 2000 VA switching capacity

• Low height of 15.7 mm

• Hard gold-plated contacts available

• For domestic appliances, heating controllers, emergency

lighting systems, modems

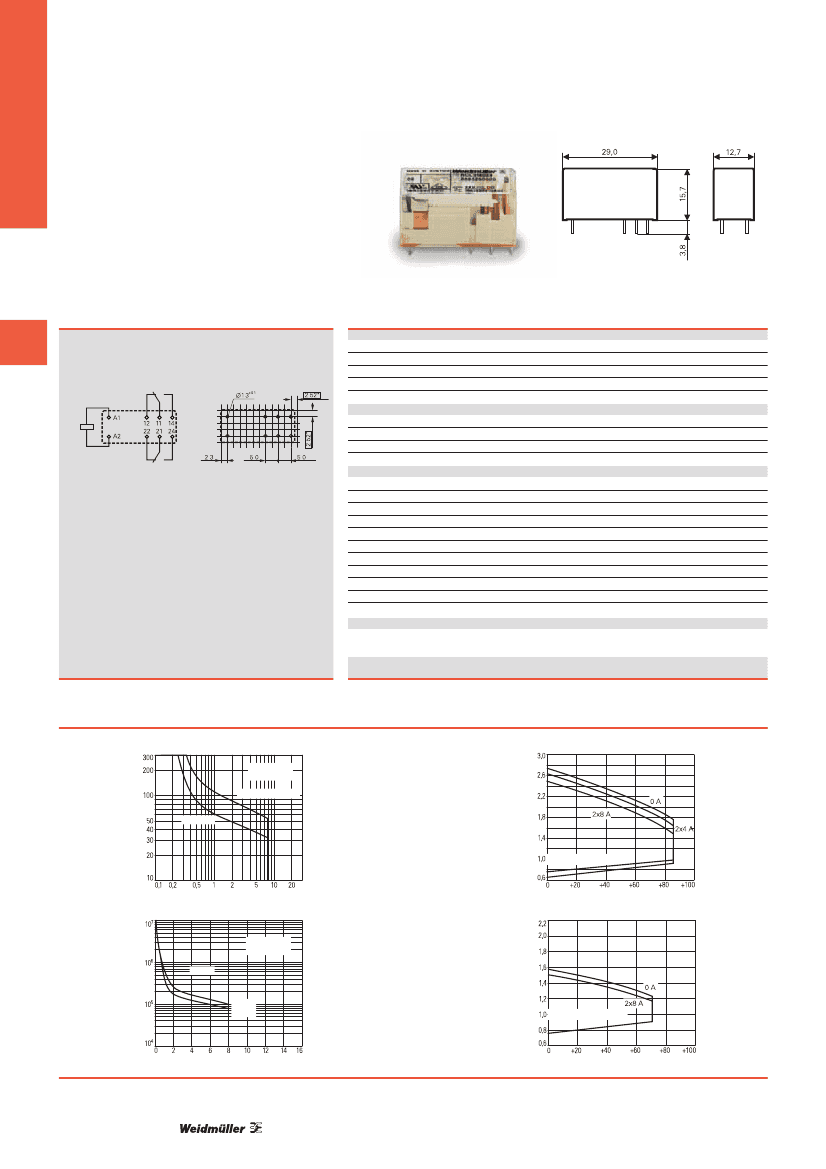

Circuit diagram

View of connections

Dimensions in mm

2 C/O changeover contacts

Output

max. switching voltage AC1

Continuous current

Contact base material

Mechanical endurance

Response time / Drop-out time

Rated data

Status indicator/Free wheel diode

Operating temperature

UL 94 flammability rating

Approvals

Insulation coordination (IEC 60664)

Rated voltage

Creepage and clearance path input - output

Surge category

Pollution severity

Protective separation to VDE 0106 part 101

250 V

8 A / 1 contact

AgNi 90/10 or AgNi 5µm Au

AC coil 5*10

/ DC coil 30*10

switching operations

7ms / 2ms

no/no

-40 °C…+70 °C

V-0

cURus; VDE;

250 V

10 mm

III

yes

Dimensions

Length x width x height

Note

29 / 12.7 / 15.7

Applications

DC load breaking capacity

Switching

voltage [V DC]

2-pole

Resistive load

2 contacts in

series

Operating voltage range DC

Coil voltage [U/Un]

Un Rated coil voltage

1 contact

Switching

current [A]

Ambient temperature [C]

Electrical endurance

Switching

operations

250 V AC

resistive load

2x8A

Operating voltage range AC

Coil voltage [U/Un]

Un Rated coil voltage

DC coil

AC coil

Switching

current [A]

Ambient temperature [C]

C.34
