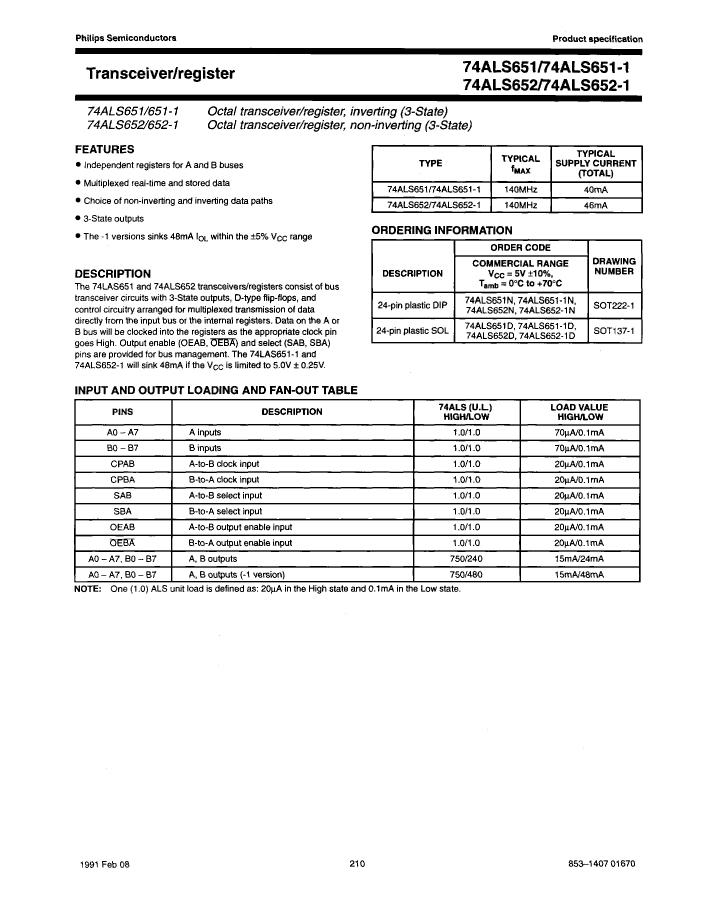

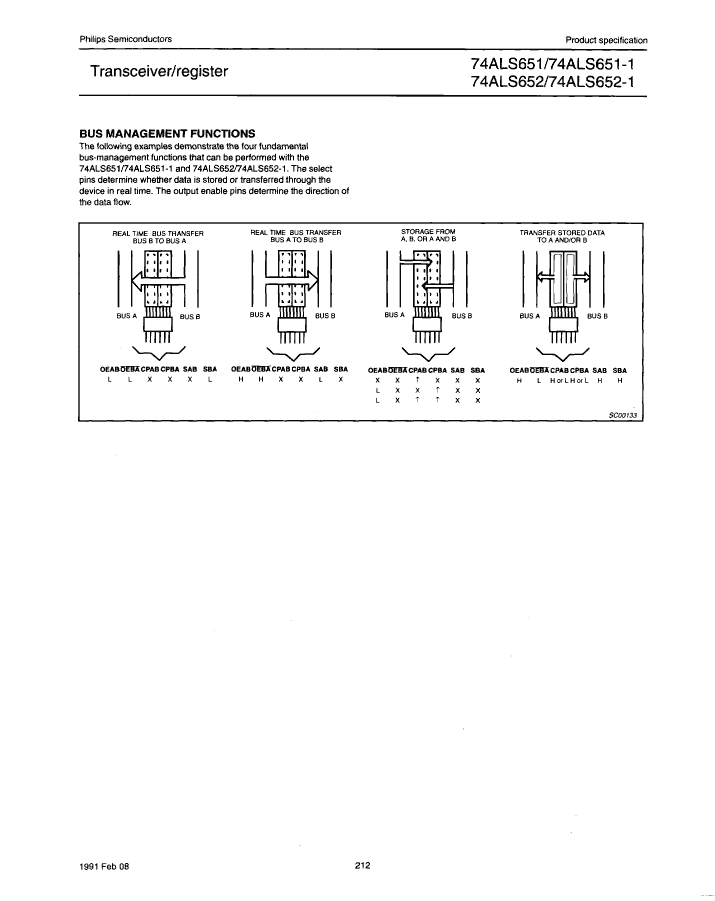

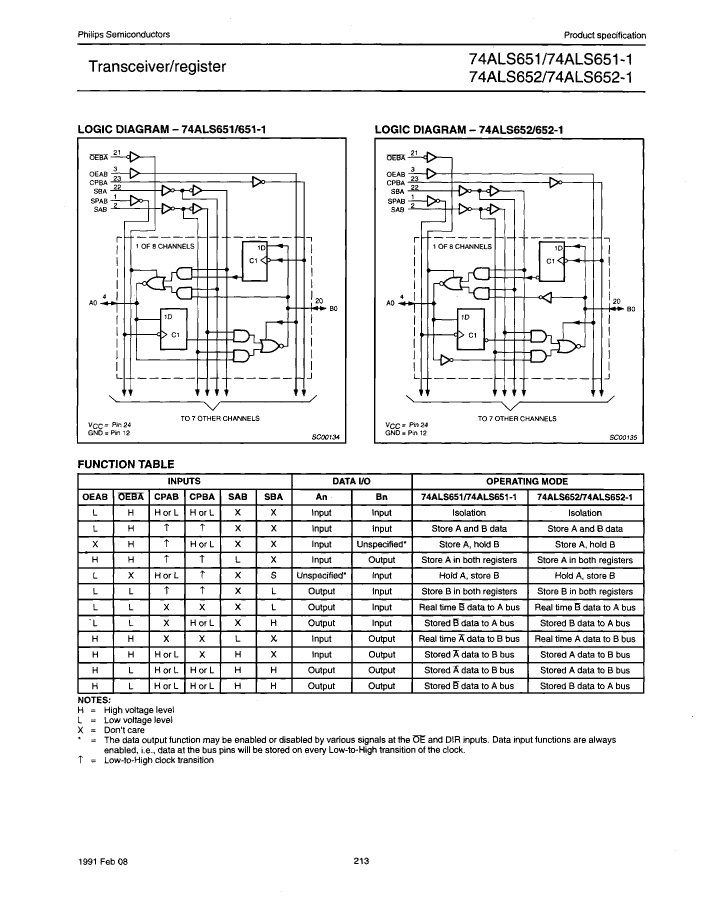

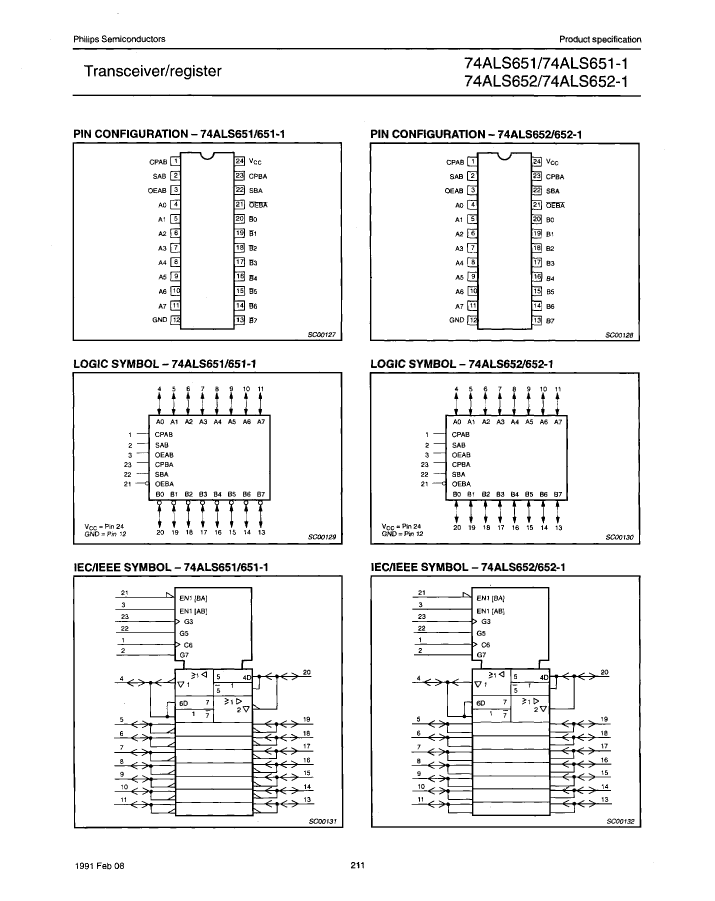

IC ALS SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO24, 7.50 MM, PLASTIC, SOL-24, Bus Driver/Transceiver

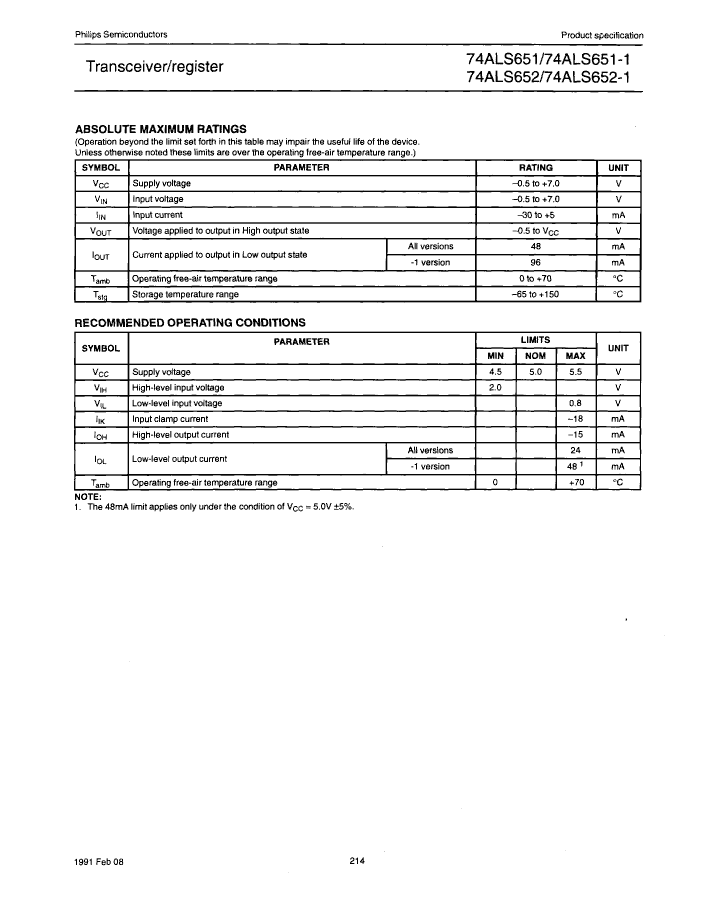

| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP24,.4 |
| Contacts | 24 |
| Reach Compliance Code | compliant |
| Other features | SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA |
| Control type | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL |
| series | ALS |
| JESD-30 code | R-PDSO-G24 |
| length | 15.4 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER |
| MaximumI(ol) | 0.048 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP24,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 68 mA |
| Prop。Delay @ Nom-Sup | 38 ns |
| propagation delay (tpd) | 13 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| translate | N/A |
| Trigger type | POSITIVE EDGE |
| width | 7.5 mm |
| Base Number Matches | 1 |
