8633ZBE3: DescriptionPUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size177KB，3 Pages; ManufacturerC&K; Environmental Compliance; Related ProductsFound20parts with similar functions to 8633ZBE3

Download Datasheet Parametric View All

8633ZBE3 Overview

PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

8633ZBE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator color	RED
Actuator length	0.175 inch
Actuator type	PLUNGER
body height	8.76 mm
Body length or diameter	6.35 mm
Nozzle length	0.125 inch
Casing type	8-40
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	500VRMS V
Electrical life	250000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
JESD-609 code	e4
Manufacturer's serial number	8633
Installation features	PANEL MOUNT-THREADED
Maximum operating force	1.37 N
Maximum operating temperature	65 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

8600 Series

Microminiature Pushbutton Switches

Features/Benefits

•

Available with overtravel

•

Normally closed models available

•

Microminiature size ideal for

applications where space is limited

Typical Applications

•

Detection

•

Telecommunications and

networking equipment

Pushbutton

•

Computers and peripherals

•

RoHS compliant

Models Available

Specifications

CONTACT RATING: Q contact material (8631, 8632 Models):

500 mA @ 120 V AC or 28 V DC; 250 mA @ 250 V AC;

(8633 Model): 250 mA @ 120 V AC or 28 V DC; 125 mA

@ 250 V AC. See page A-73 for additional ratings.

ELECTRICAL LIFE:

8631 and 8633 MODELS: 250,000 actuations at full load.

8632 MODEL: 100,000 actuations at full load.

CONTACT RESISTANCE: Below 30 mΩ typ. initial @

2-4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 500 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 65ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9.

Materials

CASE: Glass filled phenolic or diallyl phthalate (DAP), (UL94V-0).

PLUNGER: Glass filled nylon (UL94V-0), black standard.

BUSHING: Brass, nickel plated.

CONTACTS: Q contact material: Coin silver, silver plated.

See page A-73 for additional contact materials.

TERMINALS:

8631, 8632 MODELS: Copper alloy, silver plated.

8633 MODEL: Q contact material: Coin silver.

See page A-73 for additional contact materials.

TERMINAL SEAL:

8633 MODEL: Epoxy.

8631, 8632 MODELS: Terminals insert molded.

HARDWARE: Nut: Brass, nickel plated.

NOTE:

Any models supplied with Q, B or G contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages A-72 and A-73. For additional options not shown in catalog, consult Customer Service Center.

Switch Function

8631

SPST Off-Mom.

8632

SPST Off-Mom.

8633

SPST On-Mom.

Termination

Solder lug

PC Thru-hole

Contact Material

Gold

Silver

Gold over silver

Seal

No epoxy

Epoxy

Plunger Color

Black

Red

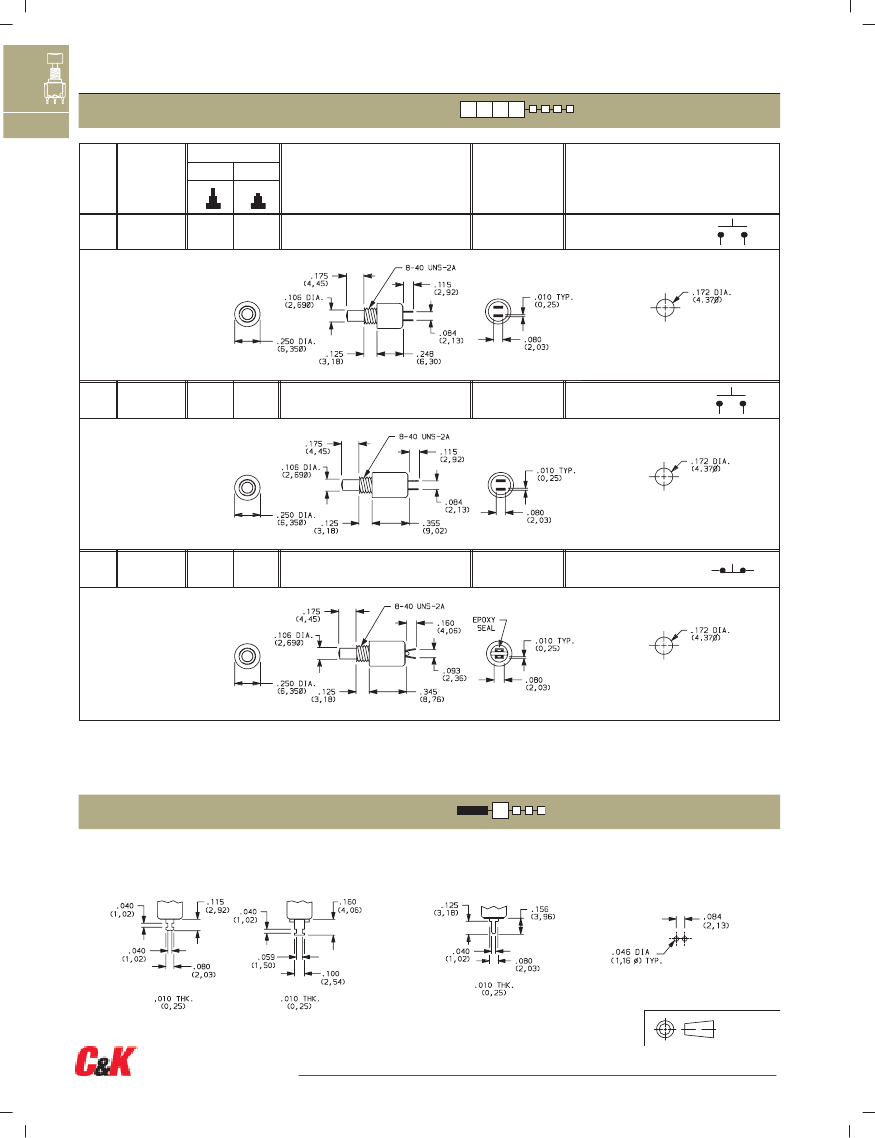

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

A-71

www.ck-components.com
