6819-7204: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

6819-7204 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

6819-7204 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.606 inch
subject depth	0.63 inch
body length	1.976 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	6819
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	4
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

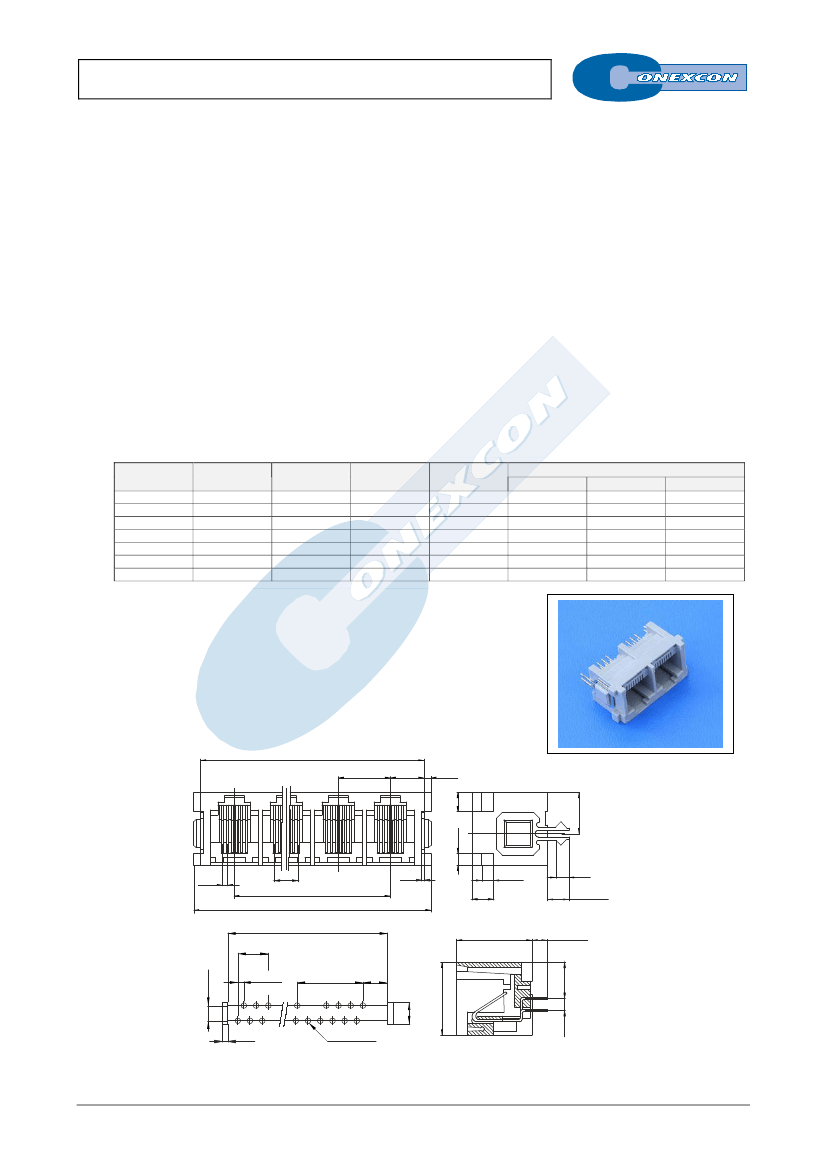

TOP ENTRY MULTIPORT PCB JACK FCC-68

6819 SERIES.

Vertical PCB jack. Metal Peg.

General Features

Electrical Features



Available in 6/2, 6/4, 6/6 and 8/8 and circuits

Standard telephone jack FCC-68

Available in 2, 3, 4, 5, 6, 7 and 8 ports

16.00 mm. height

Accept standard plugs FCC-68

Full gold plating with different plating

Metallic foot print



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.46 mm round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Dimensions

A

11.00 (0.433)

22.00 (0.866)

33.00 (1.299)

44.00 (1.732)

55.00 (2.165)

66.00 (2.598)

77.00 (3.030)

B

28.20 (1.110)

39.20 (1.543)

50.20 (1.976)

61.20 (2.410)

72.20 (2.842)

83.20 (3.275)

94.20 (3.710)

C

25.20 (0.992)

36.20 (1.425)

47.20 (1.860)

58.20 (2.290)

69.20 (2.724)

80.20 (3.157)

91.20 (3.590)

JACKS

2

3

4

5

6

7

8

6/2

6819 –

T202

6819 –

T203

6819 –

T204

6819 –

T205

6819 –

T206

6819 –

T207

6819 –

T208

6/4

6819 –

T402

6819 –

T403

6819 –

T404

6819 –

T405

6819 –

T406

6819 –

T407

6819 –

T408

6/6

6819 –

T602

6819 –

T603

6819 –

T604

6819 –

T605

6819 –

T606

6819 –

T607

6819 –

T608

8/8

6819 –

T802

6819 –

T803

6819 –

T804

-

T = Plating Options



T =

4.

10µ” gold over nickel

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

7.

50µ” gold over nickel

C

11.00

.433

7.20

.283

1.40

.055

4.00

.157

2.50

.098

1.02

.040

5.00

.197

A

B

C-1.13

C-.044

0.50

.020

4.60

.181

2.50

.098

1.65

.065

4.5±0.25

.177±.010

3.20±0.20

.126±.008

5.100

.201

1.020

.040

16.0

.630

.175

3.18

15.4

.606

11.00

.433

4.08

.161

2.54

.100

0.90

.035

0.90±0.10

.035±.004

RECOMMENDED HOLE PATTERN

E-XX

2.54

.100

7.70

.303

8.97

.353

FULL LINE CATALOGUE
