86093968115755000E2 datasheet, PDF

86093968115755000E2: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size129KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093968115755000E2 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	1600373053
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.7
body width	0.417 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	YES
Filter function	NO
IEC compliance	NO
Insulator color	GRAY
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	8609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	16u inch
polarization key	HOUSING SIDE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.518 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	96
UL Flammability Code	94V-0

PDM: Rev:B

STATUS:

Released

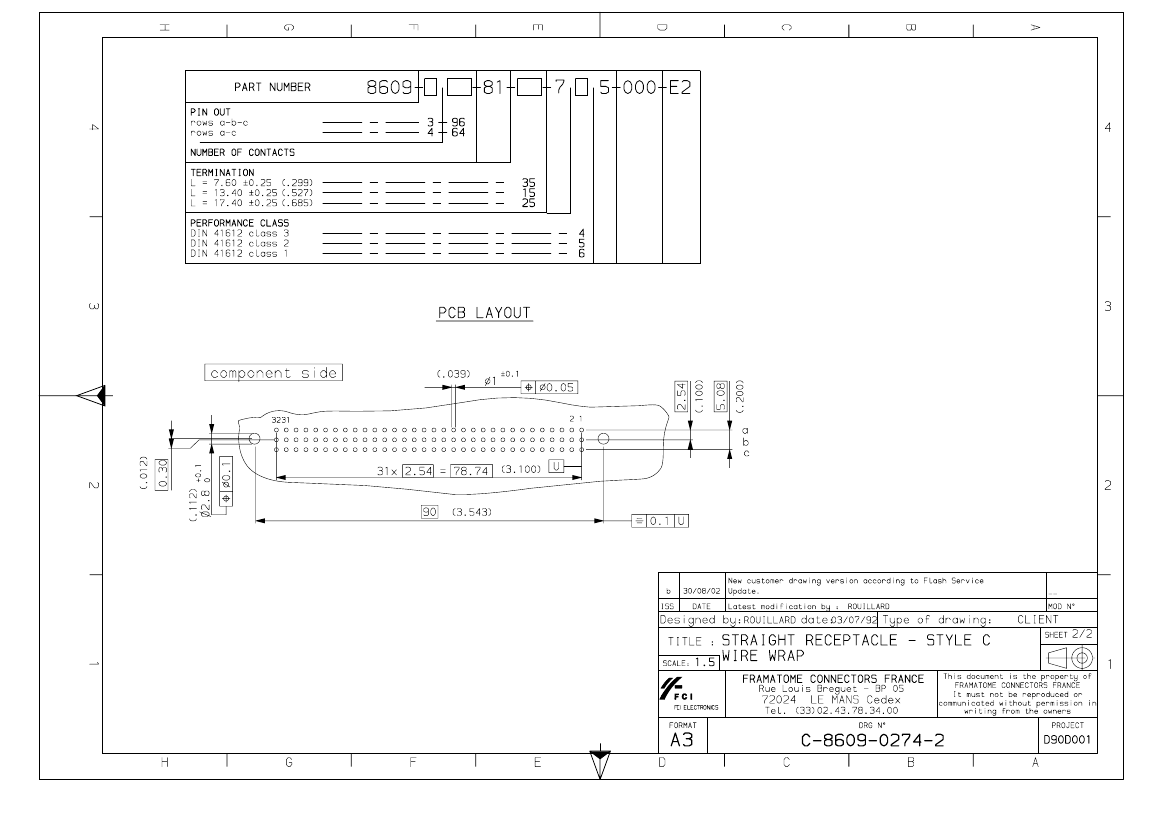

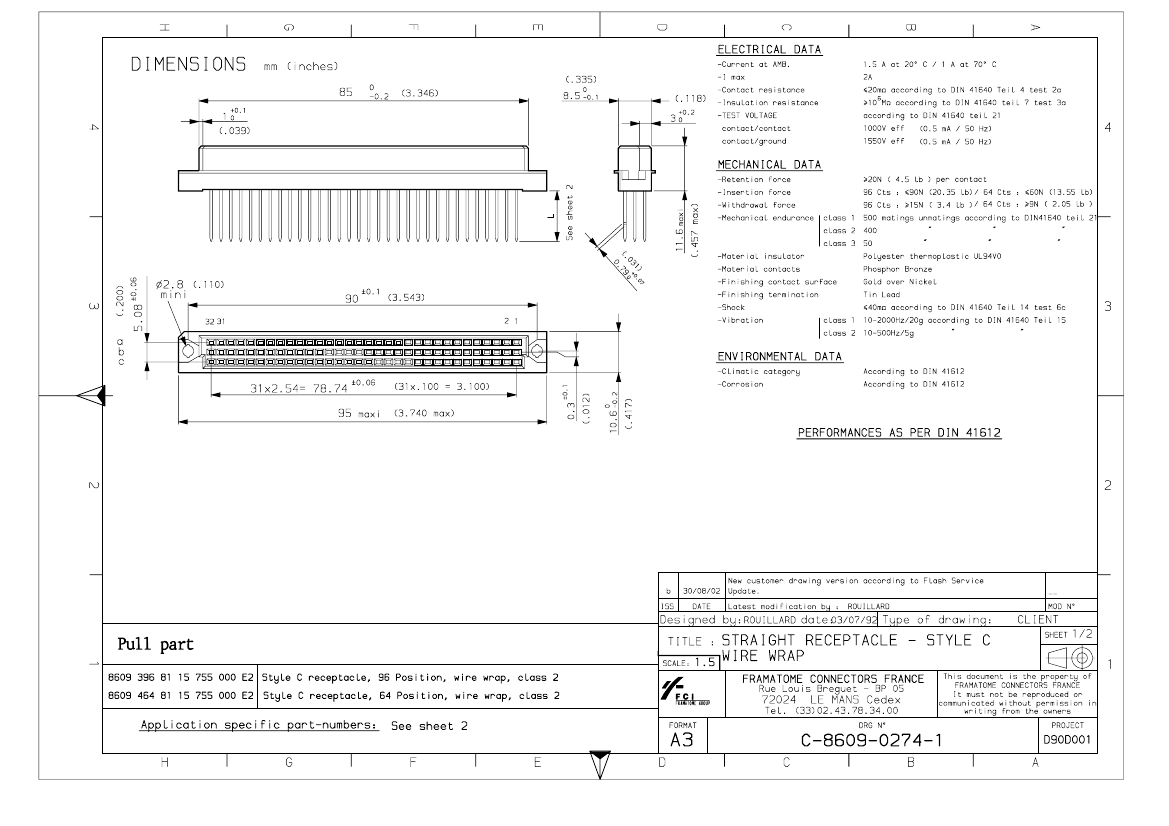

Printed: Sep 30, 2005

	86093968115755000E2	86094648115755000E2
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle,	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	8609	8609
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	3	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP
Total number of contacts	96	64
UL Flammability Code	94V-0	94V-0
