86094648813765000E2

Description
Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle
CategoryThe connector    The connector
File Size155KB，2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

86094648813765000E2 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle

86094648813765000E2 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.335 inch
subject depth0.602 inch
body length3.701 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact styleSQ PIN-SKT
DIN complianceYES
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial number8609
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,C
PCB row number3
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts64
UL Flammability Code94V-0
Base Number Matches1

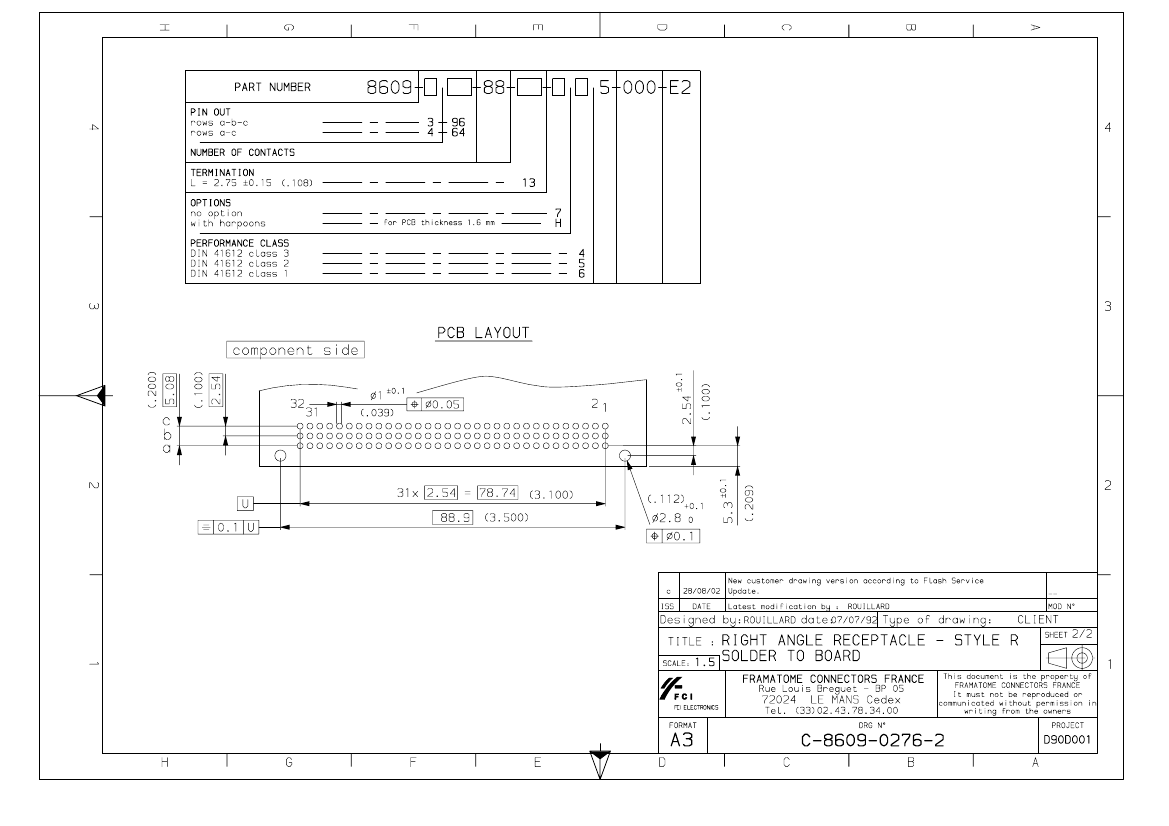

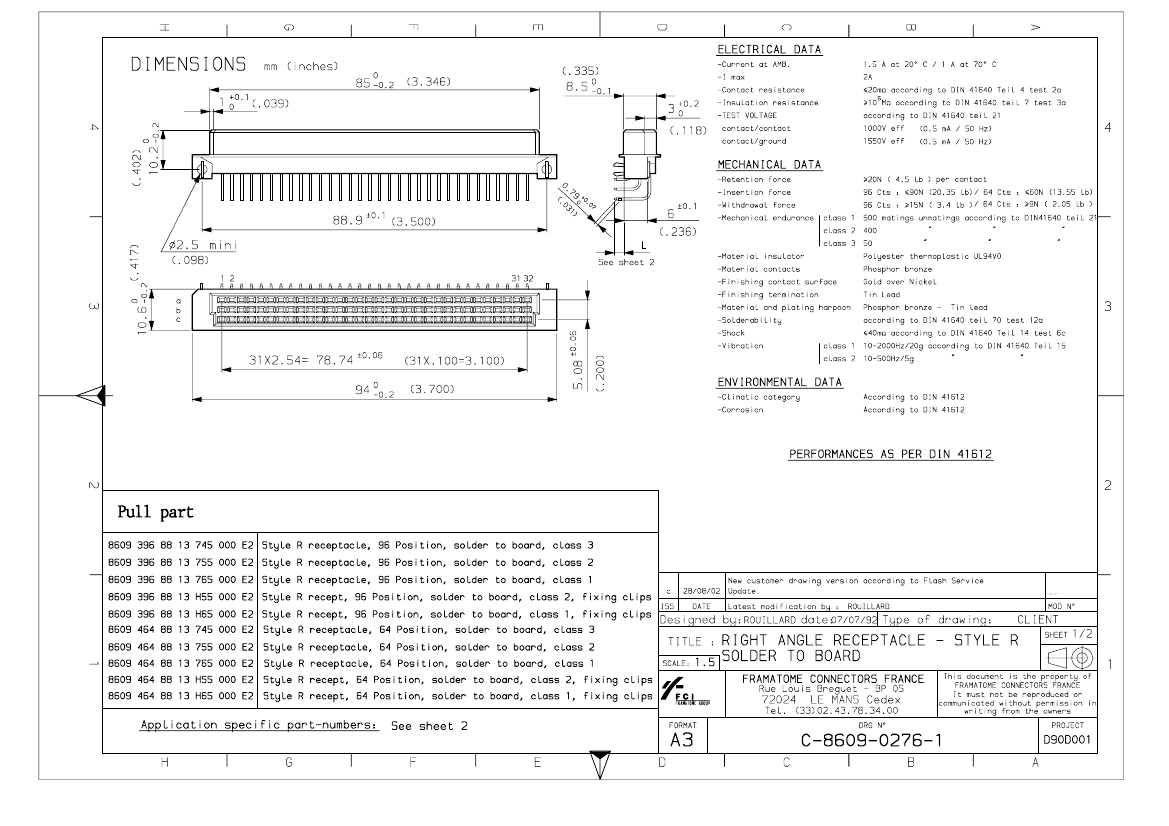

Preview

Download Datasheet
PDM: Rev:C
STATUS:
Released
Printed: Sep 29, 2005
.

86094648813765000E2 Related Products

86094648813765000E2 86094648813755000E2 86093968813755000E2 86093968813765000E2 86093968813745000E2 86093968813H55000E2 86093968813H65000E2 86094648813745000E2 86094648813H55000E2 86094648813H65000E2
Description Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance YES YES YES YES YES YES YES YES YES YES
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 3 3 3 3 3 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 64 64 96 96 96 96 96 64 64 64
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1 1 1 1
body width 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch - - 0.335 inch - -
subject depth 0.602 inch 0.602 inch 0.602 inch 0.602 inch 0.602 inch - - 0.602 inch - -
body length 3.701 inch 3.701 inch 3.701 inch 3.701 inch 3.701 inch - - 3.701 inch - -
Contact to complete cooperation AU ON NI AU ON NI AU ON NI NOT SPECIFIED AU ON NI - - AU ON NI - -
Contact completed and terminated GOLD GOLD GOLD Tin/Lead (Sn/Pb) GOLD - - GOLD - -
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE NOT SPECIFIED PHOSPHOR BRONZE - - PHOSPHOR BRONZE - -
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT - - SQ PIN-SKT - -
Insulator color GRAY GRAY GRAY GRAY GRAY - - GRAY - -
insulator material THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC - - THERMOPLASTIC - -
Manufacturer's serial number 8609 8609 - - 8609 8609 8609 8609 8609 8609
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch - - 0.1 inch - -
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch - - 0.1 inch - -
Loaded row name A,C A,C A,B,C A,B,C A,B,C - - A,C - -
PCB row number 3 3 3 3 3 - - 3 - -
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - - RECTANGULAR - -
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm - - 2.54 mm - -
Plating thickness 30u inch 16u inch 16u inch 30u inch 10u inch - - 10u inch - -
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA - - UL, CSA - -
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL - - COMMERCIAL - -
Terminal length 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch - - 0.102 inch - -
