8002002 datasheet, PDF - EEWORLD Datasheet

8002002: DescriptionBus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL; Categorylogic logic; File Size84KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

8002002 Overview

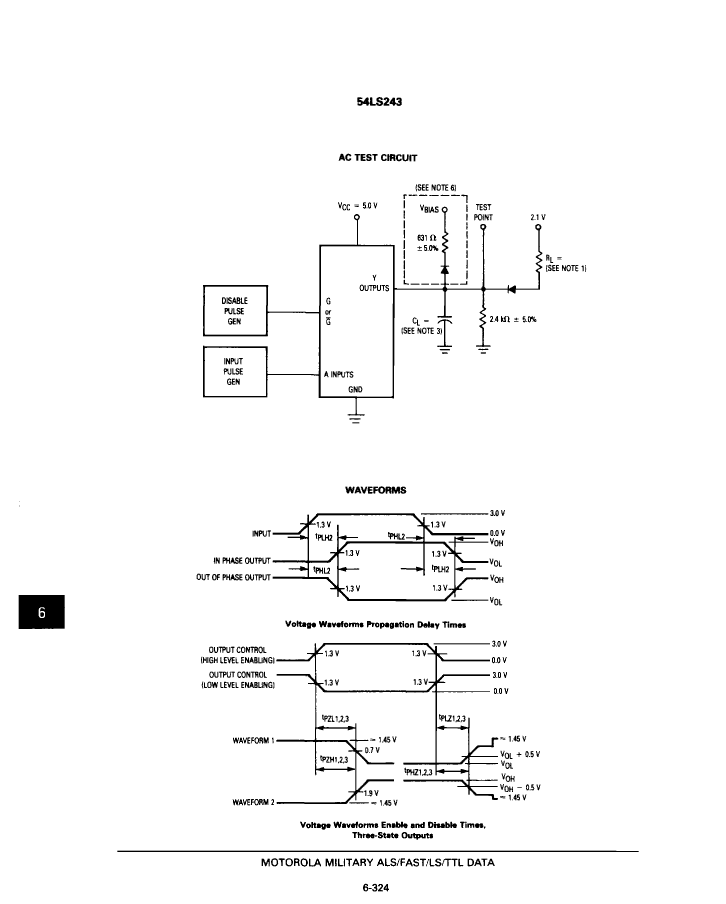

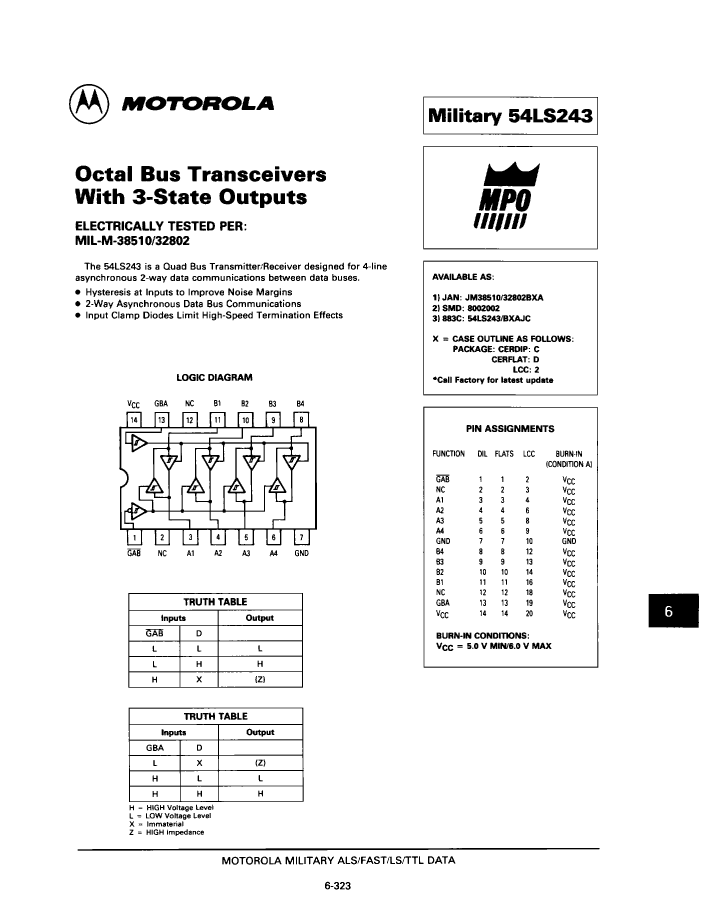

Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	,
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE

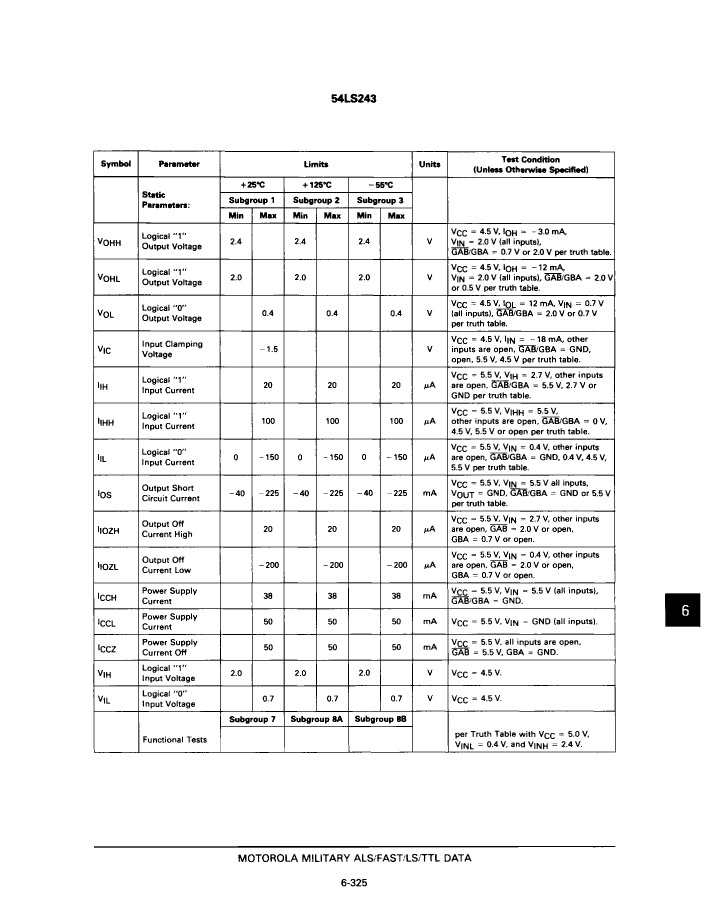

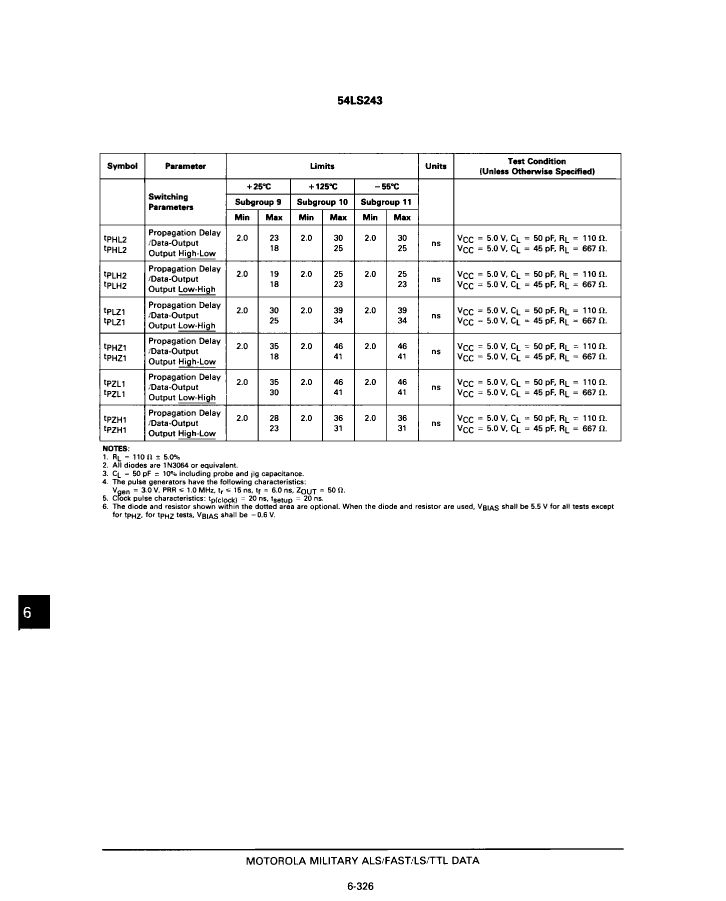

propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
technology	TTL
Temperature level	MILITARY
Base Number Matches	1

	8002002	JM38510/32802BDA	3.0SMCJ40A	JM38510/32802B2A
Description	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CDFP14, CERAMIC, FP-14	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20
Maker	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	-	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	-	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS	LS	-	LS
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	-	BUS TRANSCEIVER
Number of digits	4	4	-	4
Number of functions	1	1	-	1
Number of ports	2	2	-	2
Maximum operating temperature	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE
Output polarity	TRUE	TRUE	-	TRUE
propagation delay (tpd)	30 ns	30 ns	-	30 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V
technology	TTL	TTL	-	TTL
Temperature level	MILITARY	MILITARY	-	MILITARY
