828748-1: Description3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

828748-1 Overview

3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR

828748-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

8

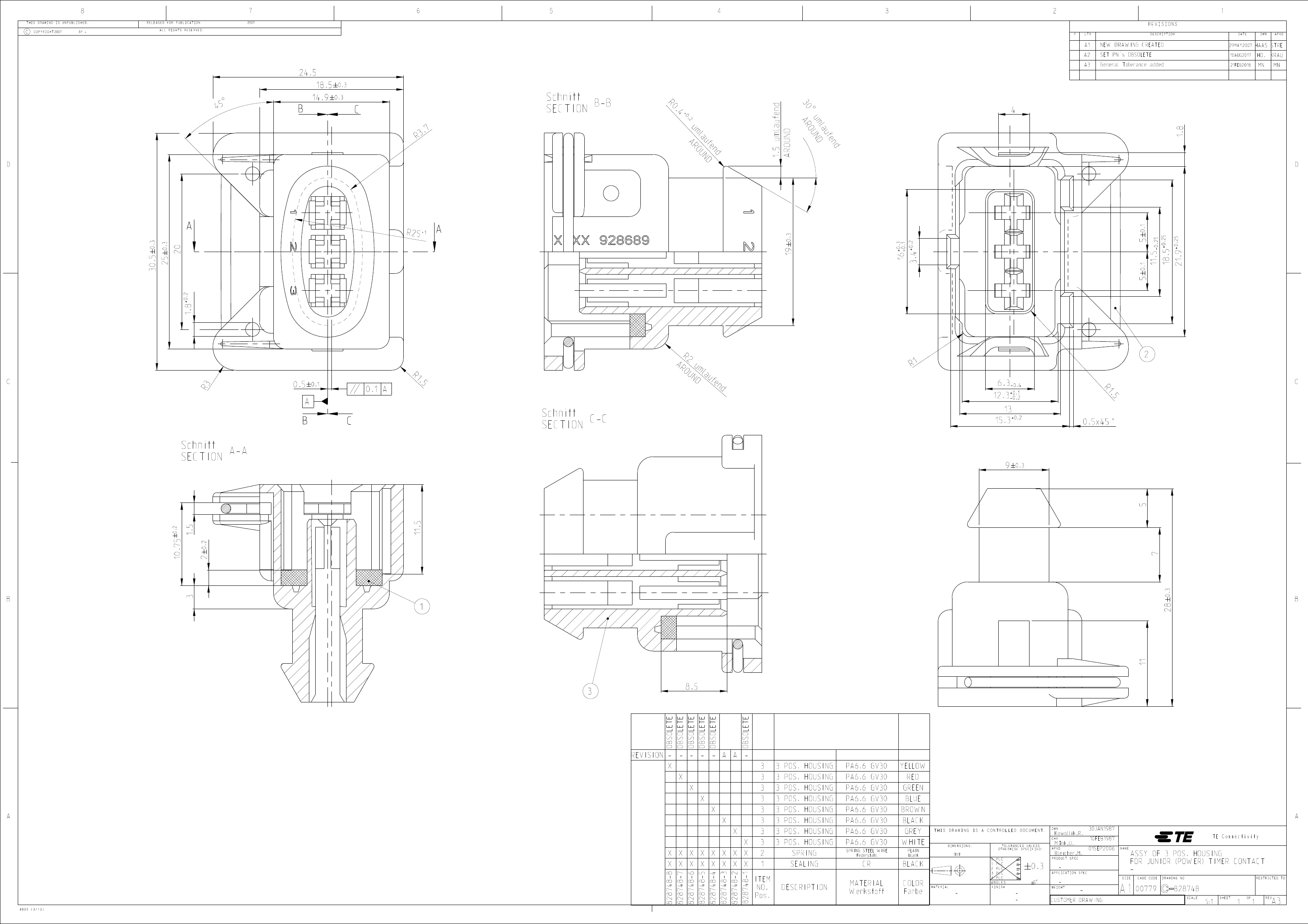

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

2007

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

2007

A1

A2

A3

NEW DRAWING CREATED

SET PN´s OBSOLETE

General Tolerance added

29MAY2007

10AUG2017

21FEB2018

HAAS STRE

HO. KRAU

MN

24.5

1.5 umlaufend

AROUND

$

45

14.9

18.5

0.3

Schnitt

B-B

SECTION

.

R3

7

30

D

1.8

30.5

+0.2

1.8

R3

C

0.5

A

0.1

R1

.5

R2

AR u

OU ml

ND au

f

R1

en

d

+0.1

12.3

-0.2

5

0.1

2

6.3

-0.4

C

Schnitt

C-C

SECTION

13

+0.2

15.3

0.5

x45°

Schnitt

A-A

SECTION

9

0.3

10.75

1.5

0.2

11.5

2

7

5

3

OBSOLETE

8.5

OBSOLETE

REVISION - - - - - A A -

X

3

3 POS. HOUSING

X

3 POS. HOUSING

SEALING

DESCRIPTION

SPRING

PA6.6 GV30

SPRING STEEL WIRE

Federstahl

YELLOW

GREEN

BROWN

BLACK

WHITE

BLACK

COLOR

Farbe

MATERIAL

RED

X

A

X

3

X

3

X

3

X

3

BLUE

11

28

B

3

0.3

+0.25

21.9

11.5

-0.25

25

+0.25

18.5

0.3

+0.2

3.4

16

+0.3

-0.1

0.3

R25

+1

20

0.3

19

5

0.1

.4

R0

4

+0

.2

n

fe

au

ml D

$u OUN

AR

d

en

uf D

la UN

um ARO

d

D

R1

.5

1

B

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

GREY

PLAIN

blank

Kowollik,R.

Münk,U.

Bleicher,M.

-

30JAN1987

10FEB1987

01SEP2006

NAME

TE Connectivity

X X X X X X X X

828748-8

828748-7

828748-6

828748-5

828748-4

828748-3

828748-2

828748-1

X X X X X X X X

2

1

CR

mm

APVD

ITEM

NO.

Pos.

MATERIAL

Werkstoff

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

APPLICATION SPEC

5 $

-

WEIGHT

-

CUSTOMER DRAWING

A1

SIZE

ASSY OF 3 POS. HOUSING

FOR JUNIOR (POWER) TIMER CONTACT

-

CAGE CODE

DRAWING NO

RESTRICTED TO

00779

828748

SCALE

4805 (3/13)

5:1

SHEET

1

OF

1

REV

A3

828748-1 Related Products

	828748-1	828748-4	828748-7
Description	3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR	3 CONTACT(S), FEMALE, POWER CONNECTOR	3 CONTACT(S), FEMALE, POWER CONNECTOR
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Connector type	COMBINATION LINE CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
empty shell	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Total number of contacts	3	3	3
Maker	TE Connectivity	TE Connectivity	-
Base Number Matches	1	1	-
Is it lead-free?	-	Lead free	Lead free
Other features	-	COMPATIBLE CONTACTS: 927778-1; 927778-3; 927775-1; 927775-3; 927775-5	COMPATIBLE CONTACTS: 927778-1; 927778-3; 927775-1; 927775-3; 927775-5
