82HS187AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 82HS187AD

82HS187AD: DescriptionOTP ROM, 1KX8, TTL, PQCC28; Categorystorage storage; File Size186KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

82HS187AD Overview

OTP ROM, 1KX8, TTL, PQCC28

82HS187AD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCJ, LDCC28,.5SQ
Reach Compliance Code	unknown
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
memory density	8192 bit
Memory IC Type	OTP ROM
memory width	8
Number of terminals	28
word count	1024 words
character code	1000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1KX8
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum slew rate	0.175 mA
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

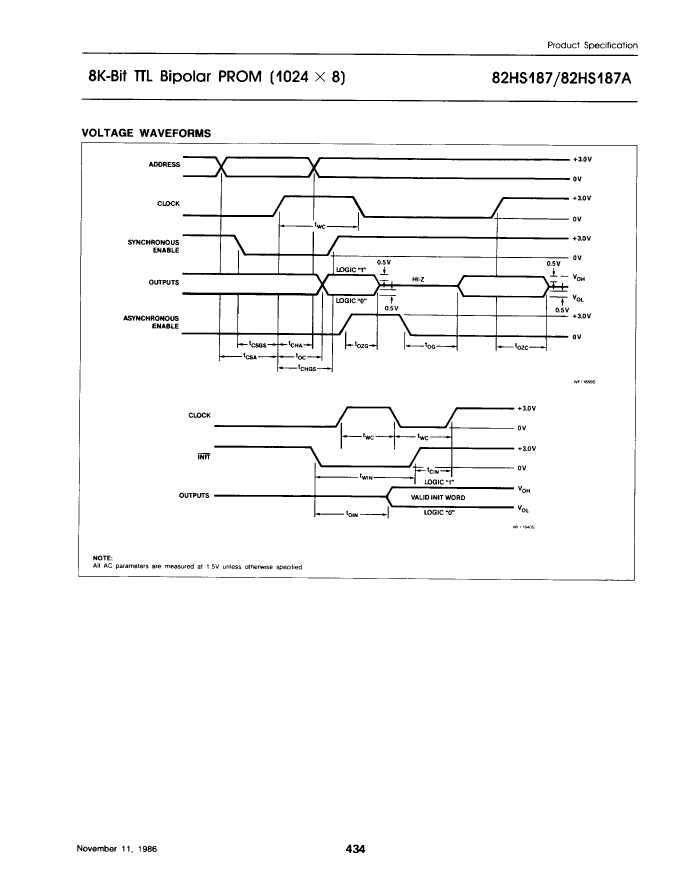

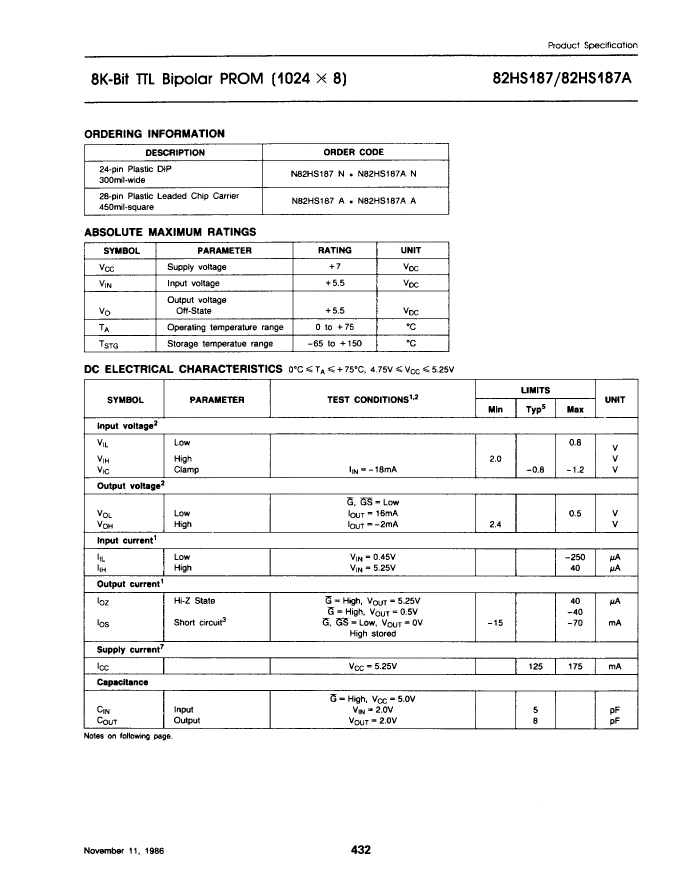

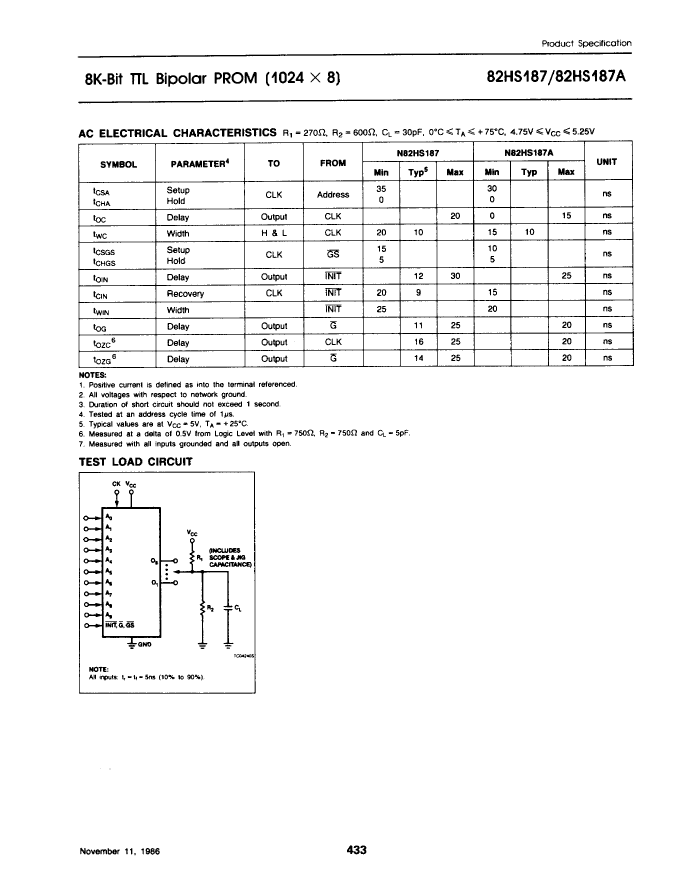

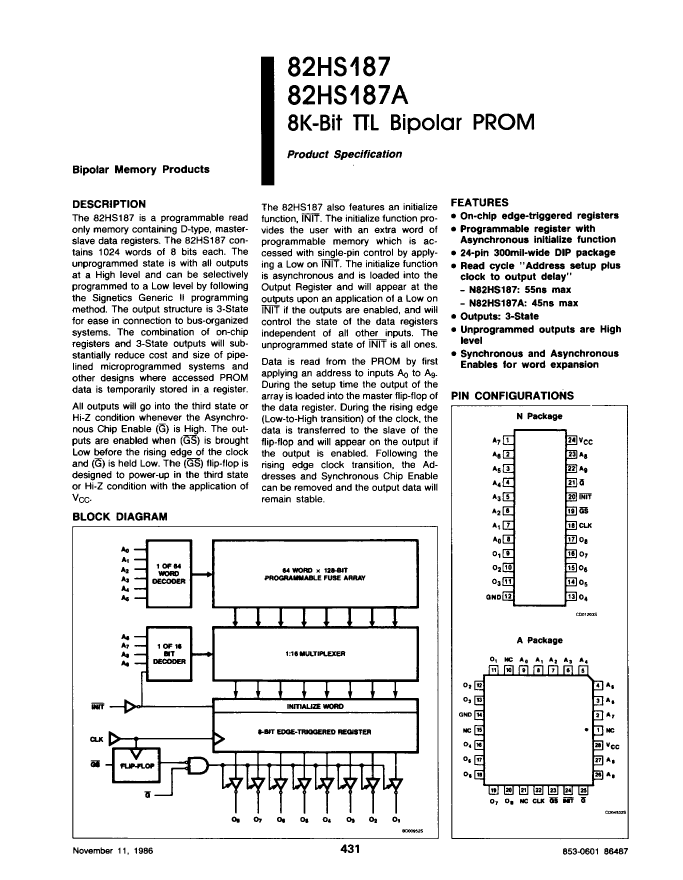

Preview

Download Datasheet

View All

82HS187AD Related Products

	82HS187AD	N82HS187N-B	82HS187D	82HS187A/BLA	N82HS187AN-B	N82HS187N	N82HS187AN	N82HS187AF	N82HS187F
Description	OTP ROM, 1KX8, TTL, PQCC28	OTP ROM, 1KX8, TTL, PDIP24	OTP ROM, 1KX8, TTL, PQCC28	OTP ROM, 1KX8, TTL, CDIP24	OTP ROM, 1KX8, TTL, PDIP24	OTP ROM, 1KX8, TTL, PDIP24	OTP ROM, 1KX8, TTL, PDIP24	OTP ROM, 1KX8, TTL, CDIP24	OTP ROM, 1KX8, TTL, CDIP24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCJ, LDCC28,.5SQ	DIP, DIP24,.3	QCCJ, LDCC28,.5SQ	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-PQCC-J28	R-PDIP-T24	S-PQCC-J28	R-XDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-XDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8	8	8	8	8	8
Number of terminals	28	24	28	24	24	24	24	24	24
word count	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000	1000	1000	1000	1000	1000
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1KX8	1KX8	1KX8	1KX8	1KX8	1KX8	1KX8	1KX8	1KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	QCCJ	DIP	QCCJ	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	LDCC28,.5SQ	DIP24,.3	LDCC28,.5SQ	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	YES	NO	YES	NO	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.175 mA	-	0.175 mA	-	-	0.175 mA	0.175 mA	0.175 mA	0.175 mA
