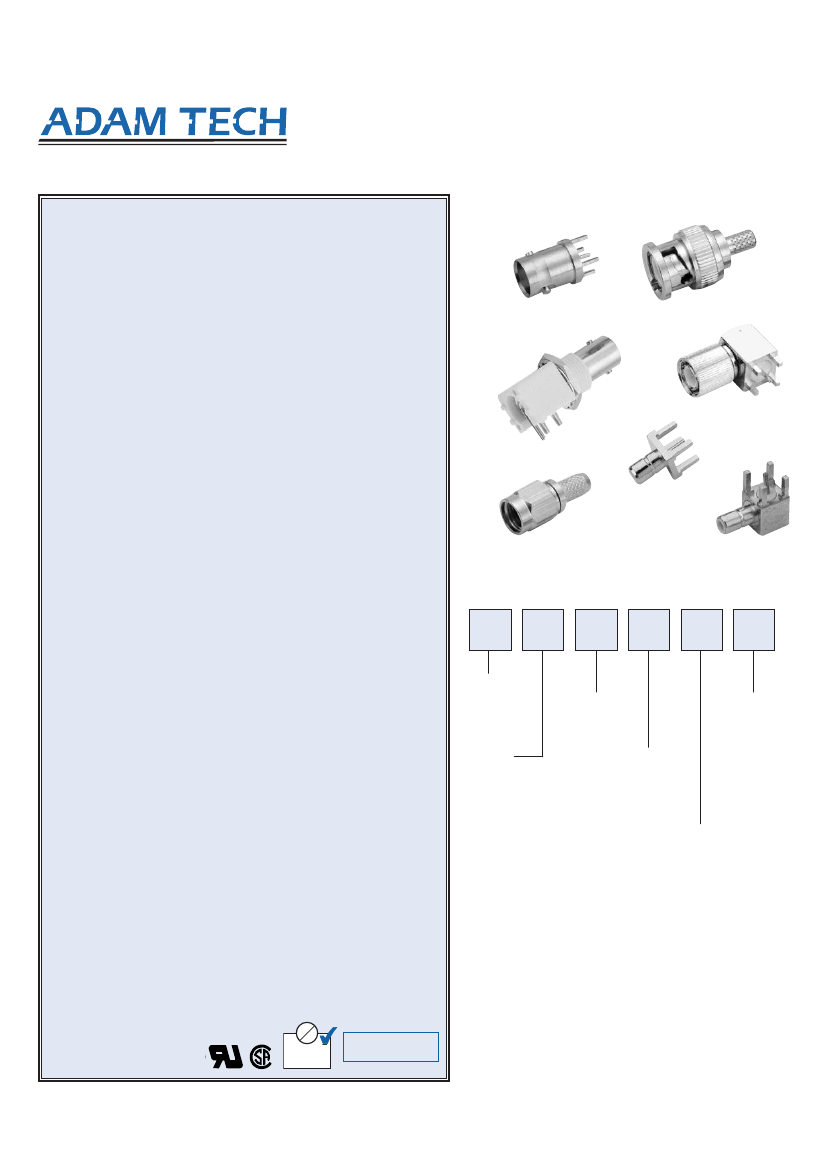

RF CONNECTORS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech’s RFC series RF connectors are a comprehensive
assortment of Radio Frequency signal connectors in standard,
miniature, sub-miniature, micro miniature and surface mount style.
Included are our BNC, TNC, FME, FMA, SMA, SMB, N, F, PAL,
UHF, Mini-UHF, MCX, MMCX and 1.6/5.6 coupling versions. Each
has standard interfaces and are of a strong lightweight design. Most
are ideal for applications where size and weight are important in
densely populated applications. All afford excellent RF
characteristics
FEATURES:
DC to 50 GHz versions
Plating Options
Insulator options
Impedance options
Mating options
PCB, Bulkhead and Cable versions
MATING CONNECTORS:
Adam Tech RF series connectors and all industry
Standard RF connectors
SPECIFICATIONS:
Material:
Housing: Brass, Nickel plated
Zinc diecast, Nickel plated
Standard Insulators: Delrin, Polypropylene or Teflon
Optional Hi-Temp Insulator: Teflon
Contacts: Beryllium copper, Gold plated
Electrical:
Operating voltage: 150V AC max.
Contact resistance: 5 mΩ max. initial
Impedance: 50 or 75 ohms
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
VSWR: 1.2 max
Frequency range: 0 – 6 GHZ
Mechanical:
Engagement force: 4.5 lbs max
Disengagement force: 2 lbs min
Cable retention: equal to breaking strength of cable employed
Durability: 500 cycles
Temperature Rating:
Operating temperature: -65°C to +165°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays or bags
RFC SERIES
ORDERING INFORMATION
RF
SERIES
INDICATOR
RF =
RF Connector
STYLE
1
= BNC
2
= SMA
3
= SMB
4
= F
5
= N
6
= UHF
7
= TNC
8
= FME
9
= Mini UHF
11
= MCX
12
= MMCX
20
= MHF
28
= W. FL
1
01
D
01
50
TYPE
01 thru 99
INSULATOR MATERIAL
T
= Teflon
D
= Delrin
P
= Polypropylene
IMPEDENCE
50
= 50 Ohms
75
= 75 Ohms
CABLE TYPE OR APPLICATION
00
= PCB Mount
01
= 55U/58/58A/58C/140U/141/
141A/142U/223U/303
02
= 174U/188A/316U
03
= 179U/187U
04
= 59/59A/59B/62/62AU/62B/62C 210
05
= RG 6/U
06
= RG 213/U
07
= .141-Semi-Rigid
08
= .085/.086-Semi-Rigid
AS
= Adapter or Splitter
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
U
L
INSULATOR
®
®
®
D E
V
AVA I L A B L E
OPTIONS:
Add as suffix to basic part no.
HT = Hi-Temp insulator for hi-temp soldering
processes up to 260°C
G = Gold plated body and contact
66
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
