30.22.7.009.0010 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> 30.22.7.009.0010

30.22.7.009.0010: DescriptionPower/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 9VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size139KB，4 Pages; ManufacturerFINDER; Environmental Compliance

Download Datasheet Parametric Compare View All

30.22.7.009.0010 Overview

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 9VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount

30.22.7.009.0010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FINDER
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10.1 mm
body height	11.4 mm
Body length or diameter	20.3 mm
Maximum coil current (DC)	0.022 A
Coil operating voltage (DC)	3.15 V
Coil power	200 mW
Coil release voltage (DC)	0.45 V
Coil resistance	405 Ω
Maximum coil voltage (DC)	9 V
Nominal coil voltage	9 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	125VA@250VAC
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
End contact plating	GOLD
Input switching control type	Random
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	8
operating hours	6 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	20.3mm x 10.1mm x 11.4mm
Guideline	CSA; CUL; GOST; UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	2 ms
seal	RT3
surface mount	NO
Terminal length	0.004 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

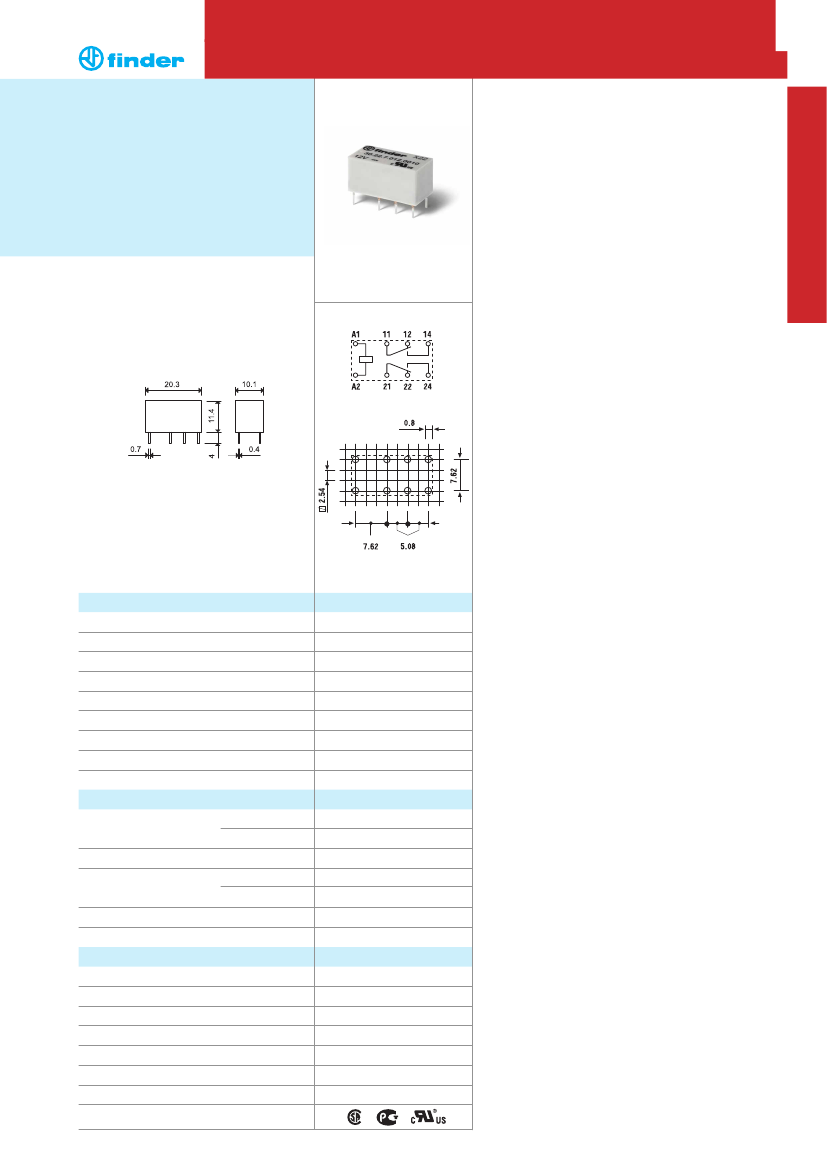

30 Series - Subminiature DIL relays 2 A

Features

Printed circuit mount

2 A signal relay

2 Pole changeover contacts

Low level switching capability

•

Subminiature - industry standard DIL package

•

Sensitive DC coil - 200 mW

•

Wash tight: RT III

•

Cadmium Free contact material

•

SERIES

30.22

Plug-in / PCB Relays

Low coil power

•

Au clad contacts

•

PCB mount

•

Copper side view

Contact specification

Contact configuration

Rated current/Maximum peak current

Rated load AC1

Rated load AC15 (230 V AC)

Single phase motor rating (230 V AC)

Breaking capacity DC1: 30/110/220 V

Minimum switching load

Standard contact material

Coil specification

Nominal voltage (U

)

Rated power AC/DC

Operating range

Holding voltage

Must drop-out voltage

Technical data

Mechanical life AC/DC

Electrical life at rated load AC1

Operate/release time

X-2013, www.findernet.com

2 CO (DPDT)

2/3

125/250

125

—

2/0.3/—

10 (0.1/1)

AgNi + Au

V AC (50/60 Hz)

V DC

VA (50 Hz)/W

AC/DC

cycles

—

5 - 6 - 9 - 12 - 24 - 48

—/0.2

—

See table page 3

—/0.35 U

—/0.05 U

—/10 · 10

100 · 10

6/2

1.5

750

–40…+85

RT III

Rated voltage/Maximum switching voltage V AC

mW (V/mA)

Insulation between coil and contacts (1.2/50 µs) kV

Dielectric strength between open contacts V AC

Ambient temperature range

Environmental protection

Approvals

(according to type)

°C

30.22.7.009.0010 Related Products

	30.22.7.009.0010	30.22.7.024.0010	30.22.7.012.0010	30.22.7.048.0010	30.22.7.006.0010
Description	Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 9VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount	Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount	Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.016A (Coil), 12VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount	Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.004A (Coil), 48VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount	Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.033A (Coil), 6VDC (Coil), 200mW (Coil), DC Input, Random, AC/DC Output, Through Hole-Straight Mount
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	10.1 mm	10.1 mm	10.1 mm	10.1 mm	10.1 mm
body height	11.4 mm	11.4 mm	11.4 mm	11.4 mm	11.4 mm
Body length or diameter	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm
Maximum coil current (DC)	0.022 A	0.008 A	0.016 A	0.004 A	0.033 A
Coil operating voltage (DC)	3.15 V	8.4 V	4.2 V	16.8 V	2.1 V
Coil power	200 mW	200 mW	200 mW	200 mW	200 mW
Coil release voltage (DC)	0.45 V	1.2 V	0.6 V	2.4 V	0.3 V
Coil resistance	405 Ω	2880 Ω	720 Ω	11520 Ω	180 Ω
Maximum coil voltage (DC)	9 V	24 V	12 V	48 V	6 V
Nominal coil voltage	9 V	24 V	12 V	48 V	6 V
Coil/Input Power Type	DC	DC	DC	DC	DC
Contact (AC) maximum rated power R load	125VA@250VAC	125VA@250VAC	125VA@250VAC	125VA@250VAC	125VA@250VAC
Contact (AC) maximum rated R load	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	3 A	3 A	3 A	3 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms
Dielectric strength between breaking contacts	750 Vrms	750 Vrms	750 Vrms	750 Vrms	750 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel	Silver Nickel
End contact plating	GOLD	GOLD	GOLD	GOLD	GOLD
Input switching control type	Random	Random	Random	Random	Random
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	8	8	8	8	8
operating hours	6 ms	6 ms	6 ms	6 ms	6 ms
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	8	8	8	8	8
physical size	20.3mm x 10.1mm x 11.4mm	20.3mm x 10.1mm x 11.4mm	20.3mm x 10.1mm x 11.4mm	20.3mm x 10.1mm x 11.4mm	20.3mm x 10.1mm x 11.4mm
Guideline	CSA; CUL; GOST; UL	CSA; CUL; GOST; UL	CSA; CUL; GOST; UL	CSA; CUL; GOST; UL	CSA; CUL; GOST; UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay style	2 FORM C	2 FORM C	2 FORM C	2 FORM C	2 FORM C
Relay function	DPDT	DPDT	DPDT	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	2 ms	2 ms	2 ms	2 ms	2 ms
seal	RT3	RT3	RT3	RT3	RT3
surface mount	NO	NO	NO	NO	NO
Terminal length	0.004 inch	0.004 inch	0.004 inch	0.004 inch	0.004 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	FINDER	-	FINDER	FINDER	FINDER
Base Number Matches	1	1	1	1	-
