906-3K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 906-3K

906-3K: DescriptionGeneral Purpose Inductor, 0.00255uH, 10%, 1 Element, Air-Core, SMD; CategoryPassive components inductor; File Size217KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

906-3K Overview

General Purpose Inductor, 0.00255uH, 10%, 1 Element, Air-Core, SMD

906-3K Parametric

Parameter Name	Attribute value
Maker	COILCRAFT
Reach Compliance Code	unknown
ECCN code	EAR99
core material	AIR
DC Resistance	0.005 Ω
Nominal inductance(L)	0.00255 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	100
Maximum rated current	1.6 A
self resonant frequency	8200 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	GULL WING
Test frequency	800 MHz
Tolerance	10%
Base Number Matches	1

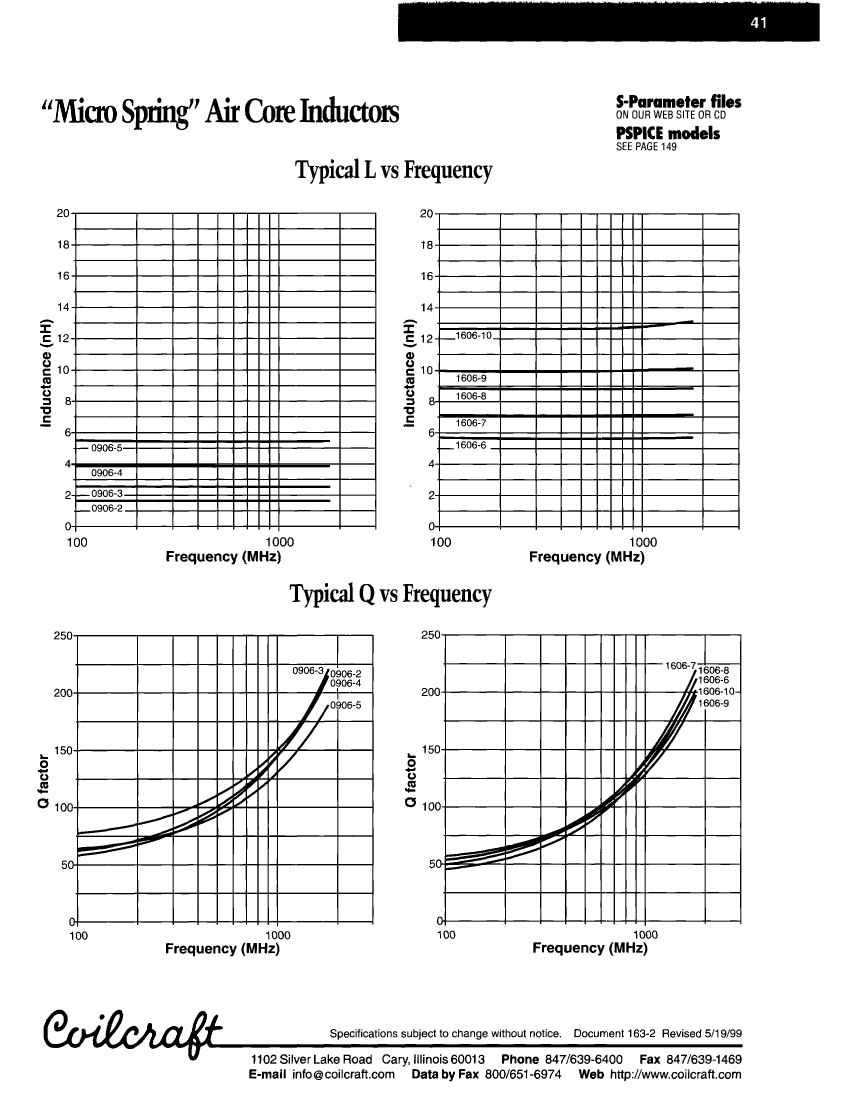

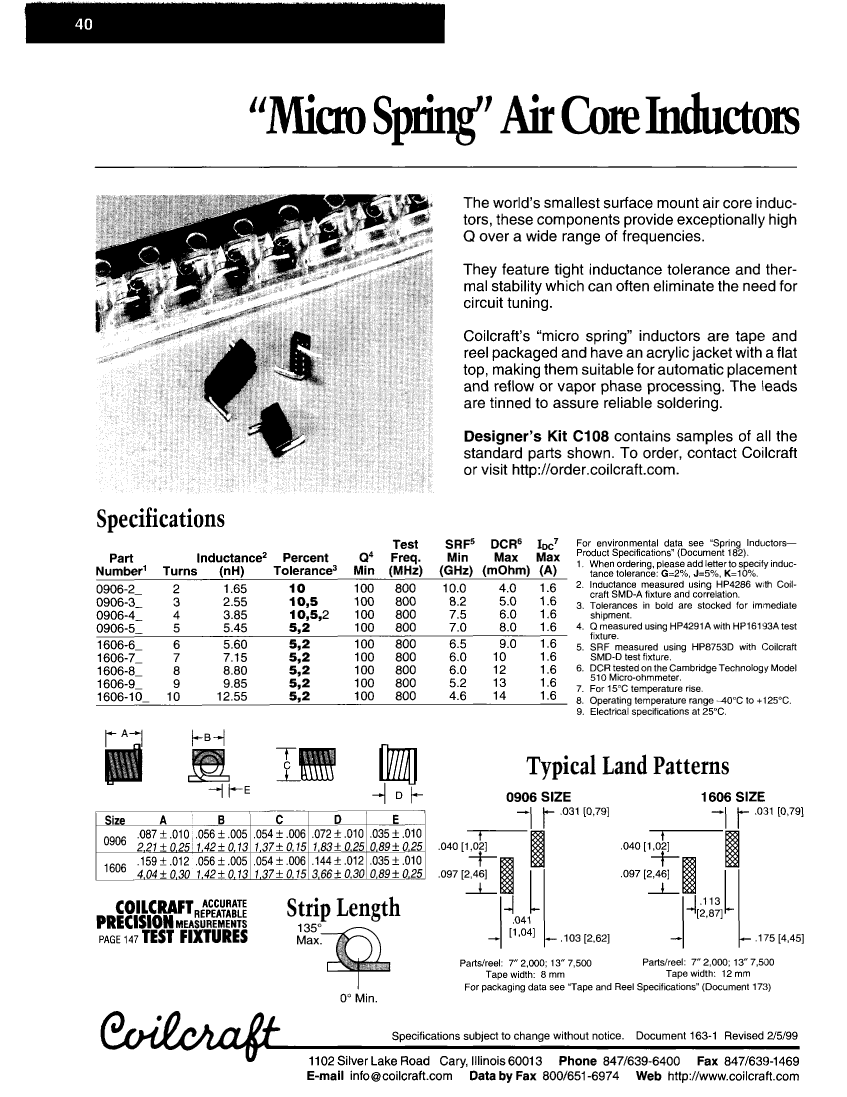

Preview

Download Datasheet

View All

906-3K Related Products

	906-3K	906-2K	906-3J	906-5J	906-5G	906-4G	906-4J
Description	General Purpose Inductor, 0.00255uH, 10%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.00165uH, 10%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.00255uH, 5%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.00545uH, 5%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.00545uH, 2%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.00385uH, 2%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.00385uH, 5%, 1 Element, Air-Core, SMD
Maker	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	AIR	AIR	AIR	AIR	AIR	AIR	AIR
DC Resistance	0.005 Ω	0.004 Ω	0.005 Ω	0.008 Ω	0.008 Ω	0.006 Ω	0.006 Ω
Nominal inductance(L)	0.00255 µH	0.00165 µH	0.00255 µH	0.00545 µH	0.00545 µH	0.00385 µH	0.00385 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	100	100	100	100	100	100	100
Maximum rated current	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A
self resonant frequency	8200 MHz	10000 MHz	8200 MHz	7000 MHz	7000 MHz	7500 MHz	7500 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Test frequency	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz
Tolerance	10%	10%	5%	5%	2%	2%	5%
