8RDB-151M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 8RDB-151M

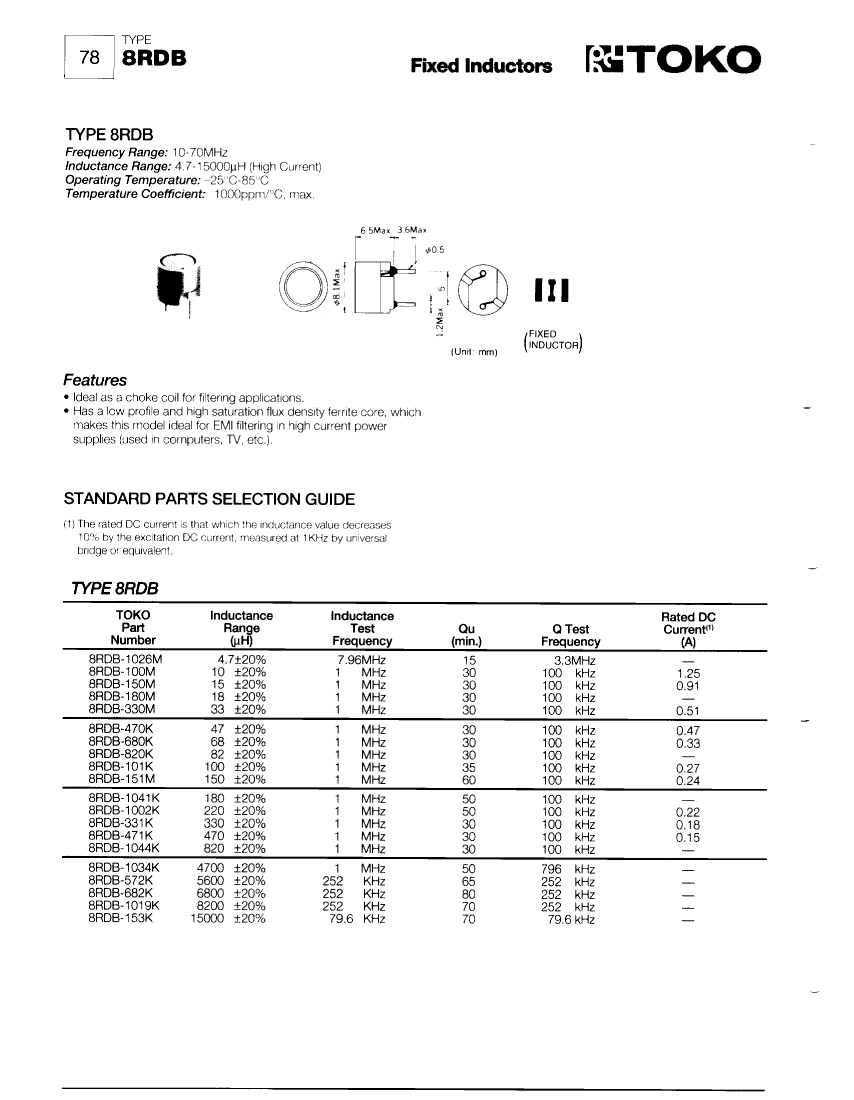

8RDB-151M: DescriptionGeneral Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core; CategoryPassive components inductor; File Size38KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

8RDB-151M Overview

General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core

8RDB-151M Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
structure	PC Board Mount
core material	FERRITE
DC Resistance	0.24 Ω
Nominal inductance(L)	150 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.5 mm
Lead length	3.6 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package diameter	8.1 mm
Package length	6.5 mm
Package form	Radial
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.24 A
series	8RDB
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
special characteristics	Q MEASURED AT 100 KHZ
surface mount	NO
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

8RDB-151M Related Products

	8RDB-151M	8RDB-680K	8RDB-1019K	8RDB-820K	8RDB-1034K	8RDB-153K
Description	General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core	General Purpose Inductor, 68uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 8200uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 82uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 4700uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 15000uH, 10%, 1 Element, Ferrite-Core
Maker	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
Nominal inductance(L)	150 µH	68 µH	8200 µH	82 µH	4700 µH	15000 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Minimum quality factor (at nominal inductance)	60	30	70	30	50	70
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Test frequency	1 MHz	1 MHz	0.252 MHz	1 MHz	1 MHz	0.0796 MHz
Tolerance	20%	10%	10%	10%	10%	10%
Base Number Matches	1	1	1	1	1	1
special characteristics	Q MEASURED AT 100 KHZ	Q MEASURED AT 100 KHZ	-	Q MEASURED AT 100 KHZ	Q MEASURED AT 796 KHZ	-
