Product Data Sheet
SATCOM / "1 ppm Forever"
Temperature Compensated Crystal Oscillators

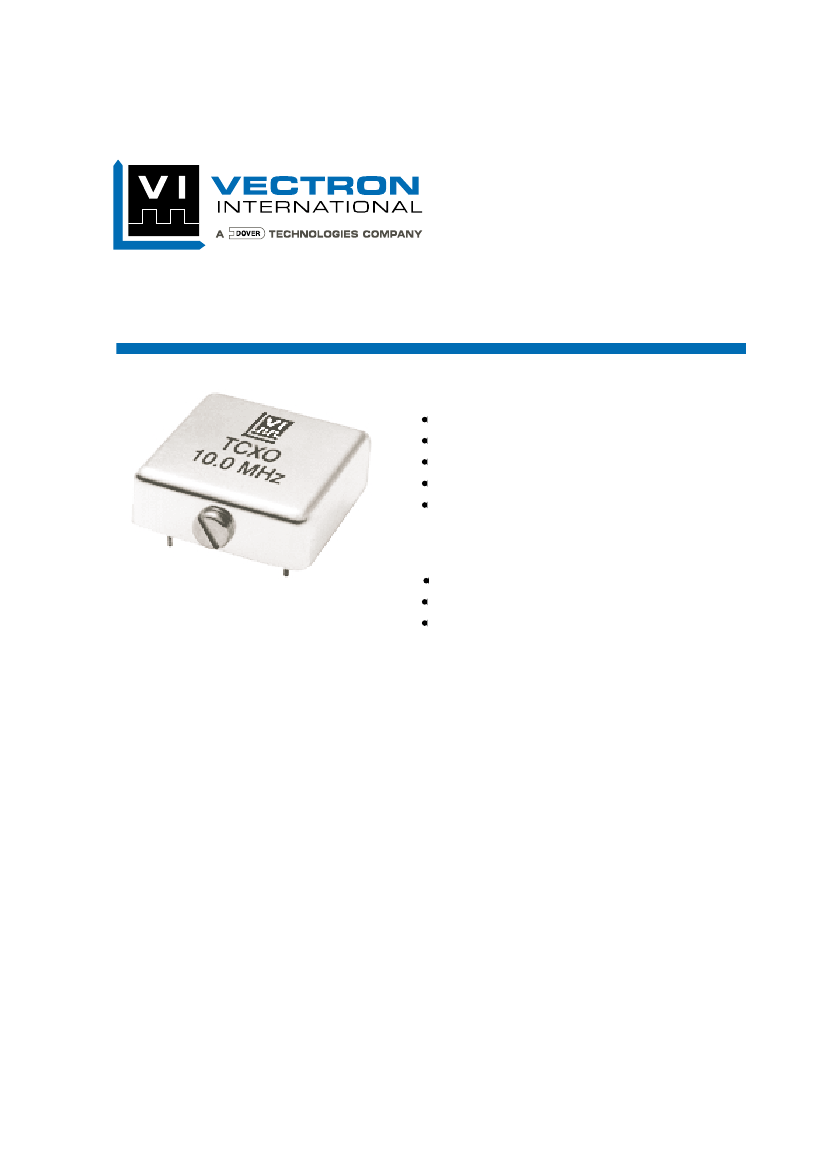

Features
Frequency from 0.5 MHz to 160 MHz
Stability to
±
0.1 ppm 0 to 50˚C
+5Vdc to +24Vdc supply voltage options
Sinewave, HCMOS, TTL options
Over 500,000 units produced
Applications
SATCOM
Base Stations and Picocells
LMDS, WLL, SONET, Stratum 3
Description
The SATCOM and "1 ppm Forever" series of
Temperature Compensated Crystal Oscillators
(TCXO's) are available in frequencies from
0.5 MHz to 160 MHz.
These series offer performance for short term
stability, phase noise, G sensitivity, aging and
temperature stability normally only associated
with Oven Controlled Crystal Oscillators
(OCXO's), while consuming typically < 20 mA.
With over 500,000 units produced,
Vec-
tron International has more experience with this
type of TCXO then the rest of the industry
combined.
1
SATCOM / "1 ppm Forever" TCXO
Performance Characteristics
Parameter
Output Options:
Characteristics
AC
= ACMOS
0.5 to 160 MHz
HC
= HCMOS
0.5 to 160 MHz
TD
= 10 TTL
0.5 to 160 MHz
RG
= 0 dBm 50 ohm
3.0 to 30 MHz
RC
= +7.0 dBm 50 ohm 3.0 to 90 MHz
A17
=
±
0.1 ppm
B37
=
±
0.3 ppm
C57
=
±
0.5 ppm
D16
=
±
1.0 ppm
EA6
=
±
1.5 ppm
AC
= +12 Vdc
±
5%
HC
= +12 Vdc
±
5%
TD
= +12 Vdc
±
5%
RG
= +5 Vdc
±
5%
RC
= +12 Vdc
±
5%
±
1 x 10-10 at tau = 1 sec
"1 ppm Forever"
SATCOM
-110 dBc / Hz
-135 dBc / Hz
-150 dBc / Hz
-155 dbc / Hz
< 0.2 ppm / 1st year
< 0.7 ppm / 10 years
< 0.5 ppm / 1st year
< 2.0 ppm / 10 years
@ 10 Hz offset
@ 100 Hz offset
@ 1 kHz offset
@ 100 kHz offset
RCR7HYA17C 10.00 MHz
RGR5HXB37C 15.00 MHz
0˚C
0˚C
-20˚C
-40˚C
-55˚C
to
to
to
to
to
+50˚C
+70˚C
+70˚C
+85˚C
+85˚C
Stability Options:
(Other stability
options are available)
Supply Voltage:
(Other voltage
options are available)
Allan Variance
(typical):
Aging (at 10MHz):
Phase Noise
(typical):
10 MHz, RC option
Typical P/N:
(SATCOM)
("1 ppm Forever")
HY is predetermined, HX is for "1 ppm Forever" max temp range -20 to +70
Note:
Not all stabilities are available with all options. Vectron International does not recommend wave
soldering, IR reflow or other elevated temperature processing without consulting the factory.
For AC, HC and TD outputs with frequencies above 30 MHz a low phase noise PLL multiplier
will
be used.
Please inform the factory of your phase noise requirements.
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
2
SATCOM / "1 ppm Forever" TCXO
38.887 max
(1.531)
Pin
1
2
3
4
5
Function
Output
+Vdd
Gnd, Case
Gnd / V tune
Gnd
3
12.70
(0.50)
5.842 min
(0.23)
13.462
(0.53) max
.508
(0.02)
25.4
(1.000)
12.70
(0.500)
0.762 DIA. 5 PLACES
(.030)
4
20.320
(0.800)
Frequency Adjust:
Option
Specification
HY
±
3 ppm min. via external
voltage, 0 to +5 Vdc
HX
NONE
12.70
38.887
(1.531) max
(0.500)
C
L
25.4
(1.000)
2
5
1
10.160
(0.400)
6.350
(0.250)
C
L
R5 PACKAGE
mm
(in.)
Pin
1
2
3
4
5
Function
Output
+Vdd
Gnd, Case
Gnd
Gnd
3
.508
(0.20)
38.887 max
(1.531)
FREQUENCY
ADJUST ACCESS
13.462 max
(0.53)
5.842 min
(0.23)
1.270
(0.05)
25.4
(1.000)
12.70
(0.500)
.508
(0.02)
0.762 DIA. 5 PLACES
(.030)
4
Frequency Adjust:
Option
HY & HX
Specification
±
3 ppm min. via internal
mechanical adjust
38.887 max
12.70
(0.500)
(1.531)
C
L
20.320
(0.800)
5
2
1
25.4
(1.000)
10.160
6.350 (0.400)
(0.250)
C
L
R7 PACKAGE
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
3
SATCOM / "1 ppm Forever" TCXO
50.8
±
.762
(2.00
±
.03)
FREQUENCY
ADJUST ACCESS
Pin
1
2
3
4
5
Function
Output
+Vdd
Gnd, Case
Gnd
Gnd
25.4
(1.000)
C
L
12.70
(0.500)
3
4
12.192
(0.48)
.508
(0.02)
2.54
(0.10)
19.812
max
(0.78)
5.842
min
(0.23)
1.270
(0.05)
C
L
0.762 DIA. 5 PLACES
(.030)
50.8
±
.762
(2.00
±
.03)
20.320
(0.800)
10.160
(0.400)
Frequency Adjust:
Option
Specification
HY & HX
±
3 ppm min. via internal
mechanical adjust
2
5
1
6.350
(0.250)
12.70
(0.500)
25.4
(1.000)
mm
(in.)
S5 PACKAGE
Pin
1
2
3
4
5
Function
Output
+Vdd
Gnd, Case
Gnd / V tune
.508
(0.02)
50.8
±
.762
(2.00
±
.03)
19.812
max
(0.78)
5.842
min
(0.23)
C
L
Gnd
0.762 DIA. 5 PLACES
(.030)
50.8
±
.762
(2.00
±
.03)
Frequency Adjust:
Option
Specification
HY
±
3 ppm min. via external
HX
voltage, 0 to +5 Vdc
NONE
25.4
(1.000)
C
L
12.70
(0.500)
3
4
2
5
1
20.320
(0.800)
10.160
(0.400)
6.350
(0.250)
12.70
(0.500)
25.4
(1.000)
S7 PACKAGE
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
4
SATCOM / "1 ppm Forever" TCXO
Output Option
Output
Voh min.
Voh max.
Load (typical)
Duty Cycle
Rise and Fall
AC
ACMOS
+4.5 Vdc
+0.5 Vdc
100 k ohm // 10 pF
50%
±
10%
3 nS max.
HC
HCMOS
+4.5 Vdc
+0.5 Vdc
100 k ohm // 10 pF
50%
±
10%
5 nS max.
TD
10 TTL
+2.4 Vdc
+0.5 Vdc
10 TTL
50%
±
10%
10 nS max.
Output Option
Output
Level
Load
Harmonics / Sub
Other Spurious
RG
Sinewave
0 dBm to +6 dBm
50 ohm
-20 dBc max.
-60 dBc max.
RC
Sinewave
+7.0 dBm to +13 dBm
50 ohm
-20 dBc max.
-60 dBc max.
Test Loads:
Vdd
.01µF
TEK
2465B
50Ω
TEK
2465B
Vdd
DUT
OUT
50Ω COAX
.01µF
TEK P6137
PROBE
Vdd
50 Ohm Sinewave
(RG & RC)
TEK
2465B
DUT
OUT
D1
R2
270Ω
R1
6k
D2
D3
D4
C1
.01µF
Vdd
.01µF
TEK P6137
PROBE
DUT
OUT
Standard TTL
(TD)
CL
RL
Standard CMOS
(AC & HC)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
5
