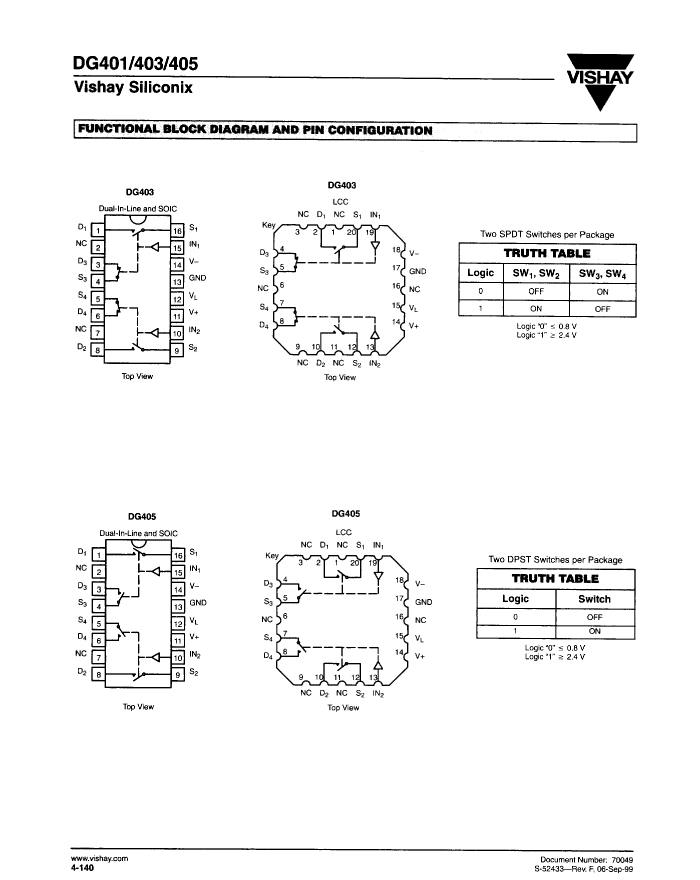

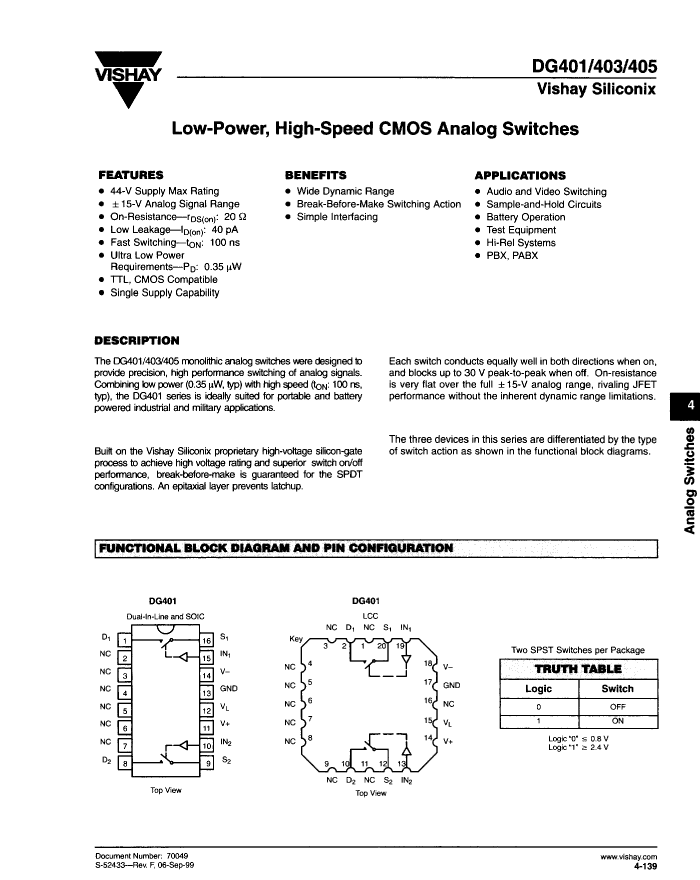

SPST, 2 Func, 1 Channel, CMOS, LCC-20

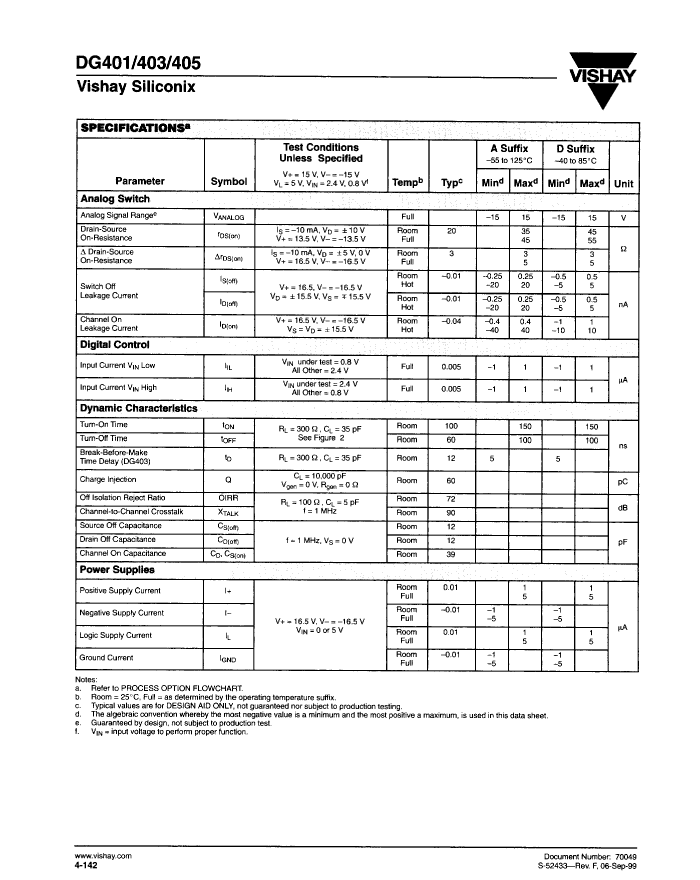

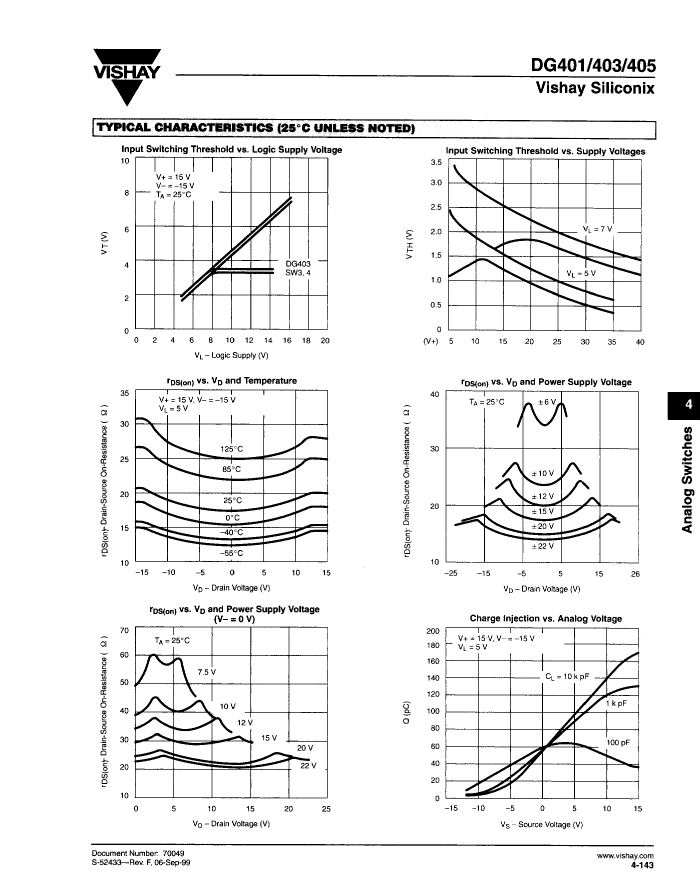

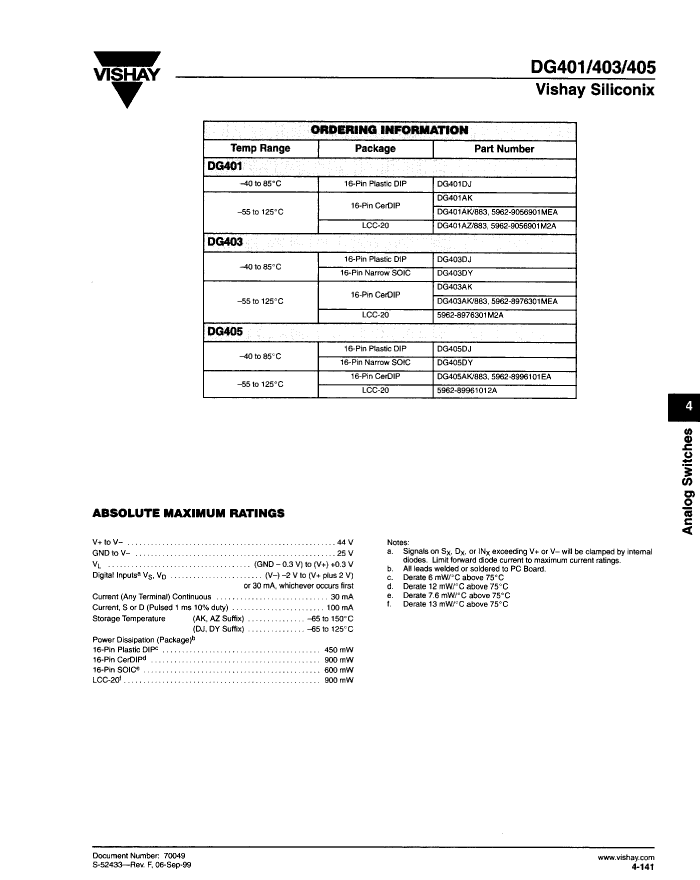

| Parameter Name | Attribute value |
| Maker | Vishay |
| Parts packaging code | QLCC |
| package instruction | QCCN, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | S-XQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 1 |
| Number of functions | 2 |
| Number of terminals | 20 |
| Nominal off-state isolation | 72 dB |
| On-state resistance matching specifications | 3 Ω |
| Maximum on-state resistance (Ron) | 35 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | UNSPECIFIED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 2.54 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Maximum disconnect time | 100 ns |
| Maximum connection time | 150 ns |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 5962-9056901M2A | 5962-8976301M2A | DG401AZ/883 | DG401AK/883 | 5962-9056901MEA | |
|---|---|---|---|---|---|
| Description | SPST, 2 Func, 1 Channel, CMOS, LCC-20 | SPDT, 2 Func, 1 Channel, CMOS, CQCC20, CERAMIC, LCC-20 | SPST, 2 Func, CMOS, CQCC20, | SPST, 2 Func, CMOS, CDIP16, | SPST, 2 Func, 1 Channel, CMOS, CDIP16, CERDIP-16 |
| package instruction | QCCN, | QCCN, LCC20,.35SQ | QCCN, LCC20,.35SQ | DIP, DIP16,.3 | DIP, |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SPST | SPDT | SPST | SPST | SPST |
| JESD-30 code | S-XQCC-N20 | S-XQCC-N20 | S-XQCC-N20 | R-XDIP-T16 | R-GDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Number of functions | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 16 | 16 |
| Maximum on-state resistance (Ron) | 35 Ω | 45 Ω | 45 Ω | 45 Ω | 35 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | UNSPECIFIED | CERAMIC | CERAMIC | CERAMIC | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | QCCN | QCCN | DIP | DIP |
| Package shape | SQUARE | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | MIL-STD-883 |
| surface mount | YES | YES | YES | NO | NO |
| Maximum connection time | 150 ns | 150 ns | 150 ns | 150 ns | 150 ns |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | Tin/Lead (Sn/Pb) - hot dipped | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN LEAD |
| Terminal form | NO LEAD | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | QUAD | QUAD | QUAD | DUAL | DUAL |
| Maker | Vishay | - | Vishay | Vishay | Vishay |
| Parts packaging code | QLCC | QLCC | - | - | DIP |
| Contacts | 20 | 20 | - | - | 16 |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | - |
| normal position | - | NO/NC | NO | NO | - |
| output | - | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | - |
| Encapsulate equivalent code | - | LCC20,.35SQ | LCC20,.35SQ | DIP16,.3 | - |
| power supply | - | 5,+-15 V | 5,+-15 V | 5,+-15 V | - |
| switch | - | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | - |
