8M682KLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 8M682KLF

8M682KLF: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

8M682KLF Overview

General Purpose Inductor

8M682KLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Tubular
core material	Powdered Iron
DC Resistance	11.5 Ω
Nominal inductance(L)	68 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead length	36.525 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package diameter	1.98 mm
Package length	5.08 mm
Package form	Axial
method of packing	TR, 12 Inch
Minimum quality factor (at nominal inductance)	45
Maximum rated current	0.064 A
self resonant frequency	10.5 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	2.5 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

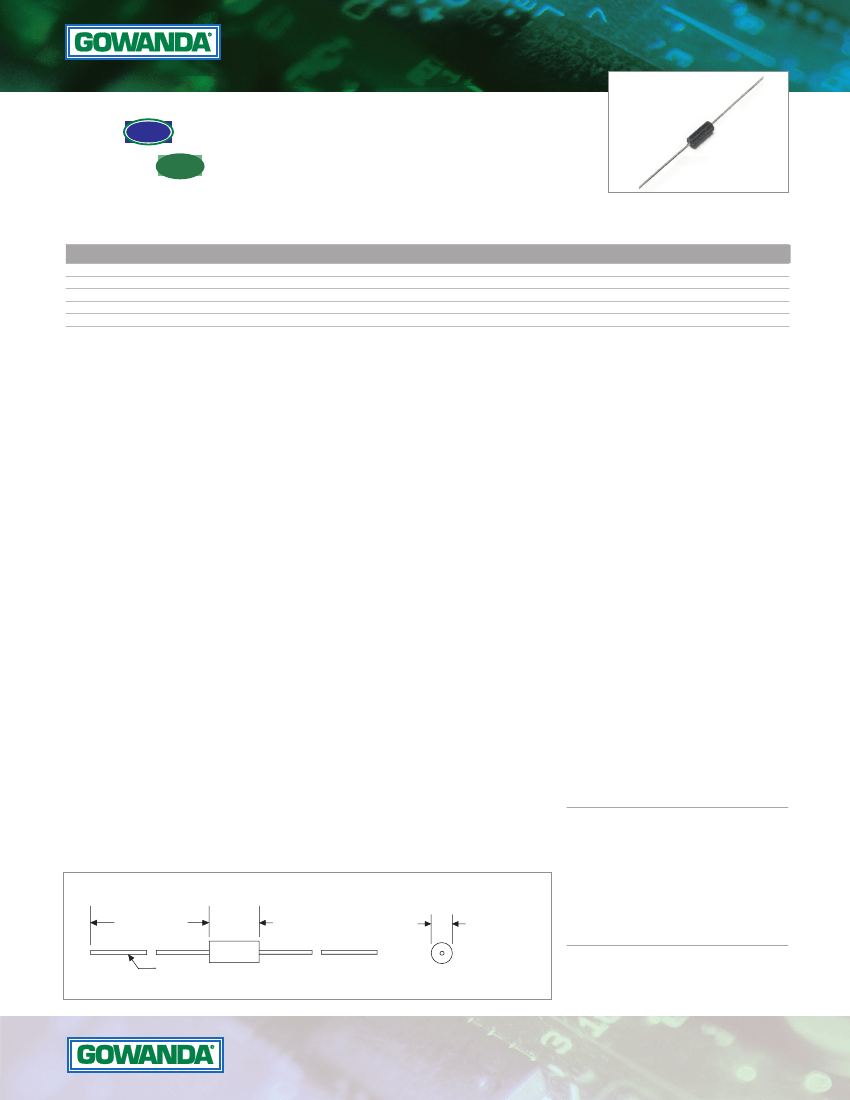

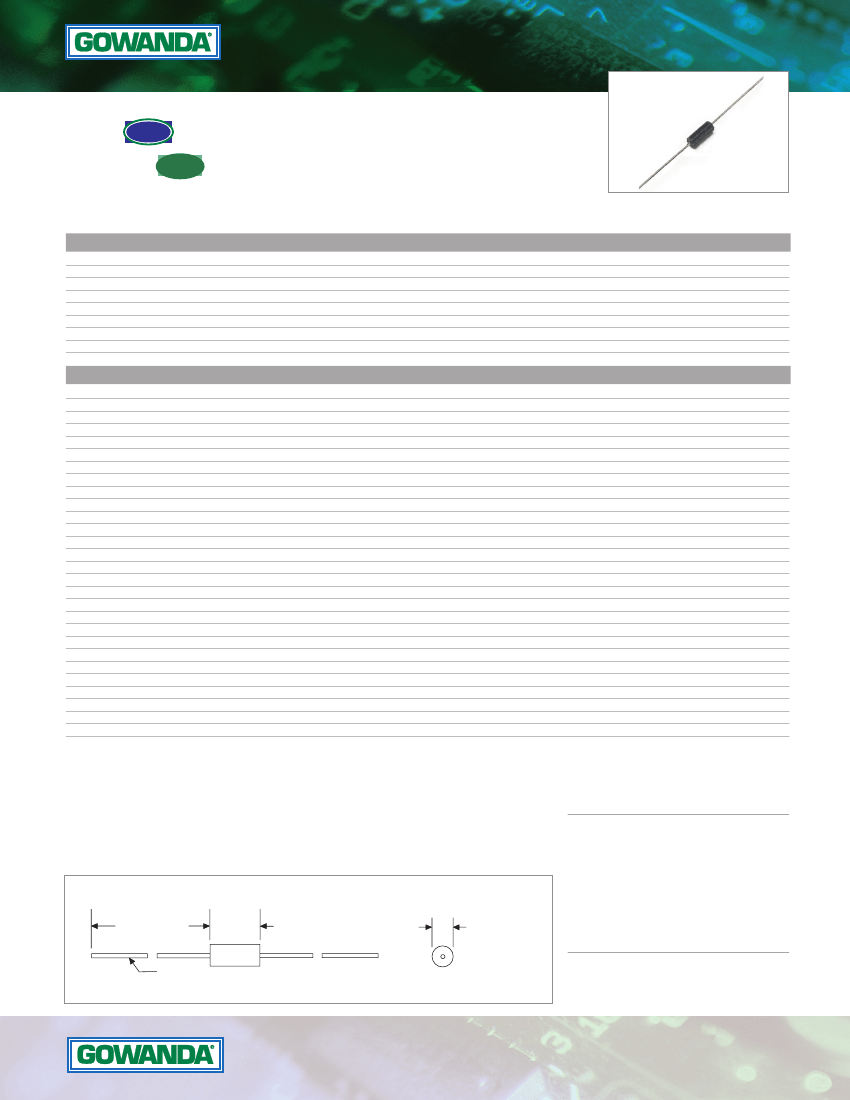

STANDARD RF INDUCTORS - THRU HOLE

8MLF

PART

NUMBER

8M100K

8M120K

8M150K

8M180K

8M220K

8M270K

8M330K

8M390K

8M470K

8M560K

8M680K

8M820K

8M101K

8M121K

8M151K

8M181K

8M221K

8M271K

8M331K

8M391K

8M471K

8M561K

8M681K

8M821K

8M102K

8M122K

8M152K

8M182K

8M222K

8M272K

8M332K

8M392K

8M472K

8M562K

8M682K

8M822K

8M103K

TRADITIONAL

COMPLIANT

RoHS

Wirewound, Molded

µH

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

MIN

TEST FREQ

L&Q

MHz

PHENOLIC CORE

SRF

MHz

MIN

680

650

560

540

500

440

410

380

340

250

215

200

190

170

150

135

130

110

100

15.0

13.5

12.5

11.5

10.5

10.0

9.5

DCR

OHMS

MAX

0.13

0.15

0.18

0.21

0.25

0.38

0.49

0.59

0.62

0.18

0.20

0.22

0.25

0.28

0.49

0.56

0.72

0.85

1.2

1.5

2.1

2.8

3.2

4.4

5.2

3.0

3.4

3.8

4.3

4.7

5.2

6.8

8.2

10.0

11.5

16.0

17.5

CURRENT

RATING

mA DC

895

835

760

705

645

525

460

420

410

510

485

465

435

410

310

290

257

236

198

178

150

130

122

104

126

118

112

105

100

95.0

83.5

76.0

69.0

64.0

54.5

52.0

continued next page

POWDERED IRON CORE

7.9

2.5

Suffix “K” for 10% tolerance

Optional tolerances available; please contact factory

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: 8M100KLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the

part number. These LF components meet the ≤ .1% lead requirement and they are

1.438 ± 0.188

0.200 ± 0.010

compatible with 260°C soldering processes.

(36.525 ± 4.77)

(5.08 ± 0.25)

24 AWG

1.438 ± 0.188

(36.525 ± 4.77)

10 µH

± 10%

in. (mm)

10 µH

± 10%

0.200 ± 0.010

(5.08 ± 0.25)

0.078 ± 0.008

(1.98 ± 0.20)

NOTES:

• Operating Temperature Range:

-55°C to +125°C for (Phenolic)

-55°C to +105°C for (Powdered Iron & Ferrite)

• Current Rating is @ a 90°C Ambient:

15°C Rise for Phenolic

35°C Rise for Powdered Iron & Ferrite

• DWV 1000 Vrms @ Sea Level

200 Vrms @ 70,000 Feet

• Laser marking is standard

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Inside tape spacing:

Reel diameter:

Class:

24 AWG

0.078 ± 0.008

(1.98 ± 0.20)

5000

0.200 in.

2.062 in.

12 in.

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

012514
