Surface Mount Inductors
Meeting Your Needs
TYPE
D52FU
1.6
9
Frequency Range:
1kHz - 2MHz
Inductance Range:
100µH - 6.8mH
0.7
TYPE D52FU
5.2
5
Max.
2.2 max.
Tolerance:
±0.2
Unit: mm
Features
•
•
•
•
Low profile (2.2mm max. height) and 5.2mm square
Ideal for IC inverter EL lamp driver applications
Available on tape and reel for auto-insertion
Suitable for reflow soldering

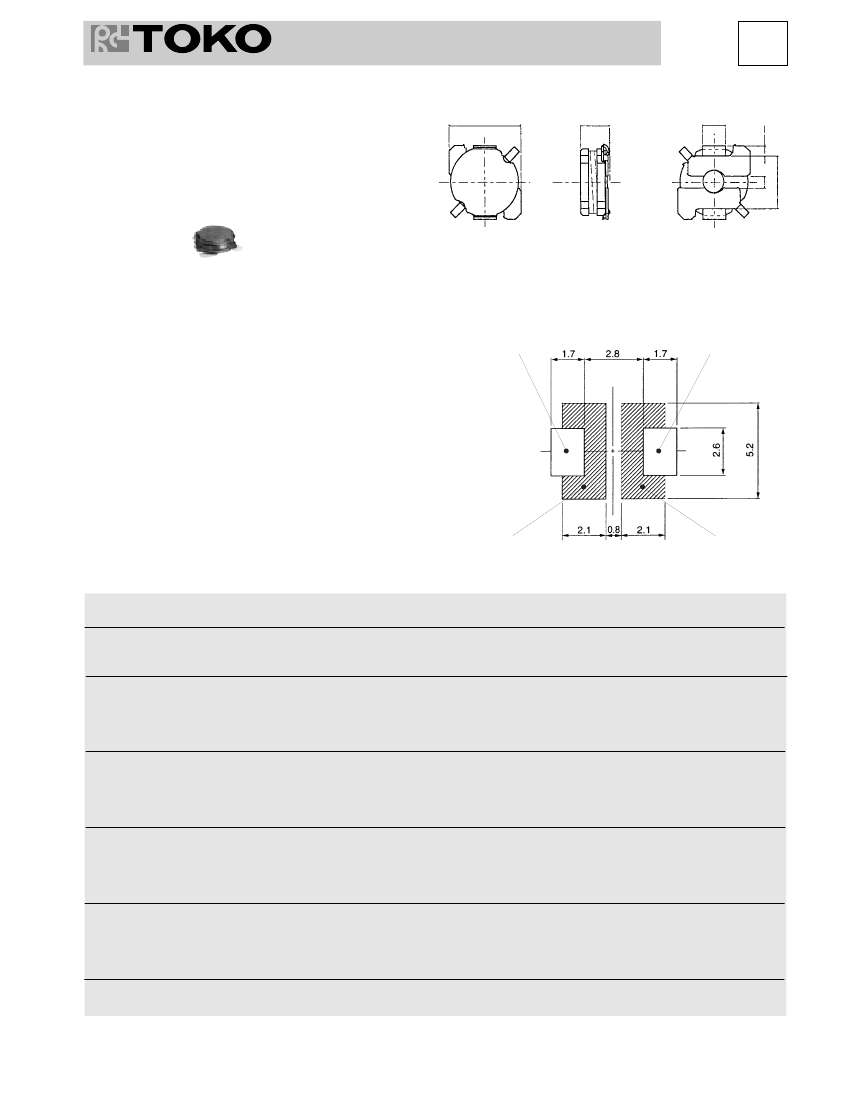

Recommended patterns:
Solder Pad
Solder Pad
STANDARD PARTS SELECTION GUIDE
(1) Inductance is measured by LCR-meter 4284A (HP) or equivalent.
(2) DC Resistance is measured by Digital Multimeter TR6871
(Advantest) or equivalent.
(3) Maximum allowable DC current is that which causes a 10% inductance
reduction from the initial value, or coil temperature to rise by 40°C,
whichever is smaller. (Reference ambient temperature 20°C).
No Paste
No Paste
Unit: mm
TYPE D52FU
TOKO
Part
Number
875FU-101M=P3
875FU-121M=P3
875FU-131M=P3
875FU-151M=P3
875FU-221M=P3
875FU-331M=P3
875FU-391M=P3
875FU-471M=P3
875FU-561M=P3
875FU-681M=P3
875FU-821M=P3
875FU-102M=P3
875FU-122M=P3
875FU-152M=P3
875FU-182M=P3
875FU-222M=P3
875FU-272M=P3
875FU-332M=P3
875FU-392M=P3
875FU-472M=P3
875FU-562M=P3
875FU-682M=P3
Inductance
(1)
(µH)
±20%
100
120
130
150
220
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
Rated DC
(2)
Resistance
(
Ω
) max.
1.6
1.9
2.7
3.0
3.8
5.1
7.1
8.1
11
13
15
20
22
27
33
39
45
62
71
96
110
130
IDC
(3)
Spec
(mA) max.
300
280
260
240
210
170
160
140
120
120
110
95
88
83
77
64
61
50
50
42
40
37
Note:
=P3
is added to each part number to indicate tape and reel packaging.
