74VHC374 Octal D-Type Flip-Flop with 3-STATE Outputs
April 2007
74VHC374
Octal D-Type Flip-Flop with 3-STATE Outputs
Features
■
High Speed: t
PD
=
5.4ns (typ) at V
CC
=
5V
■
High noise immunity: V
NIH
=
V
NIL
=
28% V
CC
(Min.)
■
Power down protection is provided on all inputs
■
Low power dissipation: I
CC
=
4µA (Max) @ T
A
=
25°C
■
Pin and function compatible with 74HC374
tm
General Description
The VHC374 is an advanced high speed CMOS octal
flip-flop with 3-STATE output fabricated with silicon gate
CMOS technology. It achieves the high speed operation
similar to equivalent Bipolar Schottky TTL while main-
taining the CMOS low power dissipation. This 8-bit
D-type flip-flop is controlled by a clock input (CP) and an
output enable input (OE). When the OE input is HIGH,
the eight outputs are in a HIGH impedance state.
An input protection circuit ensures that 0V to 7V can be
applied to the input pins without regard to the supply
voltage. This device can be used to interface 5V to 3V
systems and two supply systems such as battery back
up. This circuit prevents device destruction due to mis-
matched supply and input voltages.
Ordering Information
Order
Number
74VHC374M
74VHC374SJ
74VHC374MTC
Package
Number
M20B
M20D
MTC20
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm
Wide
Surface mount packages are also available on Tape and Reel. Specify by appending the suffix letter “X” to the
ordering number. Pb-Free package per JEDEC J-STD-020B.
Connection Diagram
Pin Descriptions
Pin Names
D
0
–D
7
CP
OE
O
0
–O
7
Description
Data Inputs
Clock Pulse Input
3-STATE Output Enable Input
3-STATE Outputs
©1992 Fairchild Semiconductor Corporation
74VHC374 Rev. 1.3
www.fairchildsemi.com
74VHC374 Octal D-Type Flip-Flop with 3-STATE Outputs
Logic Symbol
IEEE/IEC
Functional Description
The VHC374 consists of eight edge-triggered flip-flops
with individual D-type inputs and 3-STATE true outputs.
The buffered clock and buffered Output Enable are
common to all flip-flops. The eight flip-flops will store the
state of their individual D inputs that meet the setup and
hold time requirements on the LOW-to-HIGH Clock (CP)
transition. With the Output Enable (OE) LOW, the con-
tents of the eight flip-flops are available at the outputs.
When the OE is HIGH, the outputs go to the high imped-
ance state. Operation of the OE input does not affect the
state of the flip-flops.
Truth Table
Inputs
D
n
H
L
X
X
H
=
HIGH Voltage Level
L
=
LOW Voltage Level
X
=
Immaterial
Z
=
High Impedance
=
LOW-to-HIGH Transition
CP
OE
L
L
H
Outputs
O
n
H
L
Z

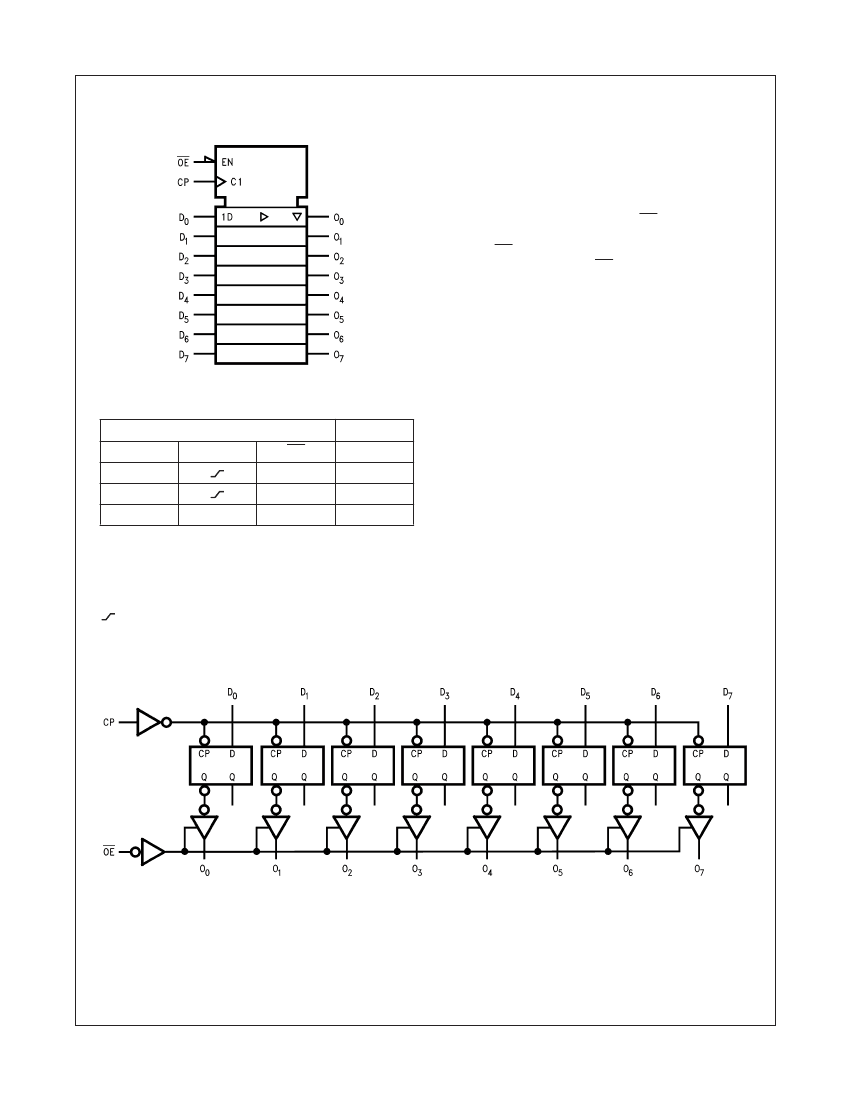

Logic Diagram
Please note that this diagram is provided only for the understanding of logic operations and should not be used to
estimate propagation delays.
Figure 1.
©1992 Fairchild Semiconductor Corporation
74VHC374 Rev. 1.3
www.fairchildsemi.com
2
74VHC374 Octal D-Type Flip-Flop with 3-STATE Outputs
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OUT
I
CC
T
STG
T
L
Supply Voltage
DC Input Voltage
DC Output Voltage
Input Diode Current
Output Diode Current
DC Output Current
DC V
CC
/GND Current
Storage Temperature
Parameter
Rating
–0.5V to +7.0V
–0.5V to +7.0V
–0.5V to V
CC
+ 0.5V
–20mA
±20mA
±25mA
±75mA
–65°C to +150°C
260°C
Lead Temperature (Soldering, 10 seconds)
Recommended Operating Conditions
(1)
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to absolute maximum ratings.
Symbol
V
CC
V
IN
V
OUT
T
OPR
t
r
, t
f
Supply Voltage
Input Voltage
Output Voltage
Operating Temperature
Input Rise and Fall Time,
V
CC
=
3.3V ± 0.3V
V
CC
=
5.0V ± 0.5V
Parameter
Rating
2.0V to +5.5V
0V to +5.5V
0V to V
CC
–40°C to +85°C
0ns/V
∼
100ns/V
0ns/V
∼
20ns/V
Note:
1. Unused inputs must be held HIGH or LOW. They may not float.
©1992 Fairchild Semiconductor Corporation
74VHC374 Rev. 1.3
www.fairchildsemi.com
3
74VHC374 Octal D-Type Flip-Flop with 3-STATE Outputs
DC Electrical Characteristics
T
A
=
25°C
Symbol
V
IH
V
IL
V
OH
–40°C to +85°C
Max.
Min.
1.50
0.7 x V
CC
0.50
0.3 x V
CC
0.50
0.3 x V
CC
1.9
2.9
4.4
2.48
3.80
V
V
Parameter
HIGH Level
Input Voltage
LOW Level Input
Voltage
HIGH Level
Output
Voltage
V
CC
(V)
2.0
3.0–5.5
2.0
3.0–5.5
2.0
3.0
4.5
3.0
4.5
Conditions
Min.
1.50
0.7 x V
CC
Typ.
Max.
Units
V
V
IN
=
V
IH
I
OH
=
–50µA
or V
IL
I
OH
=
–4mA
I
OH
=
–8mA
V
IN
=
V
IH
I
OL
=
50µA
or V
IL
1.9
2.9
4.4
2.58
3.94
2.0
3.0
4.5
V
OL
LOW Level
Output Voltage
2.0
3.0
4.5
3.0
4.5
0.0
0.0
0.0
0.1
0.1
0.1
0.36
0.36
±0.25
0.1
0.1
0.1
0.44
0.44
±2.5
V
I
OL
=
4mA
I
OL
=
8mA
V
IN
=
V
IH
or V
IL
;
V
OUT
=
V
CC
or GND
V
IN
=
5.5V or GND
V
IN
=
V
CC
or GND
I
OZ
3-STATE Output
Off-State
Current
Input Leakage
Current
Quiescent
Supply Current
5.5
µA
I
IN
I
CC
0–5.5
5.5
±0.1
4.0
±1.0
40.0
µA
µA
Noise Characteristics
T
A
=
25°C
Symbol
V
OLP(2)
V
OLV(2)
V
IHD(2)
V
ILD(2)
Parameter
Quiet Output Maximum
Dynamic V
OL
Quiet Output Minimum
Dynamic V
OL
Minimum HIGH Level
Dynamic Input Voltage
Maximum LOW Level
Dynamic Input Voltage
V
CC
(V)
5.0
5.0
5.0
5.0
Conditions
C
L
=
50pF
C
L
=
50pF
C
L
=
50pF
C
L
=
50pF
Typ.
0.6
–0.6
Limits
0.9
–0.9
3.5
1.5
Units
V
V
V
V
Note:
2. Parameter guaranteed by design.
©1992 Fairchild Semiconductor Corporation
74VHC374 Rev. 1.3
www.fairchildsemi.com
4
