89647-001LF datasheet, PDF - EEWORLD Datasheet

89647-001LF: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug, LEAD FREE; CategoryThe connector The connector; File Size165KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89647-001LF Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN (150)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	89647
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80
Base Number Matches	1

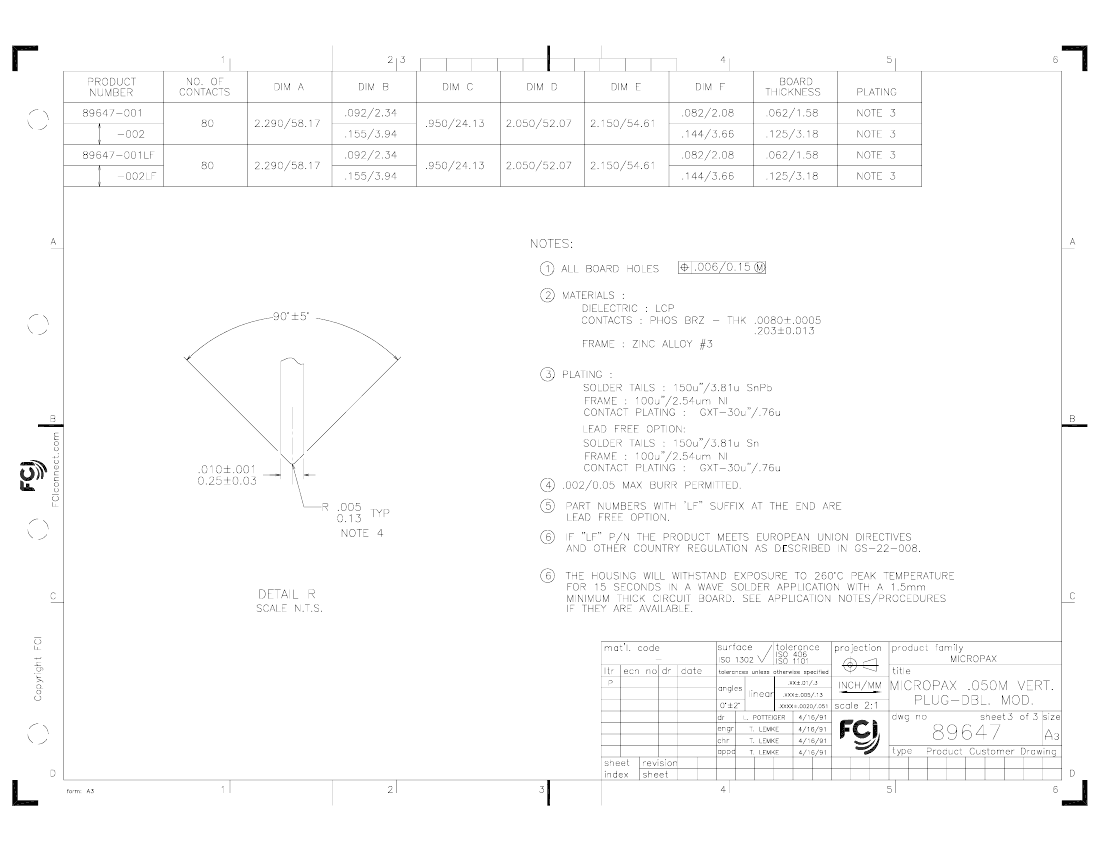

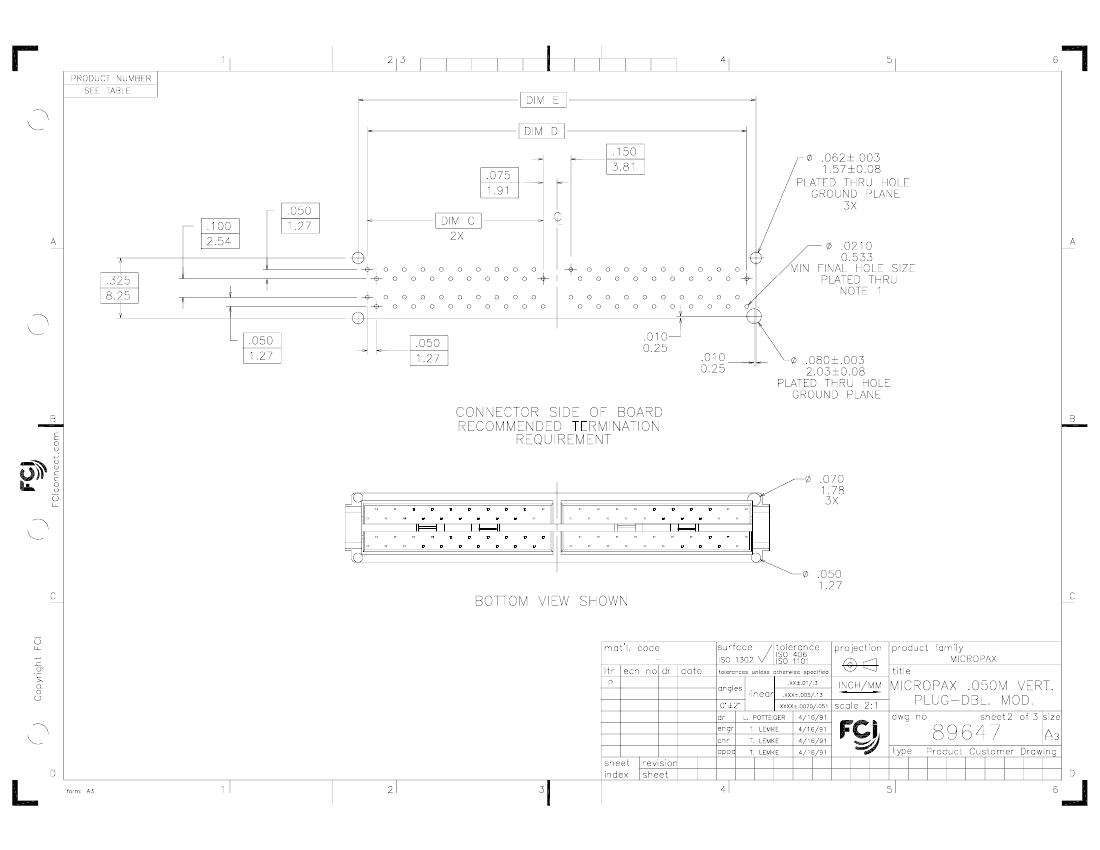

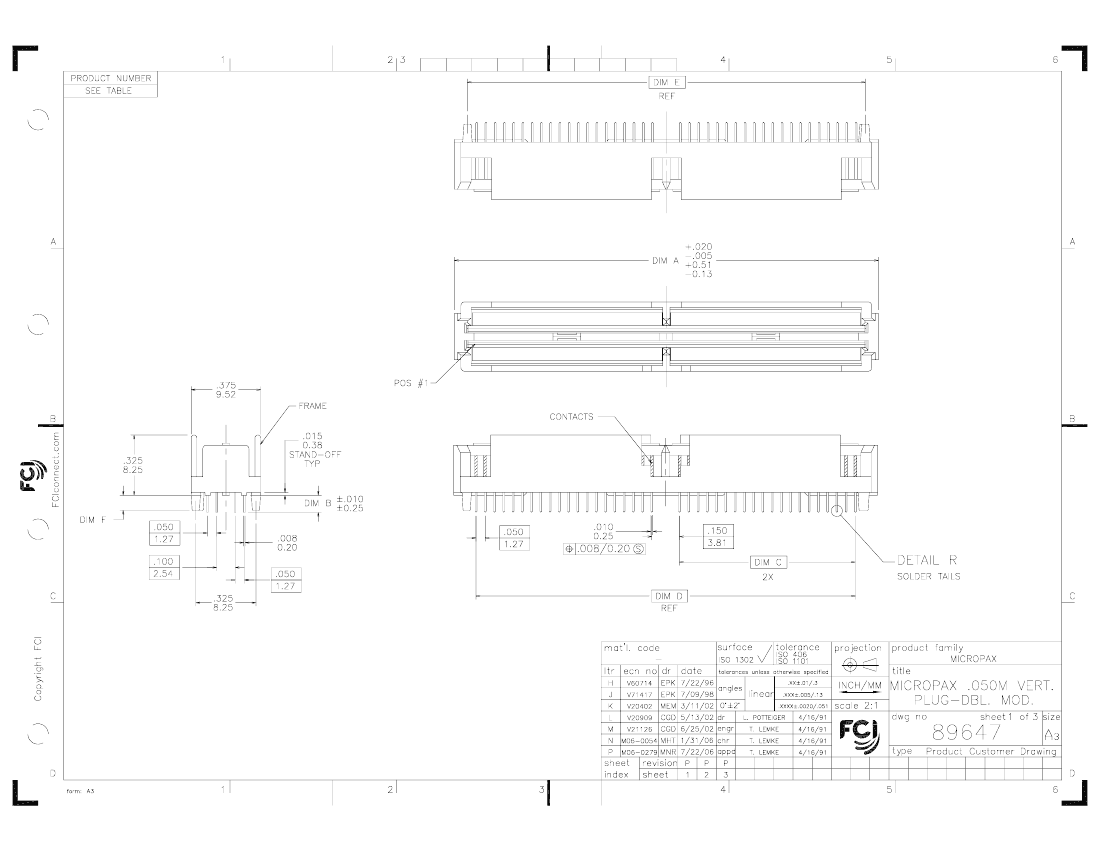

PDM: Rev:P

STATUS:

Released

Printed: Jul 22, 2010

	89647-001LF	89647-001	89647-002	89647-002LF
Description	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug, LEAD FREE	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN (150)	TIN LEAD (150)	TIN LEAD (150)	TIN (150)
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	89647	89647	89647	89647
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	80	80	80
Base Number Matches	1	1	1	1
