5088-X-1100-A-1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5088-X-1100-A-1

5088-X-1100-A-1: DescriptionMains Power Connector, 4A, 250VAC, Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric Compare View All

5088-X-1100-A-1 Overview

Mains Power Connector, 4A, 250VAC, Female, Solder Terminal, Socket

5088-X-1100-A-1 Parametric

Parameter Name	Attribute value
Maker	SCHURTER
Reach Compliance Code	compliant
Other features	STANDARD: IEC 60320-2-2; EN 60320-2-2; UL 94V-0; CSA; VDE
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	4A, 250VAC
Manufacturer's serial number	5088
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	PA6
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

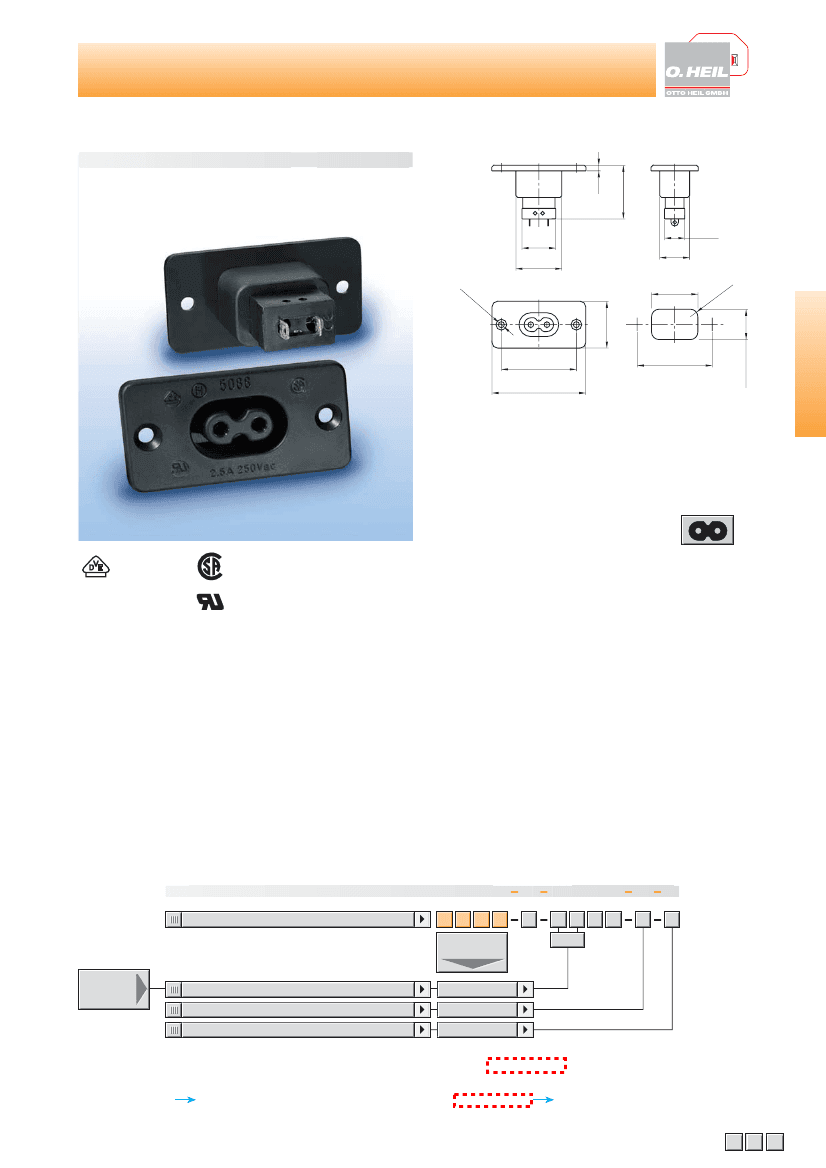

Preview

Download Datasheet

View All

GERÄTESTECKDOSE T 70°C

appliance outlet

No. 5088

28.6

24.5

10.8

24.7

+0.2

Montageausbruch

panel cutout

Geräteschutzklasse II / equipment class II

IEC 60320-2-2 / EN 60320-2-2 / VDE 0625-2-2

2,5A/250Vac

4A/250Vac

socket:

Polyamide PA6 – UL94V-0

terminals:

copper alloy, tin-plated

Sockel:

Polyamid PA6 – UL94V-0

Anschlüsse:

Kupferlegierung, verzinnt

Gängiger Artikel/selling article

Artikel-Nr.

/article-code

5 0 8 8

Varianten

choose from

1 1 0 0

Anschlüsse

terminals

L, N

Farbe/colour

Bauform / design

A, B, D

1, 2

Siehe auch “Schutzdeckel” auf Seite 135.

Auch mit angecrimpten Verdrahtungsleitungen nach Ihren Spezifikationen erhältlich.

Bitte beachten Sie unsere passenden Gegenstücke auf Seite 100

Bestellnummernsystem

Ausklappseite in unserem Katalog

see also “protection cover” on page 135.

also available with crimped-on leads to your specifications.

please note our mating parts on page 100

order code system

folding page in our cataloque

0 8 9

16.2

+0.2
