909 Series SPDT Latching
SMA
C M A
Commercial
Military
Avionics
S
Space
RF Characteristics
Frequency
GHz
0-1
1-4
4-8
8-12.4
12.4-18
VSWR
(max)
1.15
1.25
1.35
1.45
1.45
Isolation
dB (min)
80
80
70
60
60
Ins. Loss
dB (max)
0.15
0.20
0.35
0.45
0.45
909 Series SPDT Latching,
SMA
Specifications
Operating Voltage:
(across temperature range)
28 Vdc (20-30 Vdc)
Coil Current (max @ nom. Vdc & 20°C):
28 Vdc 95 mA
Switching Time:
20 mS maximum
Operating Temperature:
-55ºC to +85ºC
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
20g’s sine/random
Mechanical Shock, Non-Operating:
50G, 1/2 Sine, 11mS
Nominal Weight:
2.0 oz., (57g.)

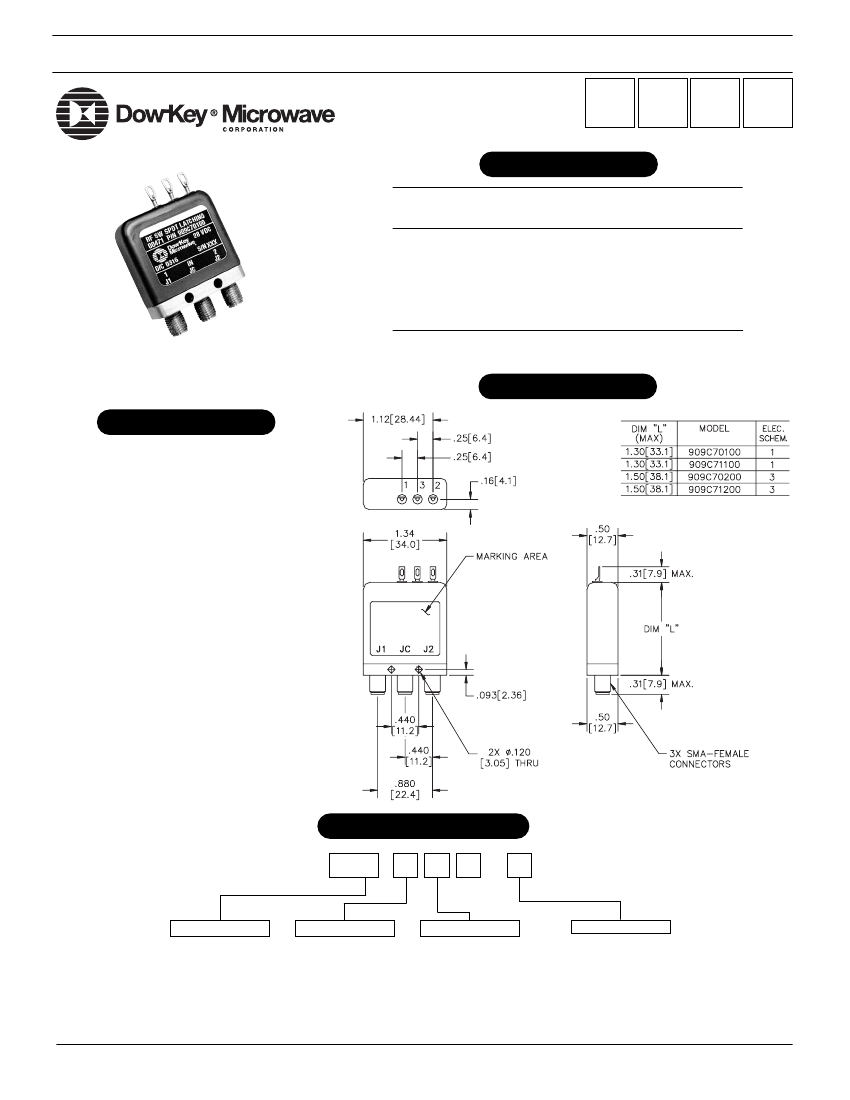

Mechanical
909C70100 Shown
Part Number Selection
909C
7
01
00
-
XX

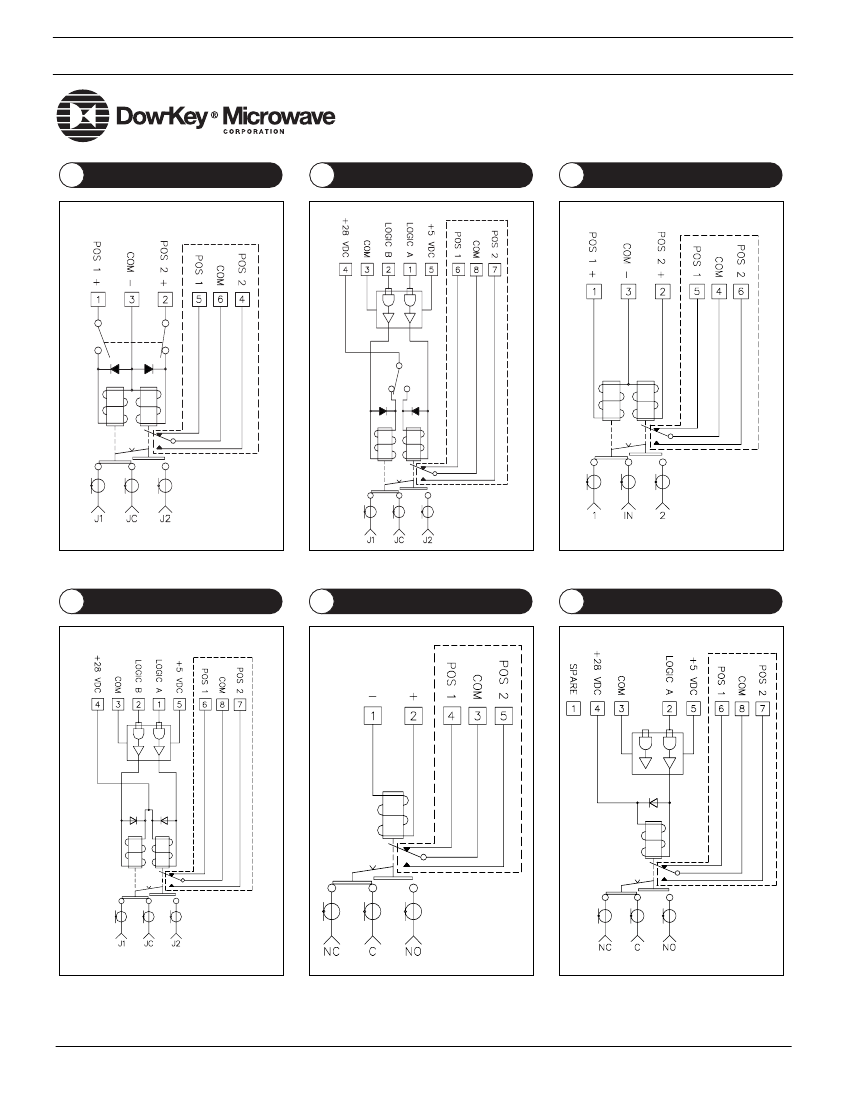

For Electrical Schematic
see page # 1-14
Family
Connectors
Voltage/Actuator
Options
909C
= SPDT Latching
7
= SMA Female
01
= 28 Vdc
02
= 28 Vdc with SPDT Indicators
11
= 28 Vdc Pulse Latch
12
= 28 Vdc Pulse Latch with
with SPDT Indicators
30
= TTL High
50
= Common Positive
60
= High Power
