N74F651D

Description
Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDSO24
Categorylogic    logic
File Size610KB,13 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric View All

N74F651D Overview

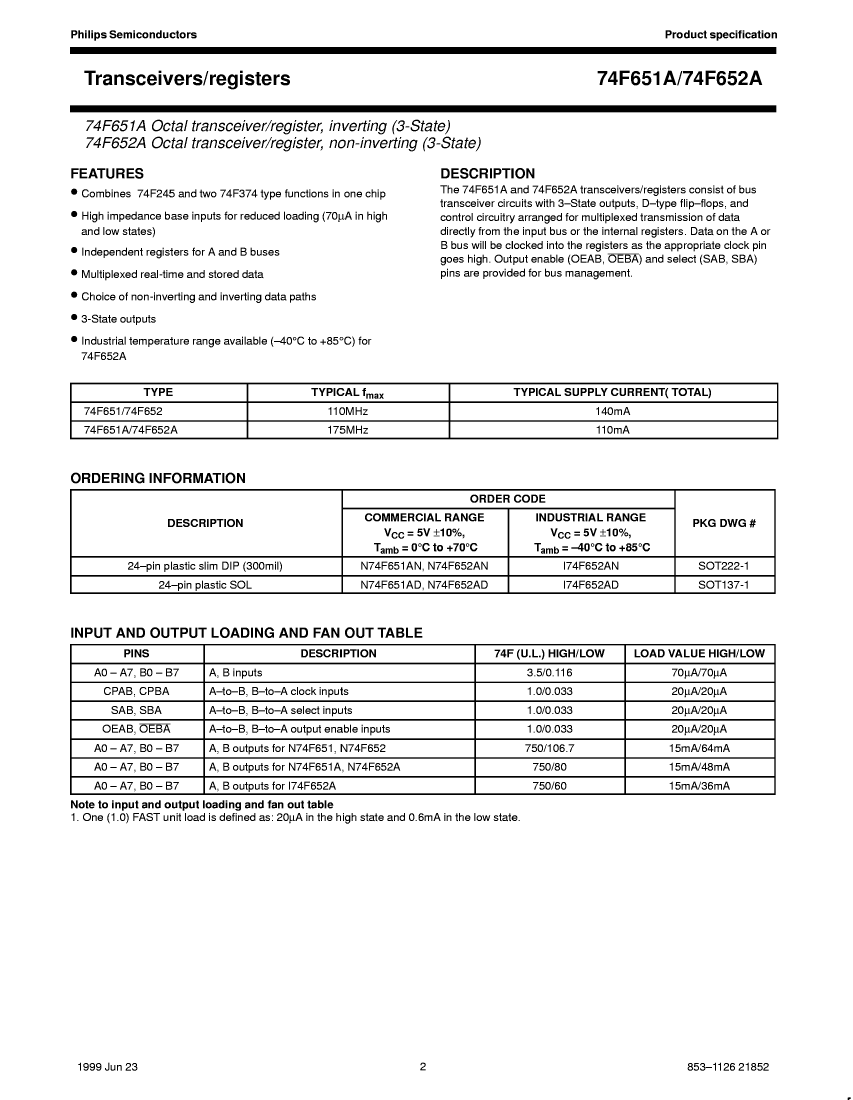

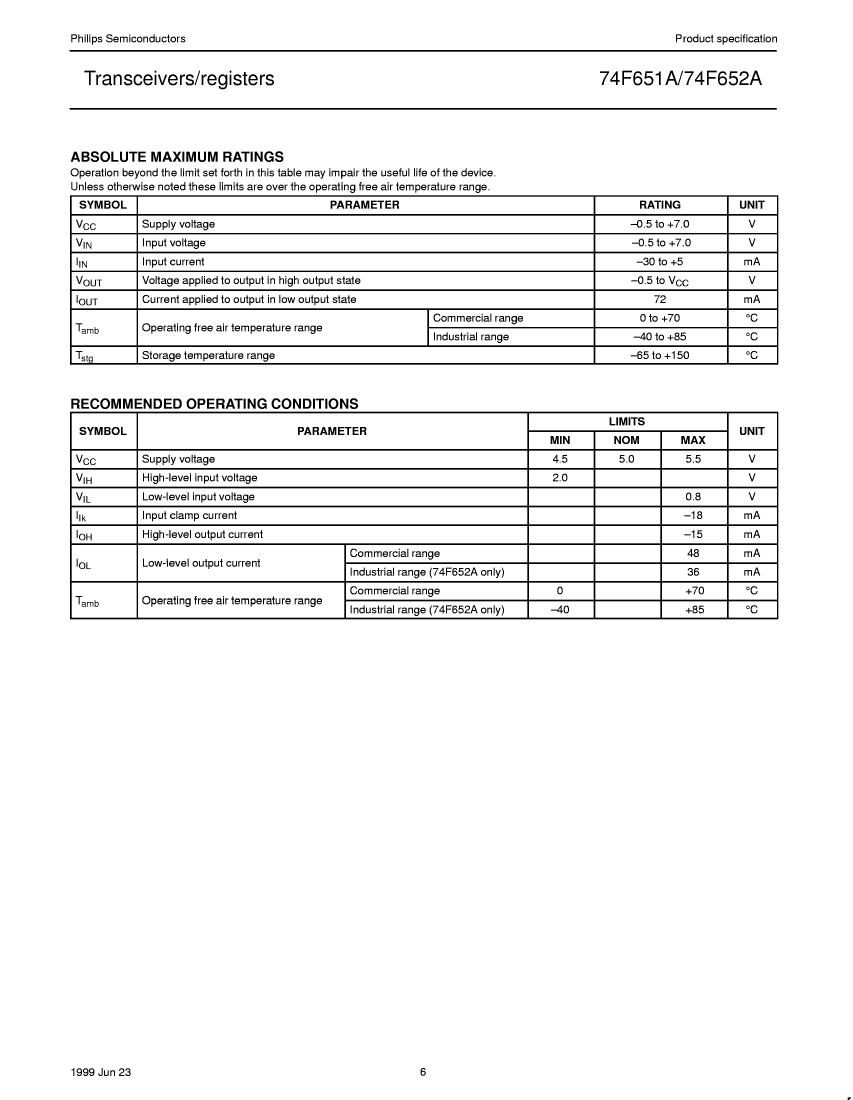

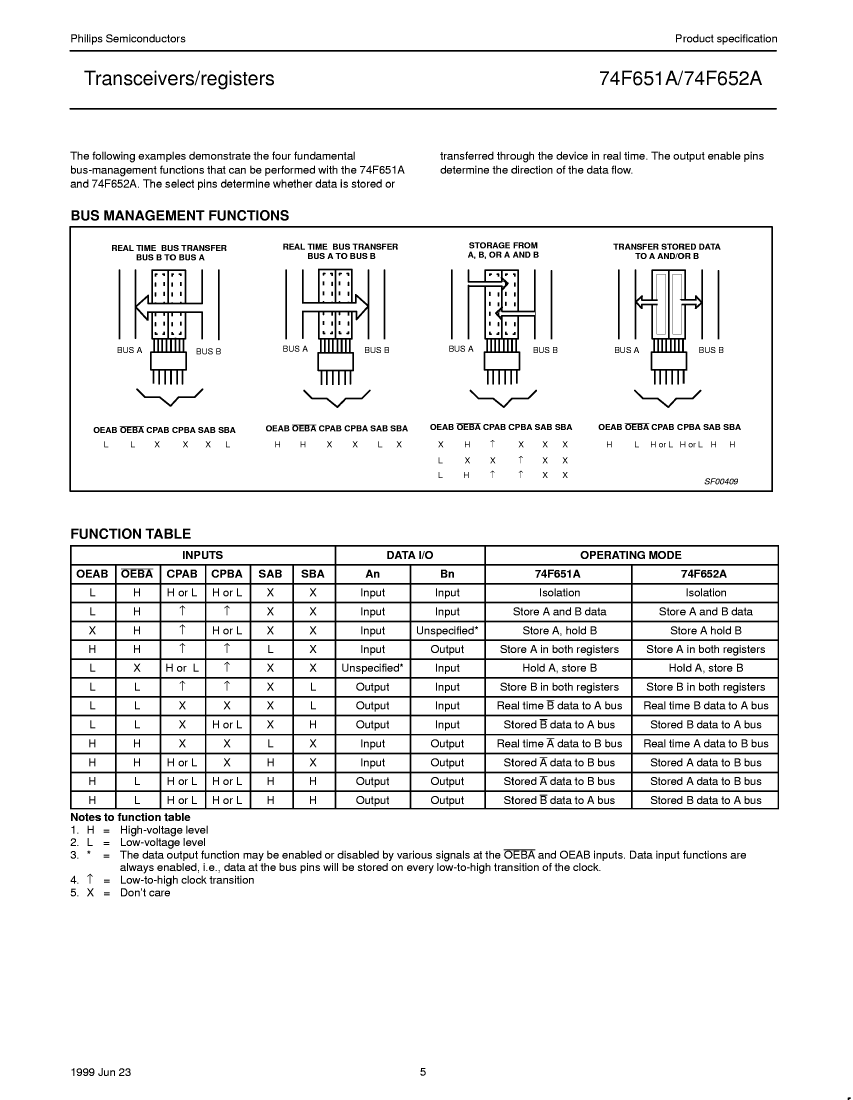

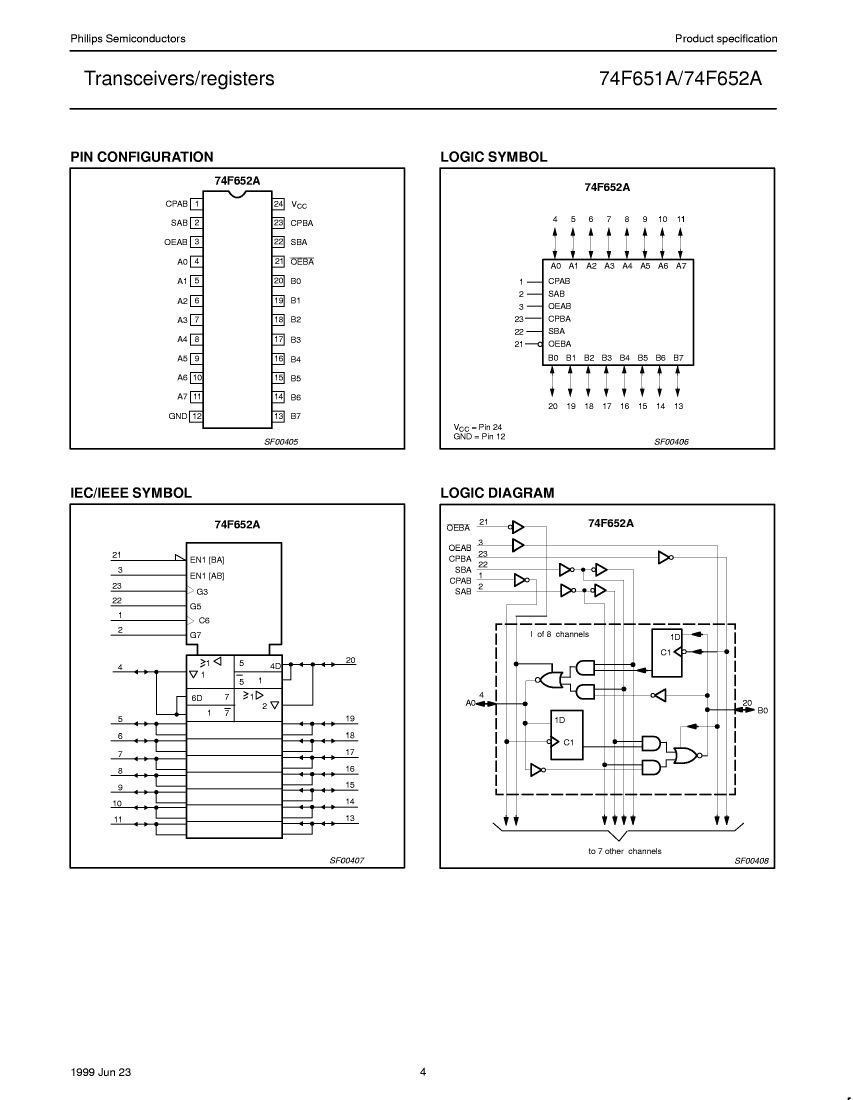

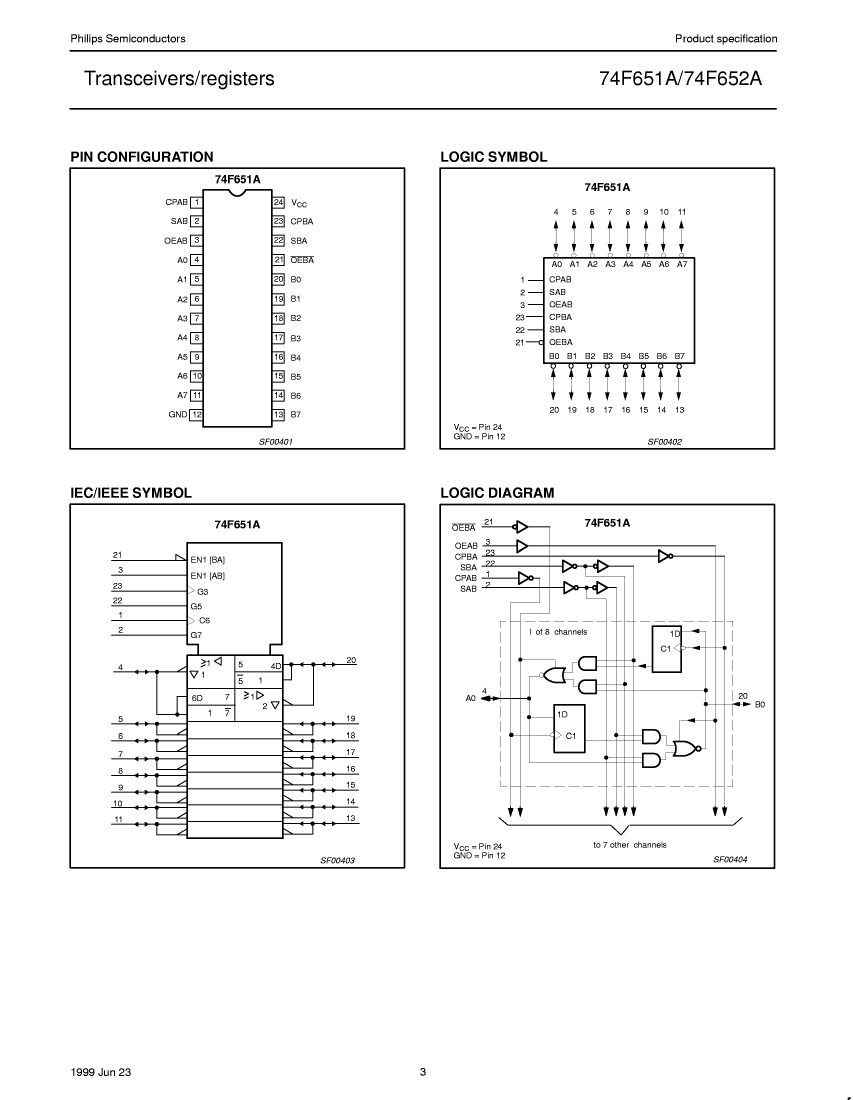

Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDSO24

N74F651D Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
package instructionSOP, SOP24,.4
Reach Compliance Codeunknown
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
JESD-30 codeR-PDSO-G24
JESD-609 codee0
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
MaximumI(ol)0.064 A
Number of digits8
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP24,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5 V
Maximum supply current (ICC)240 mA
Prop。Delay @ Nom-Sup12.5 ns
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
Base Number Matches1
