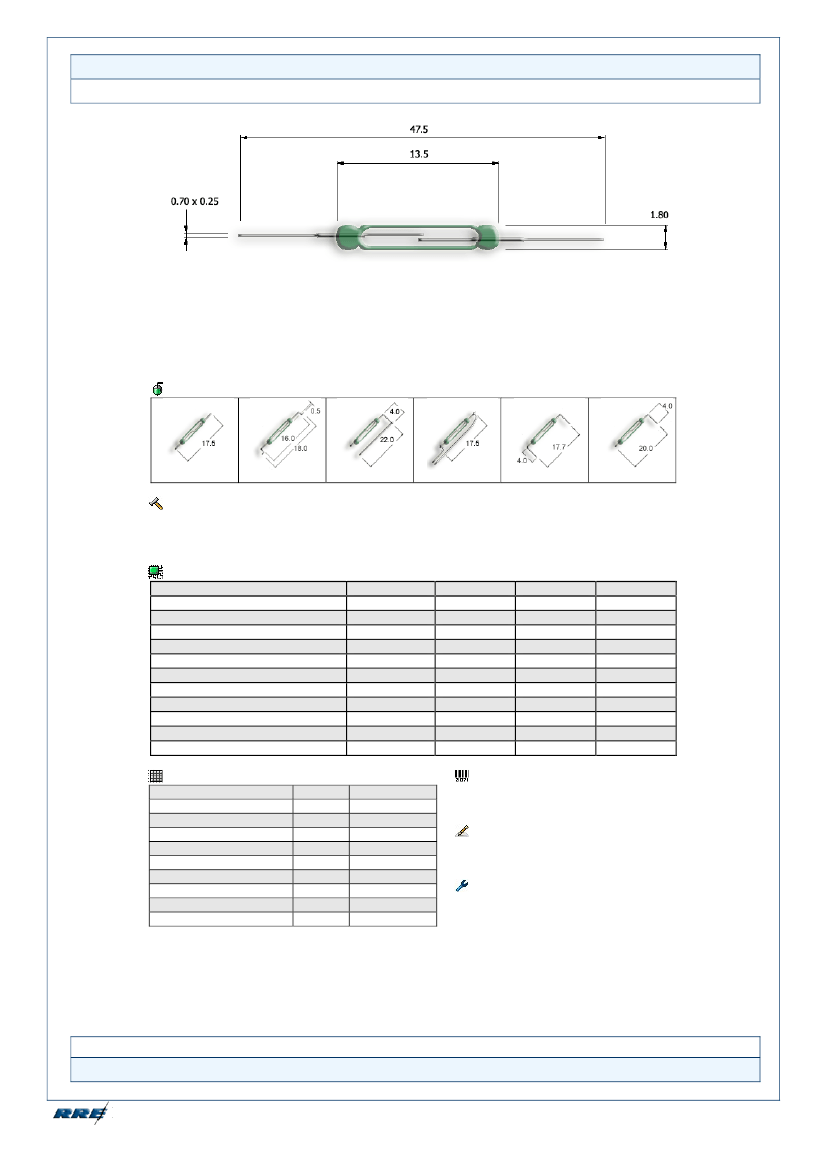

RM-1318 Reduced-miniature Reed Switch
Form A, Center Contact, Release AT Configurable
All dimensions in mm
This reed switch is designed for applications where a size restriction is present, but higher load switching
and current carrying capability is required. The blades have a good flexibility, for fast operation and good
contact force, and can carry up to 1.5 A. The flattened leads are useful for orienting the internal blades to
face one way while soldering, welding etc., for maximum in-group sensitivity. The three differential ranges
available, cover a wide range of release specific applications. This reed switch is Lead (Pb) free and RoHS
compliant.
Formations Available
Cropped
SMD
Welded
Soldered
Goal post
L Formed
Applications
This reed switch is suitable for use in the following applications and many others: radio transmitters, instant
water heaters, defective lamp detection, inclination sensors, pressure gauges, lake current measurement,
fuel pumps, electric fishing reels, LEGO sensors...
Electrical
Sub code
Operate Range
Release Range
Contact Rating (max)
Switching Current (max)
Carry Current (max)
Switching Voltage (max)
Switching Voltage (max)
Breakdown Voltage (Min)
Initial Contact Resistance (max)
Insulation Resistance (min)
Capacitance (min)
Miscellaneous
Operate Time (max)
Bounce Time (max)
Release Time (max)
Resonance Frequency
Operating Frequency
Operating Temperature
Test Coil
Lead out plating
Shock Resistance
Vibration (10-2000Hz)
AT
AT
W/ VA
A
A
V
DC
V
AC
V
DC
m
pF
L
10 – 40
4 – 20
10.0
0.5
1.50
180
130
200
100
10
11
0.2
M
10 - 40
6 – 25
10.0
0.5
1.50
180
130
200
120
10
11
0.2
H
10 – 40
7.5 – 30
10.0
0.5
1.50
180
130
200
150
10
11
0.2
ms
ms
ms
Hz
Hz
°C
g
g
0.5
0.15
0.15
>2000
500
-40 to +200
717 102 004
Sn (Pb free)
30
20
Ordering Code
RM-1318-(Sub
Code)-(Start
(Finish Operate AT)
Operate
AT)-
Example
RM-1318-M-10-14
Denotes 10-14 Operate AT band, with a
minimum Release AT of 6.
Other Configurations Available
Dynamic contact resistance limit, Higher insulation
resistance, Special release limits, Gold plates leads
Please refer to our reed switch
usage notes
Due to continual improvement, specifications are subject to change without notice
