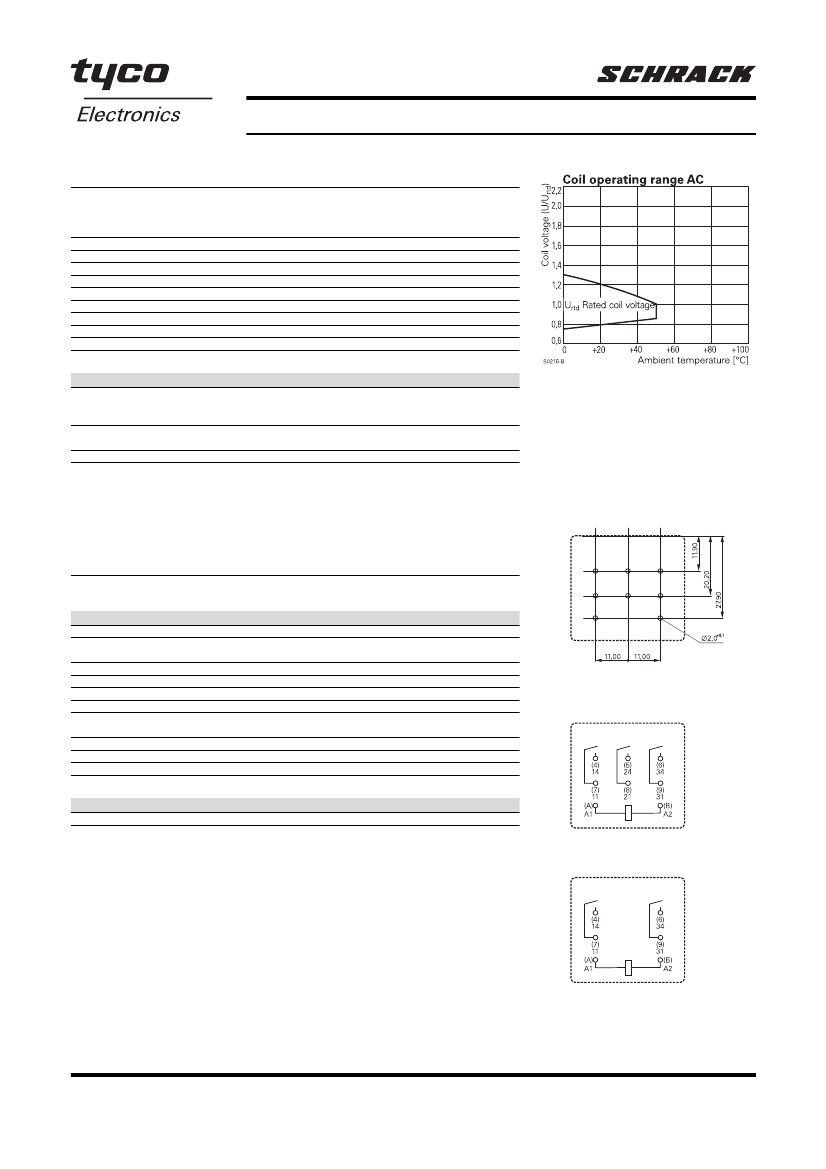

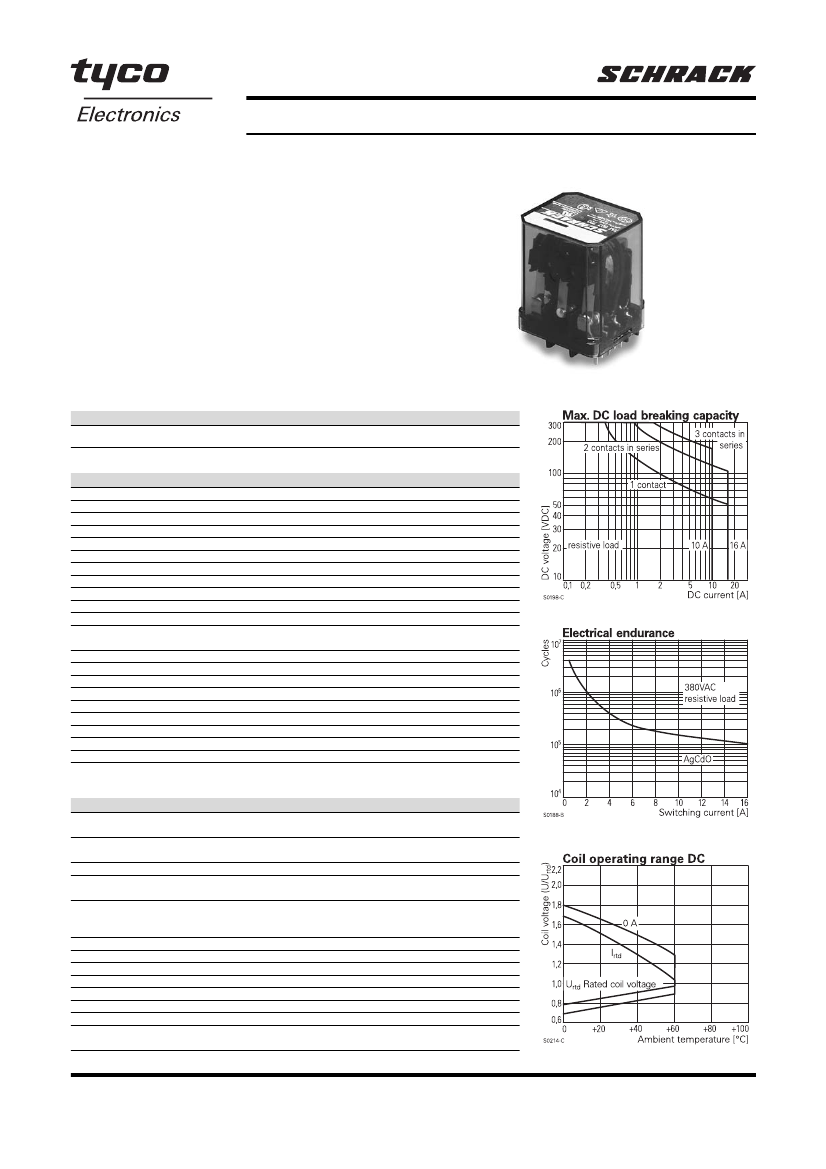

General Purpose Relays
Power Relay RM 5/6 3 mm
I
I
I
I
I
I
2 / 3 pole 10 / 16 A, 2 NO or 3 NO contacts
3 mm contact gap
DC- or AC coil
Push-to-test-button
Plug-in version, PCB terminals, chassis- or DIN-rail mount
RoHS compliant (Directive 2002/95/EC)
as per product date code 0415
Applications
Power supplies, pump control
F0164-A
Approvals
V
REG.-Nr.
of
40003144,
types on request
Z
E214025
Technical data approved
Contact data
RM5
RM6
Contact configuration
2 NO
3 NO
Contact set
single contact
Type of interruption
full disconnection
Rated current
16 A
10 A
Rated voltage / max.switching voltage AC
400/440 VAC
230/400 VAC
Maximum breaking capacity AC
6000 VA
3800 VA
Limiting making capacity, max 20 ms
25 A
25 A
Contact material
AgCdO
Contact gap
3 mm
Mechanical endurance
20x10
6
cycles
Rated frequency of operation with / without load
16/100 min
-1
Contact
Type
RM5.
RM50
RM5.
RM50
RM6.
RM60
RM6.
RM6.
ratings
Load
16 A, 415 VAC, UL
16 A, 230/400 VAC, cosϕ=1, 35°C, VDE
16 A, 250 VAC, general purpose, UL
10 A, 48 VDC, 70°C, VDE, UL
5 A, 400 VAC, resistive, UL
10 A, 230/400 VAC, cosϕ=1, 35°C, VDE
10 A, 300 VAC, resistive, UL
10 A, 250 VAC, general purpose, UL
Cycles
100x10
3
100x10
3
30x10
3
30x10
3
100x10
3
100x10
3
100x10
3
30x10
3
Coil data
Rated coil voltage range DC coil
AC coil
Coil power DC coil
AC coil
Operative range
6...220 VDC
6...400 VAC
1.6 W
2.8 VA
1
Coil versions, DC-coil
Coil code
Rated
Operate
Release
Coil
Rated coil
STD LED PD* LED+
voltage
voltage
voltage
resistance
power
bipolar
PD*
VDC
VDC
VDC
Ohm
W
006 L06 0A6 LA6
6
4.5
0.6
24+10%
1.5
012 L12 0B2 LB2
12
9.0
1.2
86+10%
1.7
+
024 L24 0C4 LC4
24
18.0
2.4
345+10%
1.7
048 L48 0E8 LE8
48
36.0
4.8
1340+10%
1.7
060 L60 0G0 LG0
60
45.0
6.0
2200+10%
1.6
110 M10 1B0 MB0
110
82.5
11.0
7300+10%
1.7
221 N21 2C1 NC1
220
165.0
22.0
30000+15%
1.6
All figures are given for coil without preenergization, at ambient temperature +23°C
*) Protection diode PD; standard polarity: +A1 / -A2
1
Datasheet
Rev. FK1
Issued 2006/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Power Relay RM 5/6 3 mm
(Continued)
Coil versions, AC-coil 50/60 Hz
Coil code
Rated
STD
LED
voltage
Operate
Release
Coil
Rated coil
voltage
voltage
resistance
power
50/60Hz
50/60Hz
50/60Hz
VAC
VAC
VAC
Ohm
VA
506
R06
6
4.8
2.4
4.7+10%
2.86/2.36
512
R12
12
9.6
4.8
19.5+10%
2.71/2.27
+
524
R24
24
19.2
9.6
80+10%
2.62/2.00
548
R48
48
38.4
19.2
320+10%
2.60/2.17
560
R60
60
48.0
24.0
500+10%
2.62/2.20
615
S15
115
92.0
46.0
1850+10%
2.65/2.22
+
730
T30
230
184.0
92.0
7500+10%
2.69/2.26
900
V00
400
320.0
160.0
23500+15%
2.61/2.20
All figures are given for coil without preenergization, at ambient temperature +23°C
Insulation
Dielectric strength coil-contact circuit
open contact circuit
adjacent contact circuits
Clearance / creepage coil-contact circuit
adjacent contact circuits
Material group of insulation parts
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
adjacent contact circuits
Rated insulation voltage
2500 V
rms
2500 V
rms
2500 V
rms
W
4/14.9 mm
W
6.1/7.3 mm
W
IIIa
basic
basic
basic
250 / 400 V
1)
PCB layout / terminal assignment
Bottom view on pins
1)
Pollution degree
3
Rated voltage system
240/400 V
Overvoltage category
III
in combination with socket RM 78704 or isolated quick connects
Other data
RoHS - Directive 2002/95/EC
compliant as per product date code 0415
Ambient temperature range DC coil
-45...+60°C
AC coil
-45...+50°C
Operate- / release time
15/10 ms
Bounce time NO / NC contact
4 ms
Vibration resistance (function) NO / NC contact
12 g, 30...150 Hz
Category of protection
RTI - dust protected
Mounting position
versions with test button not to be
mounted with button on top
Resistance to soldering heat
270°C / 10 s
Relay weight
81 g
Packaging unit
10/25 pcs
S0269-AF
3 NO contacts
Accessories
For details see datasheet
Accessories Power Relay RM
2 NO contacts
S0269-AC
S0269-AE
2
Datasheet
Rev. FK1
Issued 2006/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Power Relay RM 5/6 3 mm
(Continued)
Dimensions
Plain cover, plug-in version
PCB version
S0298-BF
S0298-BG
Cover with mounting brackets, 6.3 mm quick connect (4.8 mm available)
Cover with DIN-snap-on attachement (6.3 mm quick connect only)
horizontal
vertical
S0298-BH
S0298-BI
S0298-BJ
Product key
R M
Type
Contact configuration
5
2 NO contacts, 16 A
6
3 NO contacts, 10 A
Version
0
AgCdO, without test button, without mechanical indicator
3
AgCdO, with test button, without mechanical indicator
Enclosure
2
plain cover, 4.8 mm quick connect terminals
3
cover with mounting brackets, 4.8 mm quick connect terminals
5
cover with mounting brackets, 6.3 mm quick connect terminals
7
PCB version
8
cover with DIN-snap-on attachment, horizontal, 6.3 mm quick connect terminals
9
cover with DIN-snap-on attachment, vertical, 6.3 mm quick connect terminals
Coil
Coil code: please refer to coil versions table, preferred types in bold print
3
Datasheet
Rev. FK1
Issued 2006/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Power Relay RM 5/6 3 mm
(Continued)
Product key
RM502024
RM502524
RM502615
RM502730
RM503024
RM503615
RM505024
RM505615
RM505730
RM507024
RM507524
RM507615
RM507730
RM535024
RM535524
RM602024
RM602615
RM605730
RM607024
RM607524
RM607615
RM607730
RM632024
RM632730
RM635024
RM637024
Contacts
2 NO contacts
16 A
Version
without
test button
without
mech.indicator
Enclosure
plain cover
quick c. 4.8 mm
mounting brackets
quick c. 4.8 mm
mounting brackets
quick c. 6.3 mm
PCB version
Coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
AC-coil
DC-coil
3 NO contacts
10 A
with test button
w/o mech.indicator
without
test button
without
mechanical ind.
mounting brackets
quick c. 6.3 mm
plain cover
quick c. 4.8 mm
mount.br. q.c.6.3
PCB version
with
test button
without
mech.indicator
plain cover
quick c. 4.8 mm
mount.br. q.c.6.3
PCB version
Coil
24 VDC
24 VAC
115 VAC
230 VAC
24 VDC
115 VAC
24 VDC
115 VAC
230 VAC
24 VDC
24 VAC
115 VAC
230 VAC
24 VDC
24 VAC
24 VDC
115 VAC
230 VAC
24 VDC
24 VAC
115 VAC
230 VAC
24 VDC
230 VAC
24 VDC
24 VDC
Part number
6-1393146-1
6-1393146-2
6-1393146-3
6-1393146-4
8-1393148-0
6-1393146-5
8-1393148-3
6-1393146-6
9-1393149-9
0-1393844-1
5-1415008-1
6-1415015-1
0-1415008-1
7-1393146-2
9-1393148-0
0-1393844-4
9-1393148-7
7-1393146-6
0-1393844-6
7-1393146-8
8-1415015-1
7-1393146-9
8-1393146-0
0-1393149-7
7-1393107-7
0-1393149-9
4
Datasheet
Rev. FK1
Issued 2006/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
