5962-9759901QXX datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-9759901QXX

5962-9759901QXX: DescriptionFlash PLD, 24ns, CMOS, CPGA160, PGA-160; CategoryProgrammable logic devices Programmable logic; File Size347KB，16 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-9759901QXX Overview

Flash PLD, 24ns, CMOS, CPGA160, PGA-160

5962-9759901QXX Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	PGA
package instruction	PGA,
Contacts	160
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
maximum clock frequency	50 MHz
JESD-30 code	S-CPGA-P160
Dedicated input times	1
Number of I/O lines	128
Number of terminals	160
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Programmable logic type	FLASH PLD
propagation delay	24 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
Base Number Matches	1

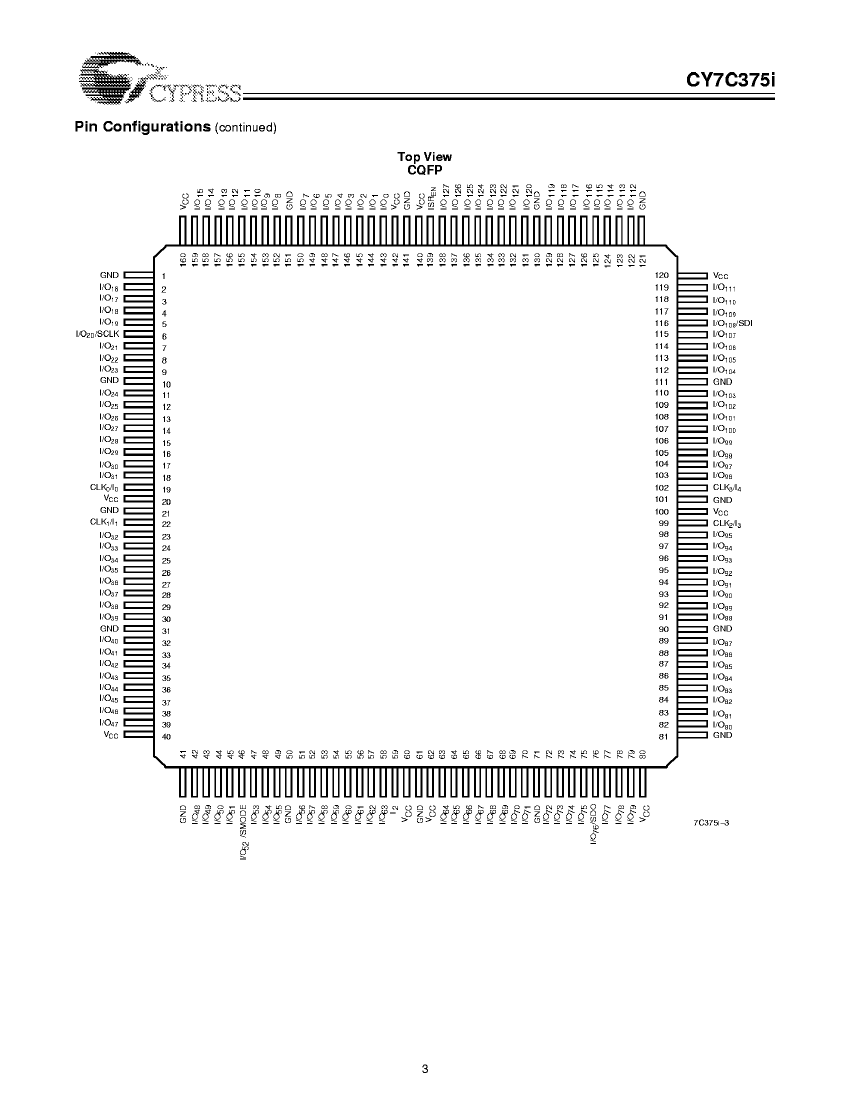

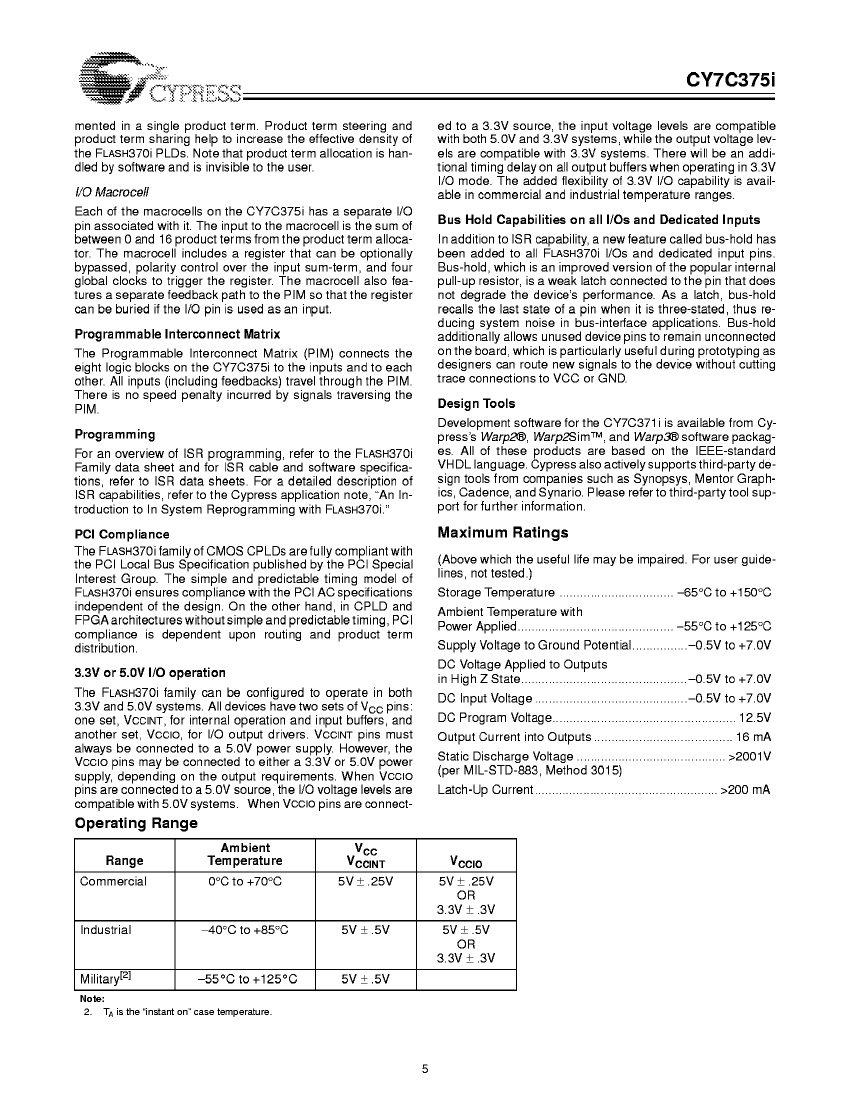

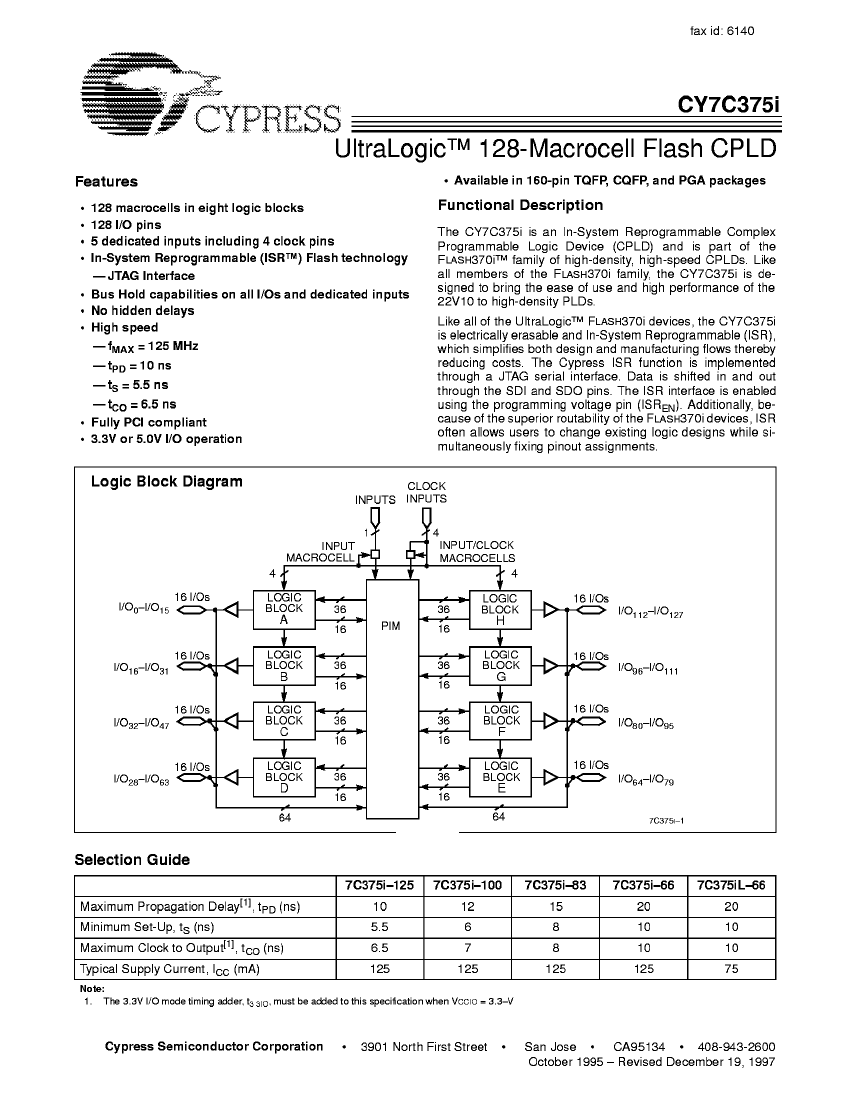

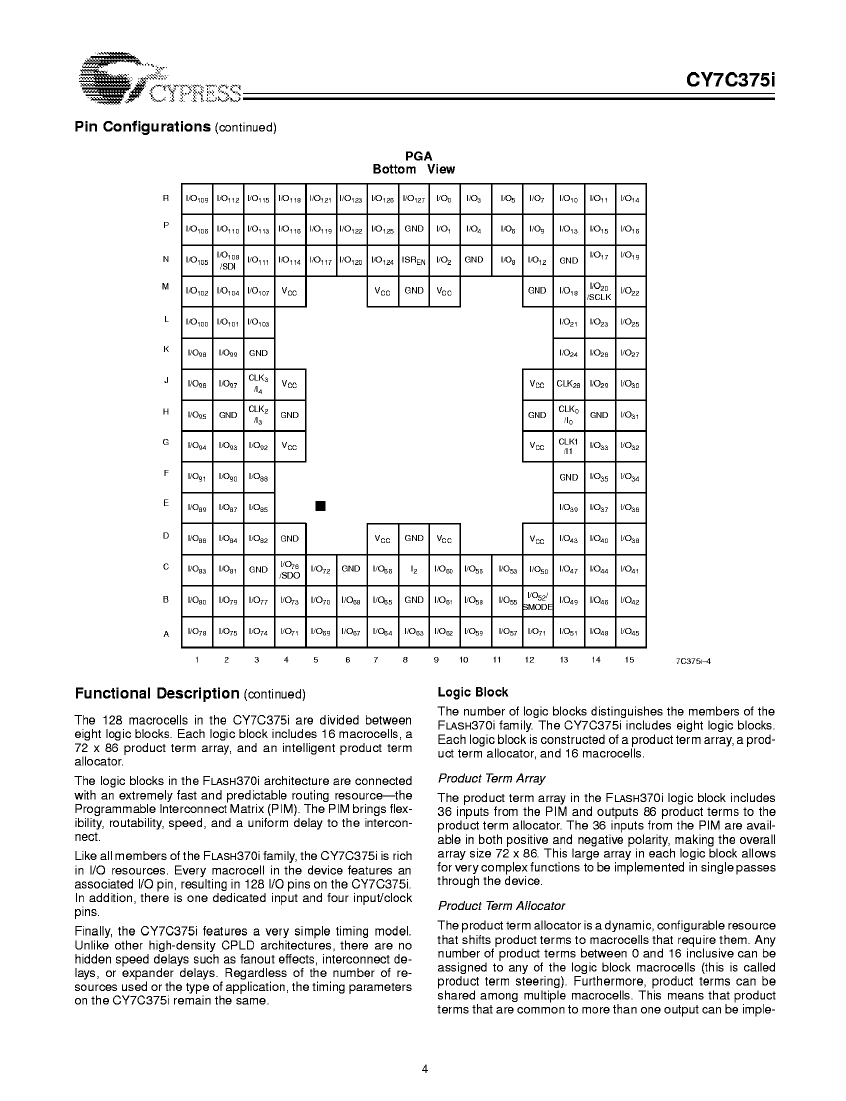

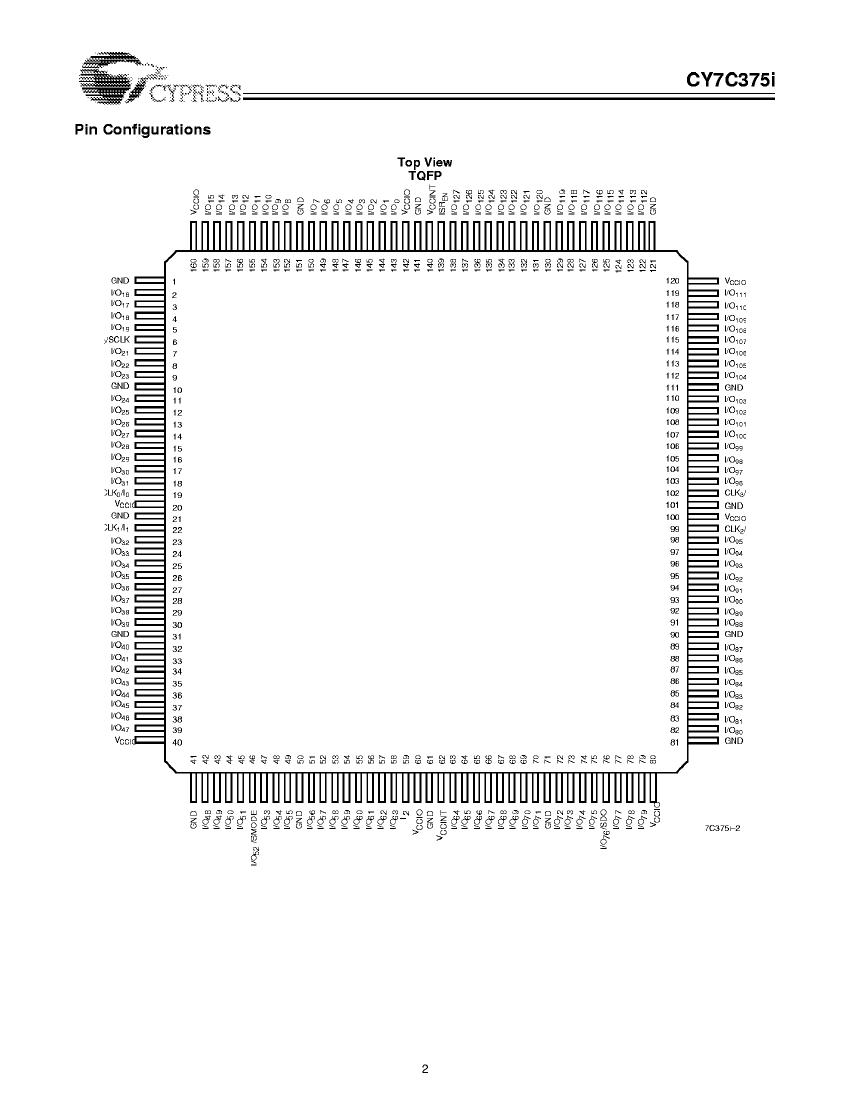

Preview

Download Datasheet

View All

5962-9759901QXX Related Products

	5962-9759901QXX	5962-9759901QZX	5962-9759902QZX	5962-9759901QXC	5962-9759902QXX
Description	Flash PLD, 24ns, CMOS, CPGA160, PGA-160	Flash PLD, 24ns, CMOS, CQFP160, CAVITY-UP, CERAMIC, QFP-160	Flash PLD, 19ns, CMOS, CQFP160, CAVITY-UP, CERAMIC, QFP-160	Flash PLD, 24ns, 128-Cell, CMOS, CPGA160, PGA-160	Flash PLD, 19ns, CMOS, CPGA160, PGA-160
Parts packaging code	PGA	QFP	QFP	PGA	PGA
package instruction	PGA,	QFP,	QFP,	PGA, PGA160M,15X15	PGA,
Contacts	160	160	160	160	160
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
maximum clock frequency	50 MHz	50 MHz	62.5 MHz	50 MHz	62.5 MHz
JESD-30 code	S-CPGA-P160	S-CQFP-G160	S-CQFP-G160	S-CPGA-P160	S-CPGA-P160
Dedicated input times	1	1	1	1	1
Number of I/O lines	128	128	128	128	128
Number of terminals	160	160	160	160	160
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	1 DEDICATED INPUTS, 128 I/O	1 DEDICATED INPUTS, 128 I/O	1 DEDICATED INPUTS, 128 I/O	1 DEDICATED INPUTS, 128 I/O	1 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	QFP	QFP	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	FLATPACK	GRID ARRAY	GRID ARRAY
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
propagation delay	24 ns	24 ns	19 ns	24 ns	19 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	GULL WING	GULL WING	PIN/PEG	PIN/PEG
Terminal location	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR
Base Number Matches	1	1	1	1	1
Maker	Cypress Semiconductor	Cypress Semiconductor	-	-	Cypress Semiconductor
Other features	-	FOR SHIPPING METHOD CONTACT SALES	FOR SHIPPING METHOD CONTACT SALES	YES	-
