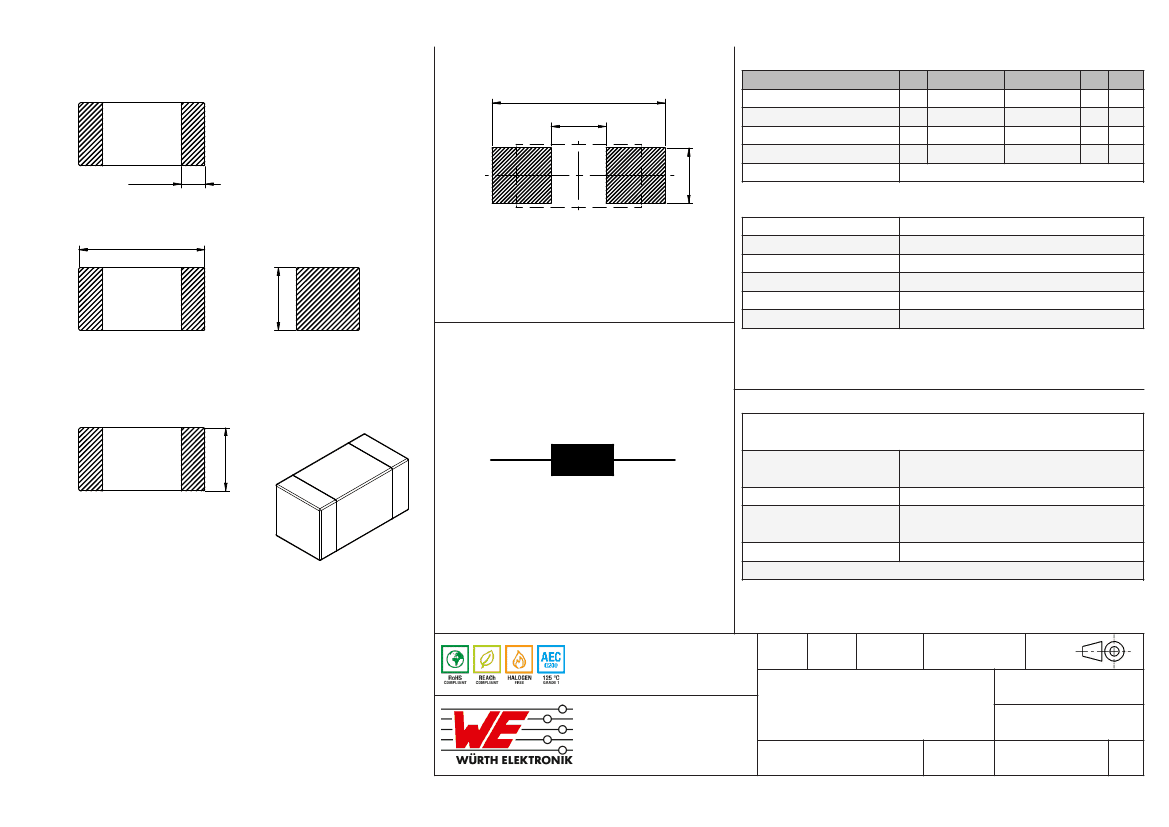

Do not use this part constantly beyond the Rated Current, as this will create excessive heat and can
harm the component
Ambient Temperature (referring
to I
R
)
Operating Temperature
Storage Conditions (in original
packaging)
Moisture Sensitivity Level (MSL)
Scale - 20:1
-55 up to +85 °C
-55 up to +125 °C
< 40 °C ; < 75 % RH
1
Z
F
Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
JrS
DESCRIPTION
002.000
2020-01-04
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-CBA SMT EMI Suppression
Ferrite Bead
SIZE/TYPE
BUSINESS UNIT
ORDER CODE
782631331
STATUS
PAGE
0603
eiSos
Valid
1/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

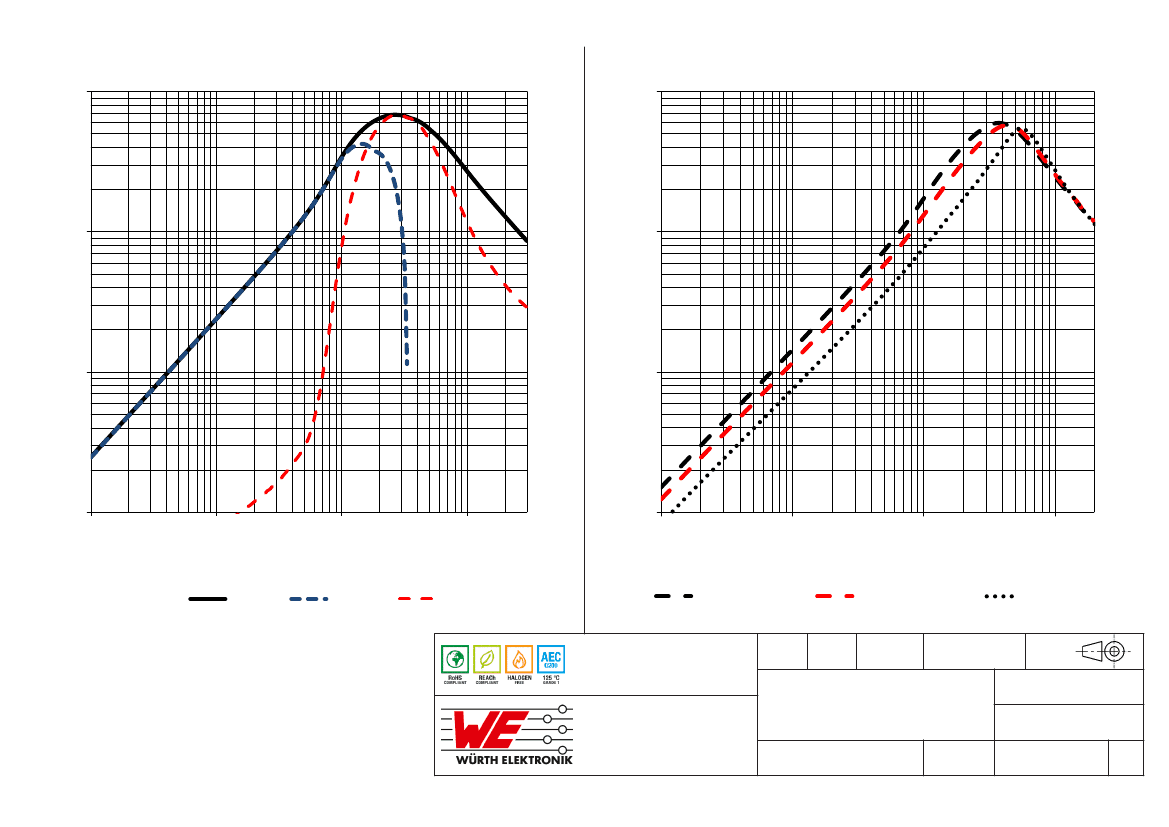

Typical Impedance Characteristics:
1000
DC bias current:
1000
100
100
Impedance [Ω]
Impedance [Ω]
10
10
1
1
10
100
Frequency [MHz]
Z
XL
R
1
1000
1
10
100
1000
Frequency [MHz]
Z @ 100mA
Z @ 200mA
Z @ 400mA
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
JrS
DESCRIPTION
002.000
2020-01-04
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-CBA SMT EMI Suppression
Ferrite Bead
SIZE/TYPE
BUSINESS UNIT
ORDER CODE
782631331
STATUS
PAGE
0603
eiSos
Valid
2/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Derating Curve:
120%
100%
80%
Current [A]
60%
40%
20%
0%
0
20
40
60
80
100
120
140
Temperature [°C]
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
JrS
DESCRIPTION
002.000
2020-01-04
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-CBA SMT EMI Suppression
Ferrite Bead
SIZE/TYPE
BUSINESS UNIT
ORDER CODE
782631331
STATUS
PAGE
0603
eiSos
Valid
3/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

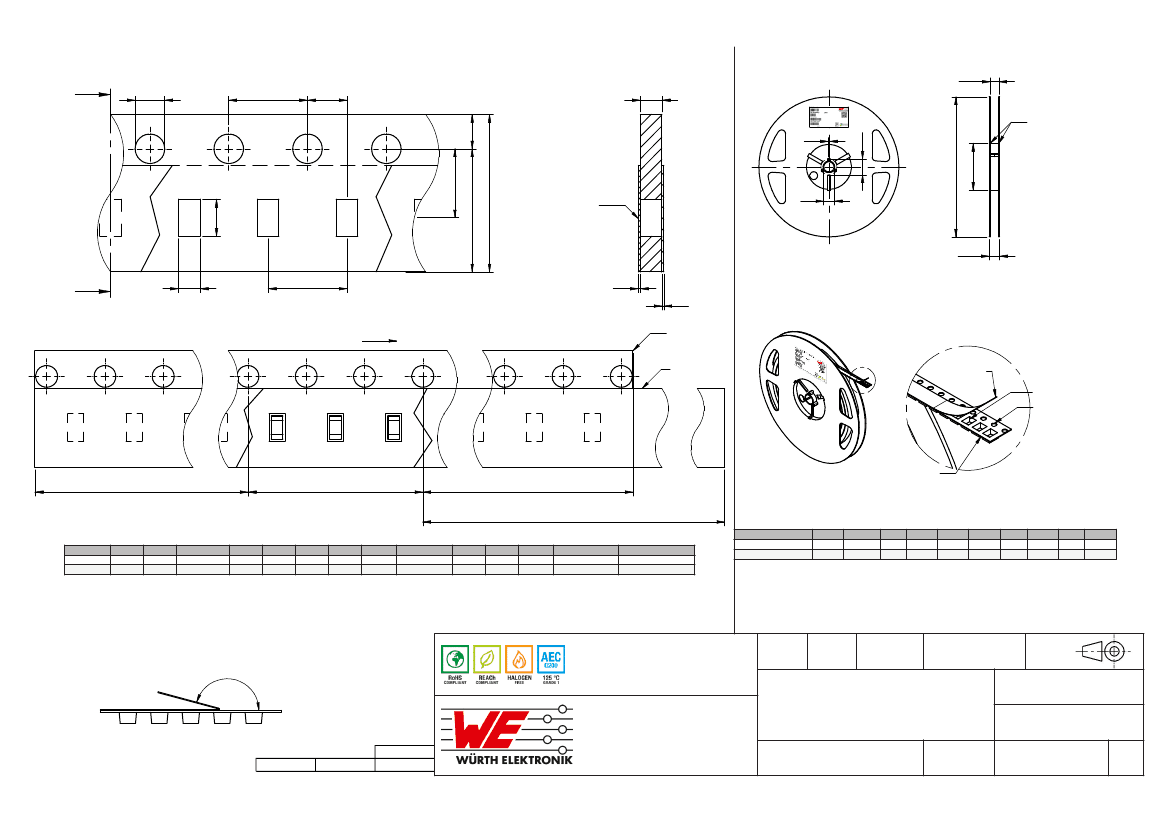

Packaging Specification - Tape and Reel: [mm]
W3
A
D0
P0
P2
E1
T
W1
close to center
D
B
F
W
B0
bottom cover
tape
C
E2
W2
A
End
A0
P1
T1
T1
Carrier tape
Cover tape
Feeding direction
Start
detail B
B
Cover Tape
Chip Cavity
Sprocket Hole
Embossment
No Component
min. 160 mm
Components
No Component
min. 100 mm
Cover Tape
min. 400mm
A
±2,0
178.00
B
min.
1.50
C
±0,8
13.00
D
min.
20.20
N
min.
50.00
W1
+1,5
8.40
W2
max.
14.40
W3
min.
7.90
W3
max.
10.90
tolerance
value
A0
typ.
1,10
B0
typ.
1,88
W
+0,3/ -0,1
8,00
T
ref.
1,10
T1
max.
0,10
P0
±0,1
4,00
P1
±0,1
4,00
P2
+0,05
2,00
D0
+0,1 / -0,0
1,50
E1
±0,1
1,75
E2
min.
6,25
F
±0,05
3,50
Tape type 1a
Polystyrene
Packaging unit
pcs.
4000
tolerance
Tape width
8 mm
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
N
A
PROJECTION
METHOD
JrS
002.000
2020-01-04
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WE-CBA SMT EMI Suppression
Ferrite Bead
SIZE/TYPE
BUSINESS UNIT
ORDER CODE
782631331
STATUS
PAGE
Pull-of force
Tape width
8 mm
0,1 N - 1,0 N
0603
eiSos
Valid
4/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table below
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak
temperature
Temperature
Preheat Area
T
s min
t
S
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
Package Classification Reflow Temperature:
Properties
25
Time 25°C to Peak
Volume mm³
<350
260 °C
260 °C
250 °C
Volume mm³
350-2000
260 °C
250 °C
245 °C
220 °C
220 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
Time
PB-Free Assembly | Package Thickness <
1.6 mm
PB-Free Assembly | Package Thickness 1.6
mm - 2.5 mm
PB-Free Assembly | Package Thickness ≥
2.5 mm
Sn-PB Assembly | Package Thickness < 2.5
235 °C
mm
Sn-PB Assembly | Package Thickness ≥ 2.5
220 °C
mm
refer to IPC/ JEDEC J-STD-020E
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
JrS
DESCRIPTION
002.000
2020-01-04
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-CBA SMT EMI Suppression
Ferrite Bead
SIZE/TYPE
BUSINESS UNIT
ORDER CODE
782631331
STATUS
PAGE
0603
eiSos
Valid
5/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
