5TR160S2: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size331KB，4 Pages; ManufacturerNatel Engineering Company

Download Datasheet Parametric Compare View All

5TR160S2 Overview

Analog Circuit

5TR160S2 Parametric

Parameter Name	Attribute value
Maker	Natel Engineering Company
Reach Compliance Code	unknown
control mode	VOLTAGE
Efficiency (main output)	78%
Maximum input voltage	55 V
Minimum input voltage	40 V
JESD-30 code	R-XSFM-P13
Number of functions	1
Output times	1
Number of terminals	13
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Maximum output current	16 A
Maximum output voltage	5.05 V
Minimum output voltage	4.87 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
encapsulated code	SFM
Package shape	RECTANGLE
Package form	MICROELECTRONIC ASSEMBLY
Protect	OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT
Ripple voltage (main output)	0.03535 Vrms
surface mount	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum total power output	80 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

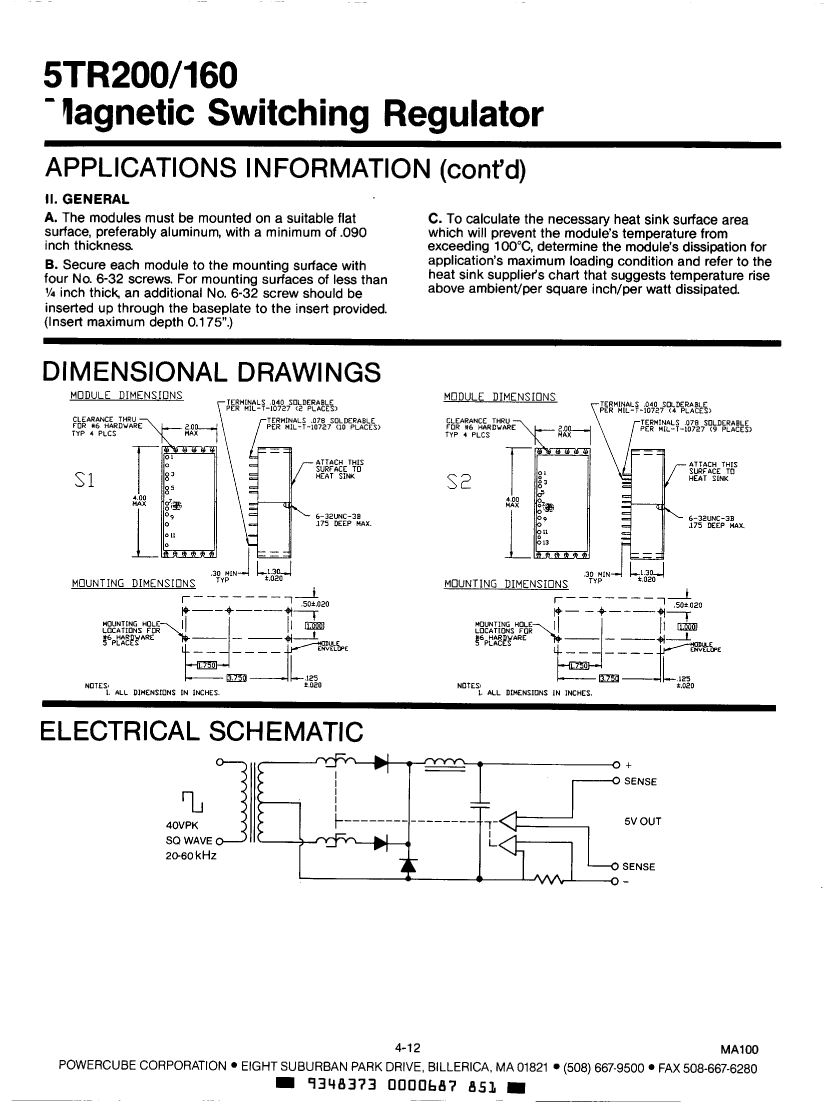

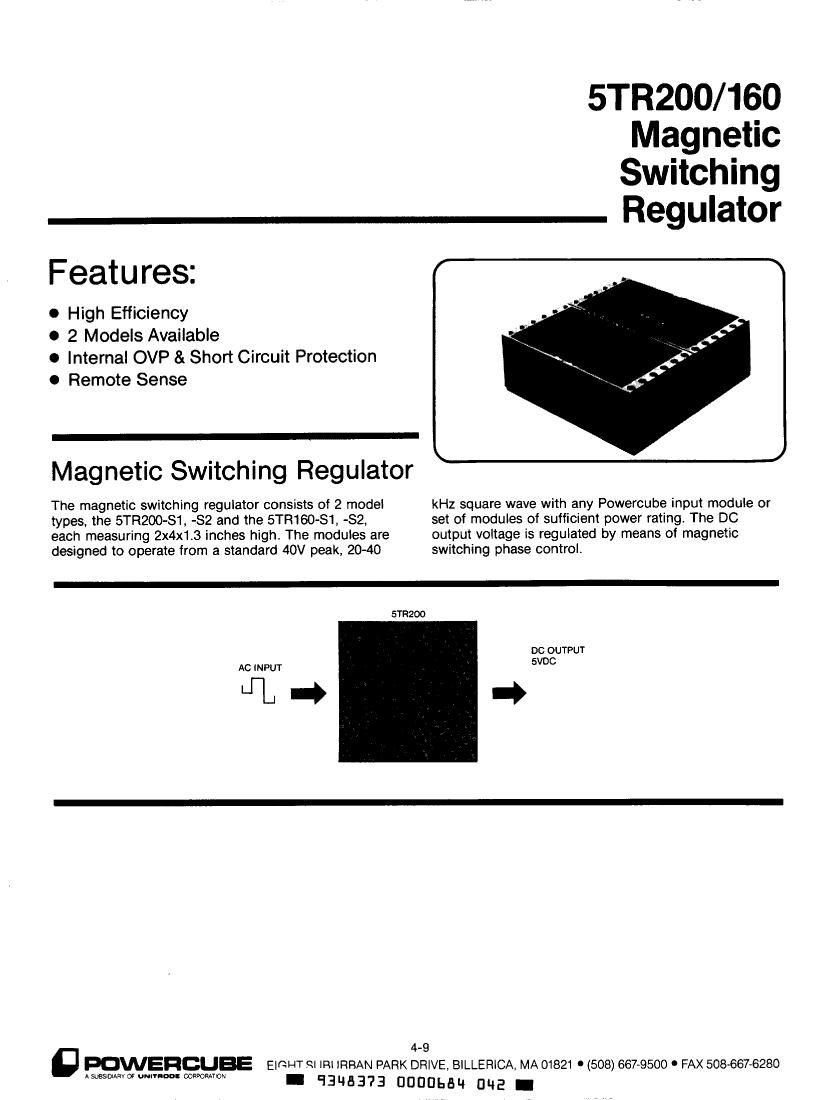

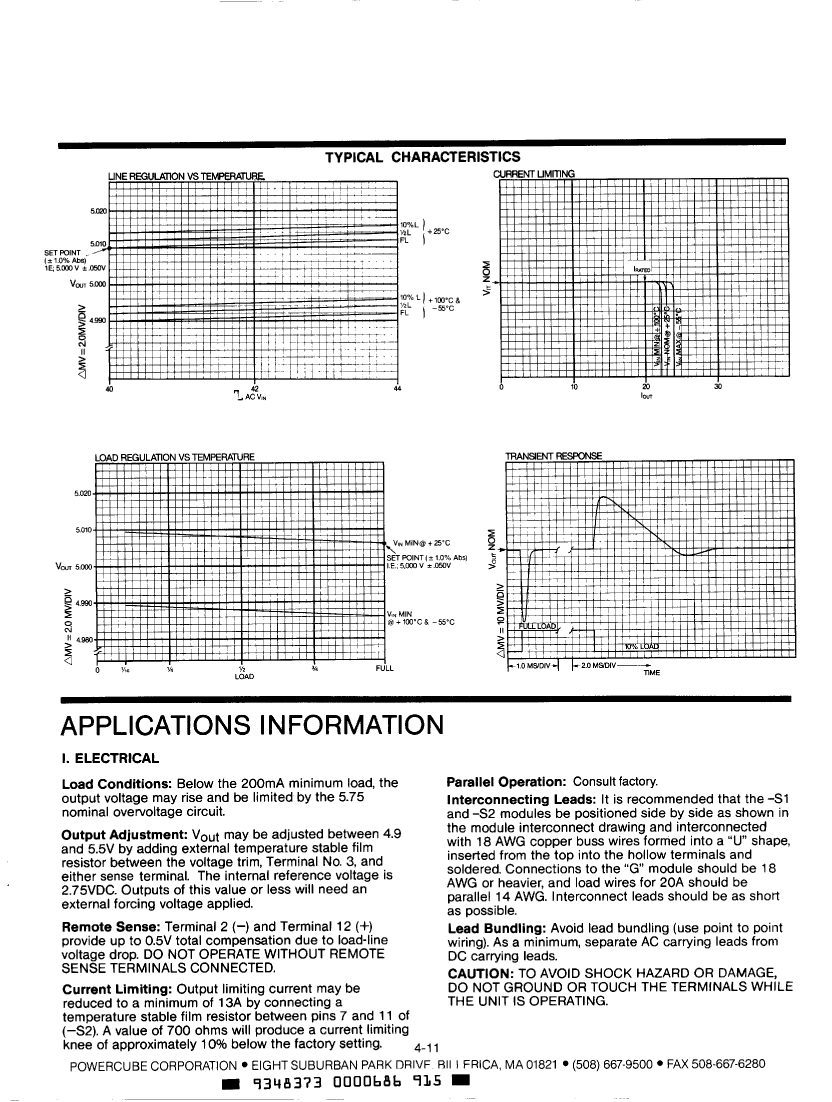

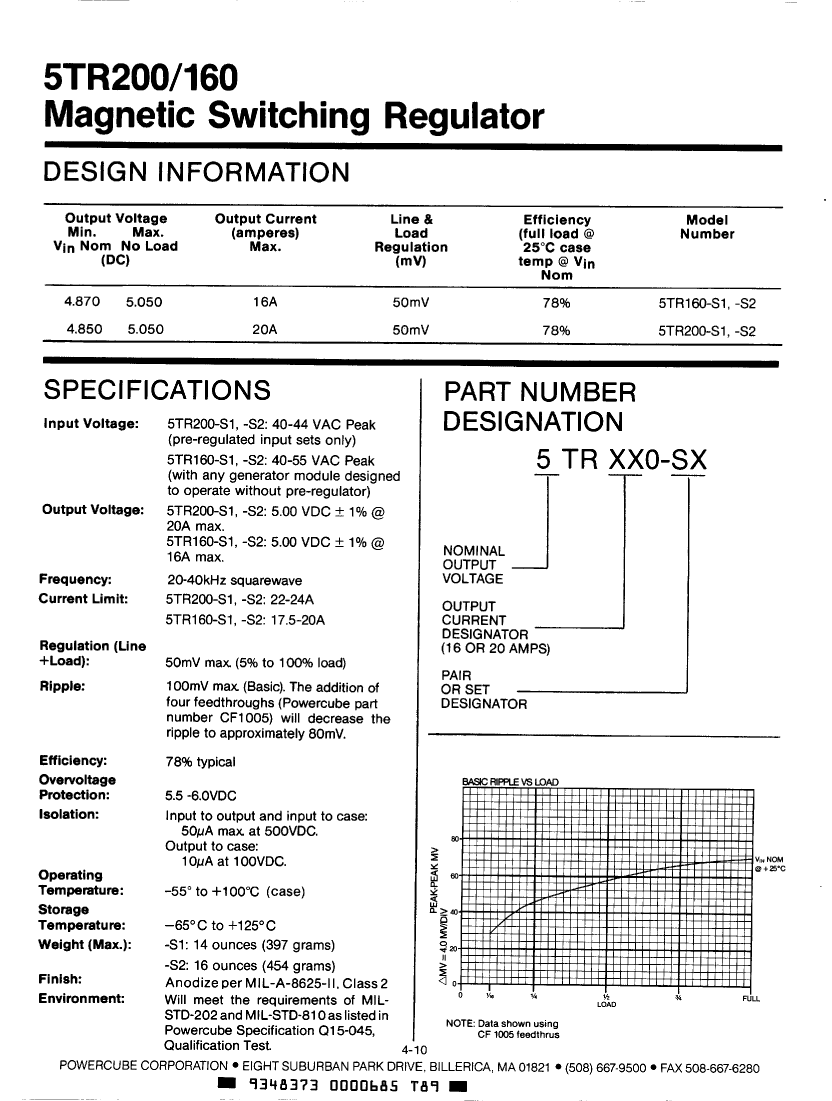

Preview

Download Datasheet

View All

5TR160S2 Related Products

	5TR160S2	5TR160S1	5TR200S1	5TR200S2
Description	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit
Maker	Natel Engineering Company	Natel Engineering Company	Natel Engineering Company	Natel Engineering Company
Reach Compliance Code	unknown	unknown	unknown	unknown
control mode	VOLTAGE	VOLTAGE	VOLTAGE	VOLTAGE
Efficiency (main output)	78%	78%	78%	78%
Maximum input voltage	55 V	55 V	44 V	44 V
Minimum input voltage	40 V	40 V	40 V	40 V
JESD-30 code	R-XSFM-P13	R-XSFM-P12	R-XSFM-P12	R-XSFM-P13
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	13	12	12	13
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	16 A	16 A	20 A	20 A
Maximum output voltage	5.05 V	5.05 V	5.05 V	5.05 V
Minimum output voltage	4.87 V	4.87 V	4.85 V	4.85 V
Nominal output voltage	5 V	5 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SFM	SFM	SFM	SFM
Package shape	RECTANGLE	RECTANGLE	RECTANGLE	RECTANGLE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Protect	OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT	OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT	OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT	OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT
Ripple voltage (main output)	0.03535 Vrms	0.03535 Vrms	0.03535 Vrms	0.03535 Vrms
surface mount	HYBRID	NO	NO	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum total power output	80 W	80 W	100 W	100 W
Fine-tuning/adjustable output	NO	NO	NO	NO
Base Number Matches	1	1	1	1
