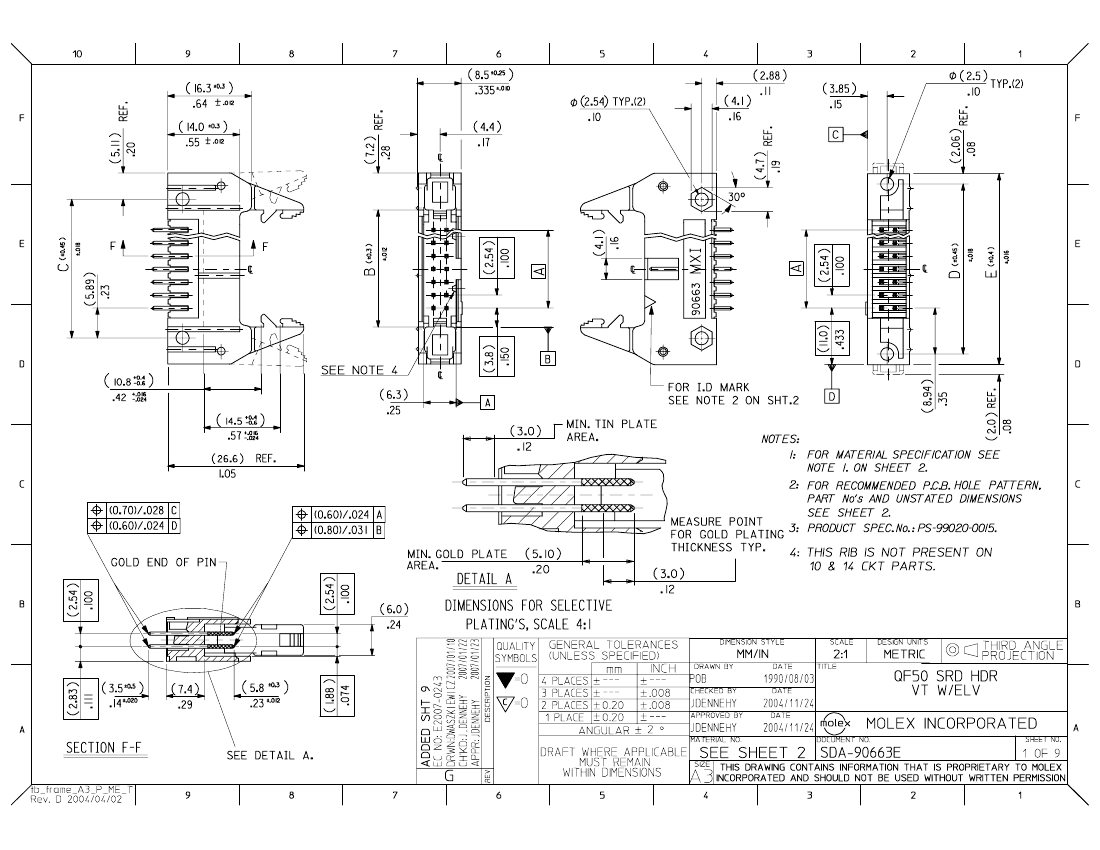

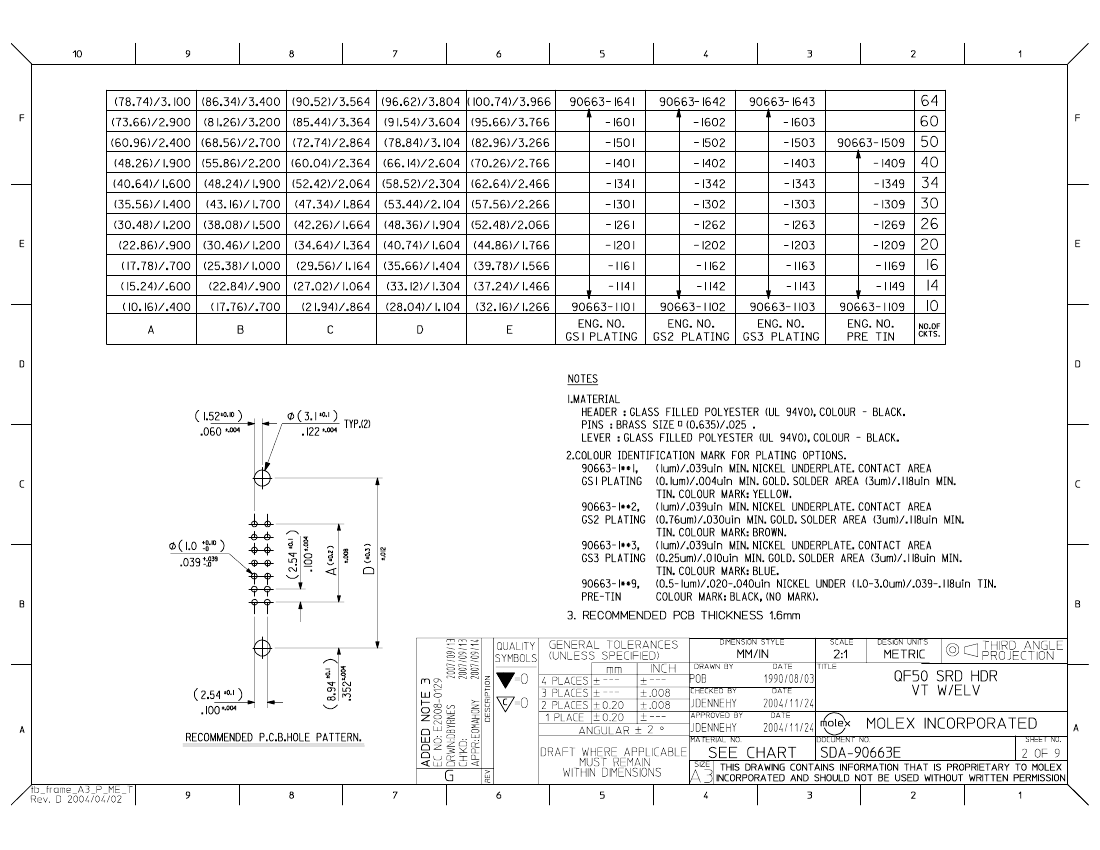

90663-1109: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size155KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

90663-1109 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

90663-1109 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED
Board mount options	HOLE .112-.124
body width	0.335 inch
subject depth	0.642 inch
body length	1.266 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	300 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.4194 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	90663
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	40u inch
polarization key	MIL TYP & CENTER
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
Base Number Matches	1

Preview

Download Datasheet

View All

90663-1109 Related Products

	90663-1109	90663-1209	90663-1169	90663-1309	90663-1409
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED	QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED	QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED	QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED	QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED
Board mount options	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
body width	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch
subject depth	0.642 inch	0.642 inch	0.642 inch	0.642 inch	0.642 inch
body length	1.266 inch	1.766 inch	1.566 inch	2.266 inch	2.766 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	300 Cycles	300 Cycles	300 Cycles	300 Cycles	300 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	3.4194 N	3.4194 N	3.4194 N	3.4194 N	3.4194 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	90663	90663	90663	90663	90663
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	40u inch	40u inch	40u inch	40u inch	40u inch
polarization key	MIL TYP & CENTER	MIL TYP & CENTER	MIL TYP & CENTER	MIL TYP & CENTER	MIL TYP & CENTER
Rated current (signal)	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	20	16	30	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.5004 N	.5004 N	.5004 N	.5004 N	.5004 N
Base Number Matches	1	1	1	1	1
