ADS610HB datasheet, PDF - EEWORLD Datasheet

ADS610HB: DescriptionADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP40,; CategoryAnalog mixed-signal IC converter; File Size225KB，4 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

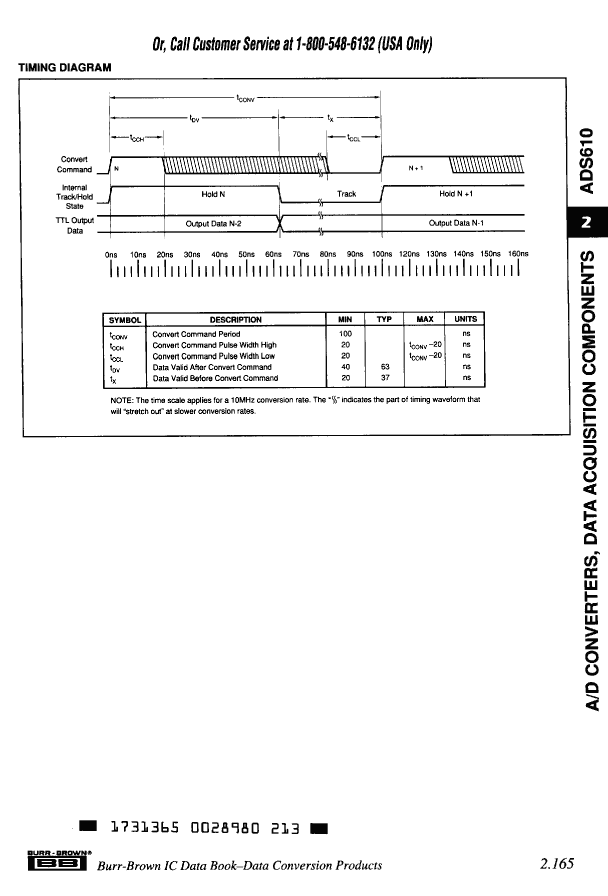

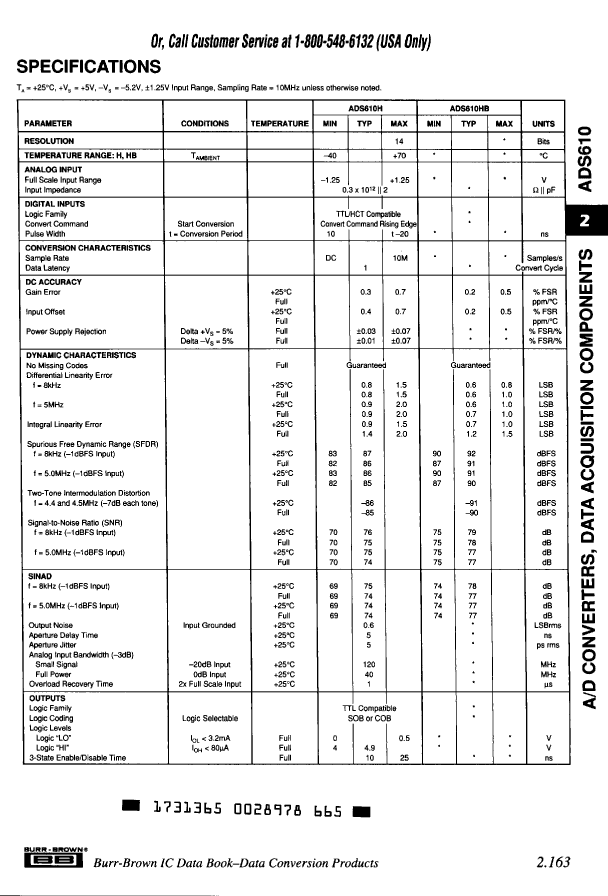

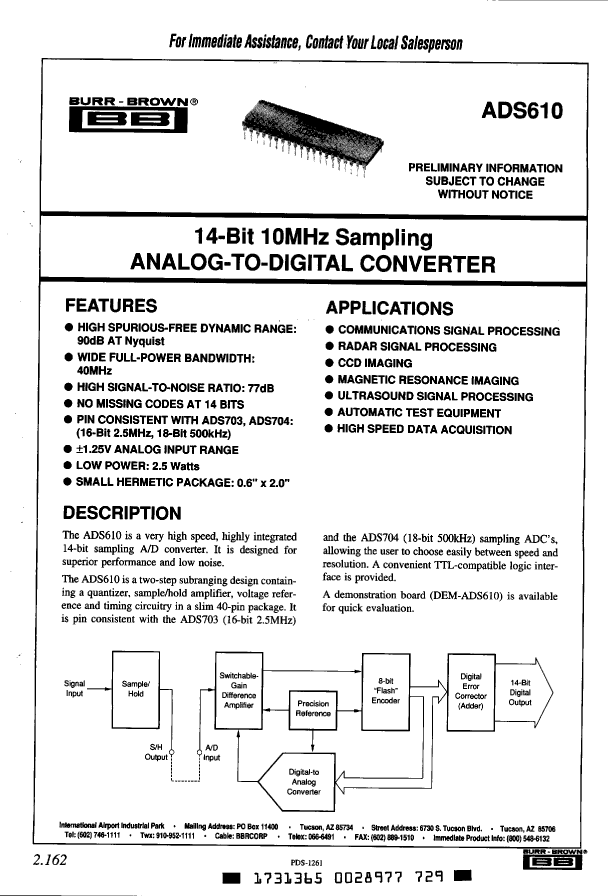

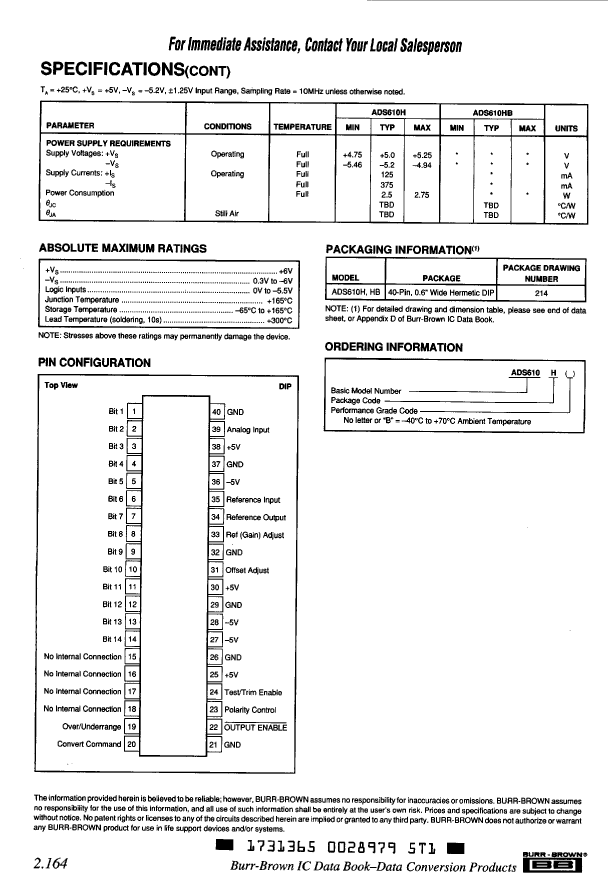

ADS610HB Overview

ADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP40,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Maximum analog input voltage	1.25 V
Minimum analog input voltage	-1.25 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
Maximum linear error (EL)	0.0092%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	14
Number of functions	1
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,-5.2 V
Certification status	Not Qualified
Sampling rate	10 MHz
Sample and hold/Track and hold	SAMPLE
Nominal supply voltage	5 V
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	ADS610HB	ADS610H
Description	ADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP40,	ADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP40,
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Maximum analog input voltage	1.25 V	1.25 V
Minimum analog input voltage	-1.25 V	-1.25 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T40	R-CDIP-T40
JESD-609 code	e0	e0
Maximum linear error (EL)	0.0092%	0.0122%
Nominal negative supply voltage	-5.2 V	-5.2 V
Number of analog input channels	1	1
Number of digits	14	14
Number of functions	1	1
Number of terminals	40	40
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5,-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified
Sampling rate	10 MHz	10 MHz
Sample and hold/Track and hold	SAMPLE	SAMPLE
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
