899-01015SA1JG3-140 Overview

Military Connector Accessory,

899-01015SA1JG3-140 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codenot_compliant
Base Number Matches1

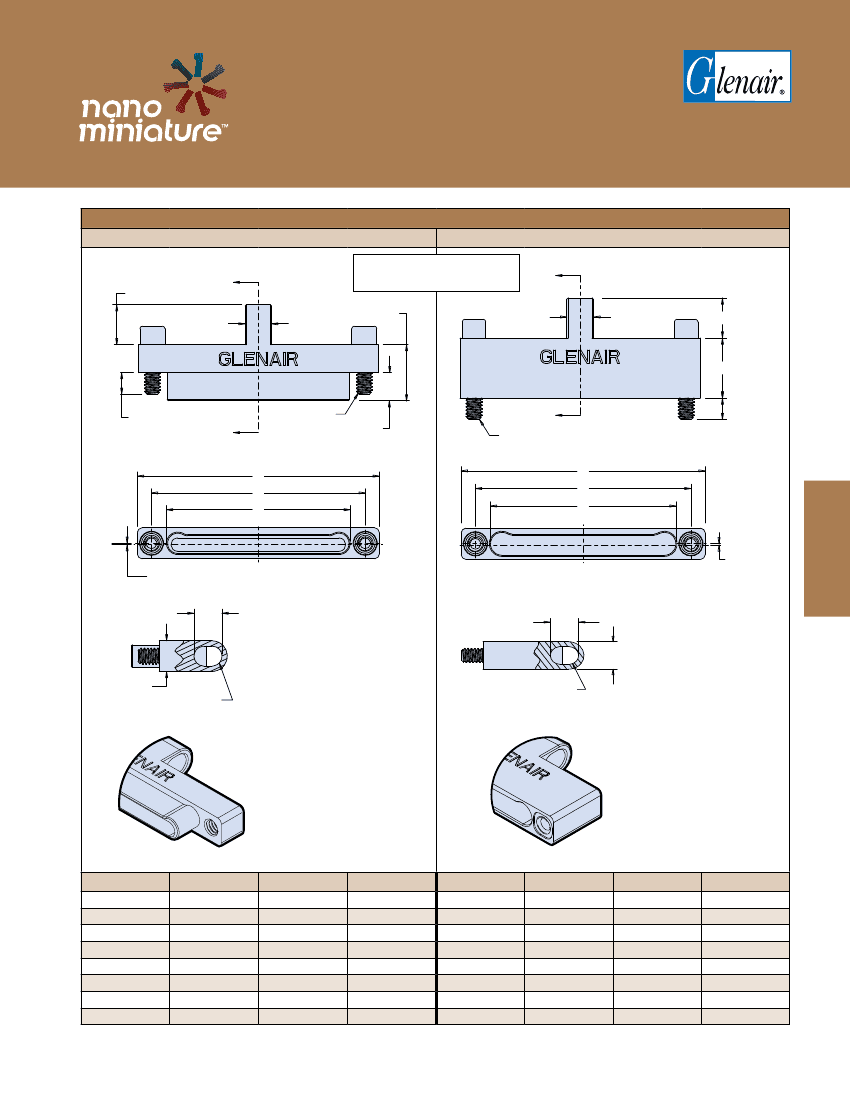

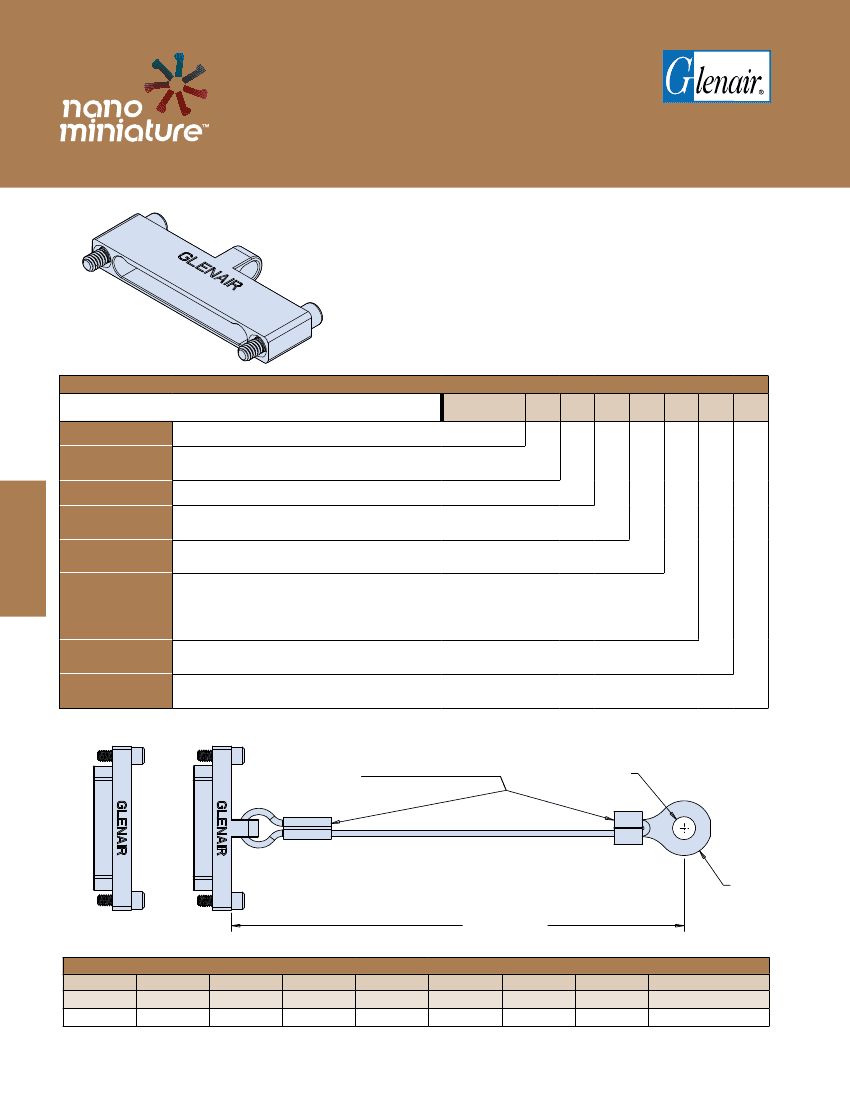

SERIES 89
Single Row Connectors
EMI Cover
How to Order
Glenair EMI Covers
offer the same EMI protection as mated connectors,
from electro magnetic interferance, as a result of electromagnetic
induction emitted from intended external sources such as radio
transmissions or electromagnetic radiation from unintentional sources
such as electric power transmission lines. These covers feature a solid one
piece construction machined from your choice of aluminum, stainless steel
or titanium. Standard aluminum finishes include cadmium or electroless
nickel plating. Available with or without lanyard attachment. Covers are in
accordance with MIL-DTL-32139/1 and MIL-DTL-32139/2
How to Order
Sample Part Number
Series
Insert
Arrangement
Body Style
Cover Material
and Finish
Hardware
899-010
= EMI Single Row, Nanominiature Cover
5, 9, 15, 21, 25, 31, 37, 51
P
= Plug
S
= Receptacle
A1
- Aluminum Shell, Cadmium Plating
A2
- Aluminum Shell, Electroless Nickel Plating
S
- Stainless Steel Shell, Passivated
T
- Titanium Shell, Unplated
899-010
-25
P
A2
J
F
3
-126
C
J
= Jacksrew
T
= Female Thread
Female threads are available on plug covers only if cover material is titanium or stainless steel.
N
= No Lanyard
K
= No Lanyard/No Eyelet Attachment Point
F
= Stainless Steel Wire Rope, Nylon jacket, Black, Ø .034
G
= Flexible Dacron Cord, MIL-DTL-5040 Type 1 Ø.0625, Natural
H
= Stainless Steel Wire Rope, Fluoropolymer Jacket, Black, Ø .034
Attachment Type
Attachment
Length
Attachment
Diameter
Attachment Length in Inches (Omit for No Lanyard)
-098, -126, -140, -156, -167, -188, -197, -218
For Dimensions See Table I; (Omit for No Lanyard)
Cover Crimped Lugs
with Shrink Sleeve
Ø ID
Ø OD
Attachment Type K
Length ± .5
Dash No.
ID
OD
C-52
-098
Ø .098 (2.49)
Ø .300 (7.62)
-126
Ø .126 (3.20)
Ø .300 (7.62)
-140
Table I: Attachment Diameter
-156
-167
Ø .156 (3.96)
Ø .300 (7.62)
Ø .167 (4.24)
Ø .300 (7.62)
-188
Ø .188 (4.78)
Ø .300 (7.62)
-197
Ø .197 (5.00)
Ø .300 (7.62)
-218
Ø .223/.218 (5.66/5.54)
Ø .300 (7.62)
Ø .140 (3.56)
Ø .300 (7.62)
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • Series 89 Nanominiature Catalog
U.S. CAGE code 06324/0CA77 • Dimensions in Inches (millimeters) are subject to change without notice.
