557908-2 datasheet, PDF - EEWORLD Datasheet

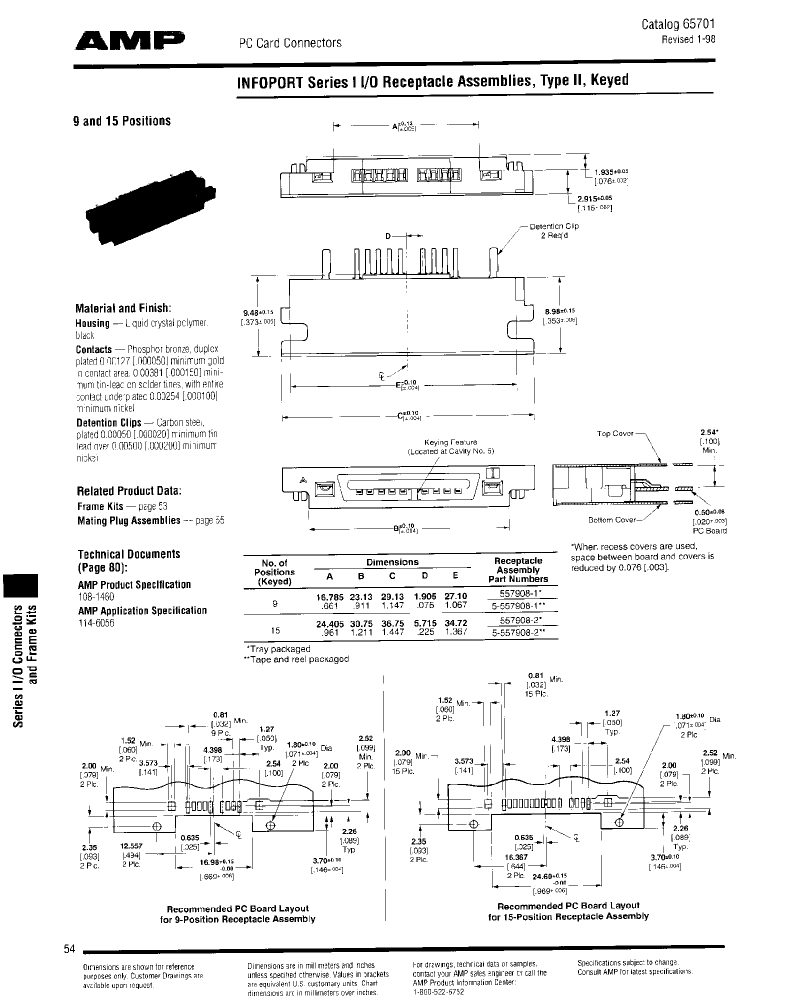

557908-2: Description15 CONTACT(S), FEMALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

557908-2 Overview

15 CONTACT(S), FEMALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT, RECEPTACLE

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.191 inch
subject depth	0.373 inch
body length	1.447 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	557908
Plug contact pitch	0.05 inch
Plug information	557715-2
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
Base Number Matches	1

	557908-2	557908-1
Description	15 CONTACT(S), FEMALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT, RECEPTACLE	PCMCIA CONNECTOR,CABLE MNT,PLUG,9 CONTACTS,SKT,0.05 PITCH
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown
Other features	POLARIZED	KEYING FEATURE AT CAVITY 5
Board mount options	POLARIZATION POST	POLARIZATION POST
body width	0.191 inch	0.191 inch
subject depth	0.373 inch	0.373 inch
body length	1.447 inch	1.147 inch
Body/casing type	RECEPTACLE	PLUG
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V
Durability	10000 Cycles	10000 Cycles
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	557908	557908
Plug contact pitch	0.05 inch	0.05 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE
Number of connectors	ONE	ONE
Number of rows loaded	1	1
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Plating thickness	50u inch	50u inch
Rated current (signal)	0.5 A	0.5 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	15	9
