558880-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 558880-1

558880-1: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

558880-1 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK

558880-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	NONE
body width	0.117 inch
subject depth	0.36 inch
body length	0.567 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON PD-NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	558880
Plug contact pitch	0.031 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	8
Base Number Matches	1

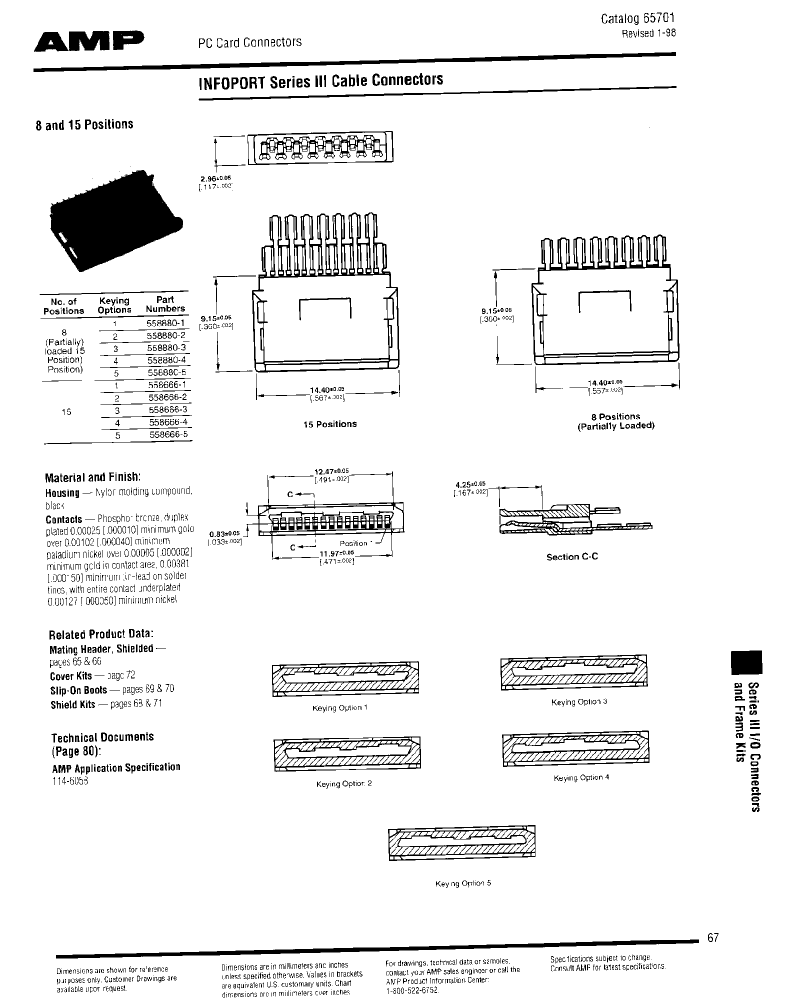

Preview

Download Datasheet

View All

558880-1 Related Products

	558880-1	558880-2	558880-4	558880-3	558880-5
Description	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.031 PITCH,CRIMP TERMINAL,BLACK
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	NONE	NONE	NONE	NONE	NONE
body width	0.117 inch	0.117 inch	0.117 inch	0.117 inch	0.117 inch
subject depth	0.36 inch	0.36 inch	0.36 inch	0.36 inch	0.36 inch
body length	0.567 inch	0.567 inch	0.567 inch	0.567 inch	0.567 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	10000 Cycles	10000 Cycles	10000 Cycles	10000 Cycles	10000 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	558880	558880	558880	558880	558880
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	8	8	8	8	8
Base Number Matches	1	1	1	1	1
