2N5415S datasheet, PDF - EEWORLD Datasheet

2N5415S: DescriptionTRANSISTOR,BJT,PNP,200V V(BR)CEO,1A I(C),TO-39; CategoryDiscrete semiconductor The transistor; File Size627KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

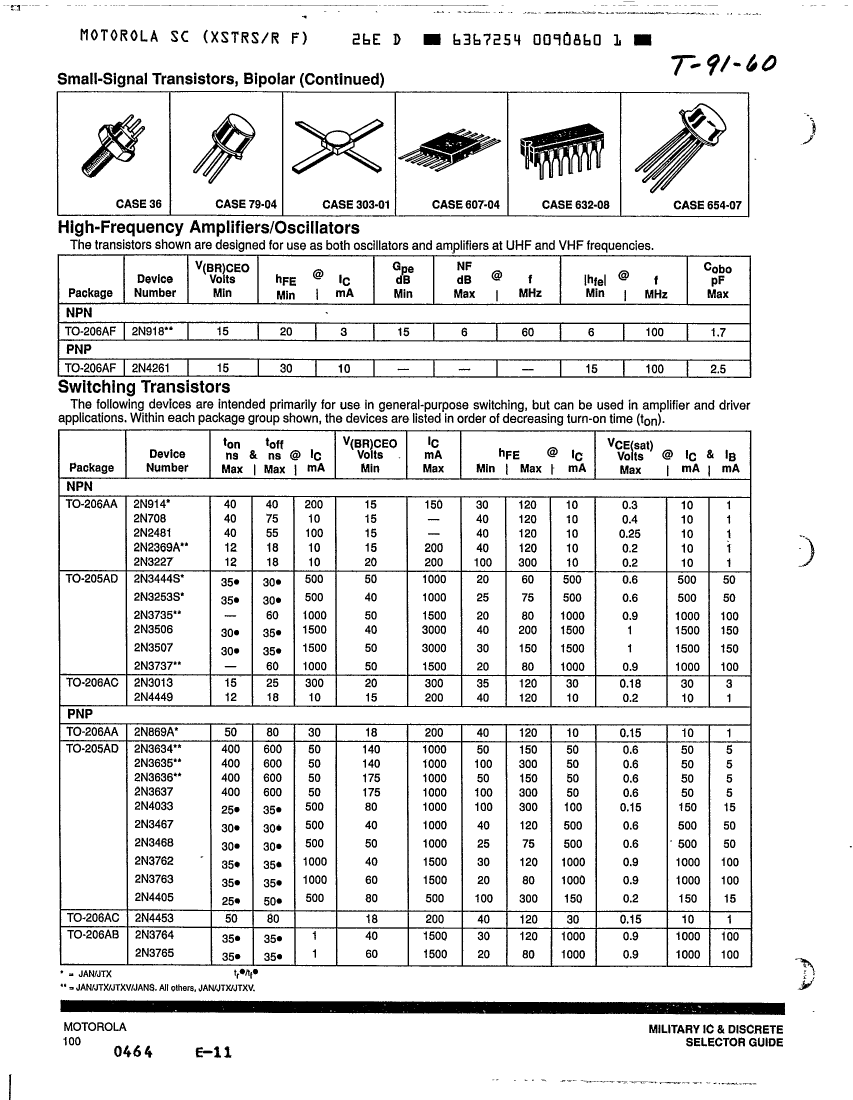

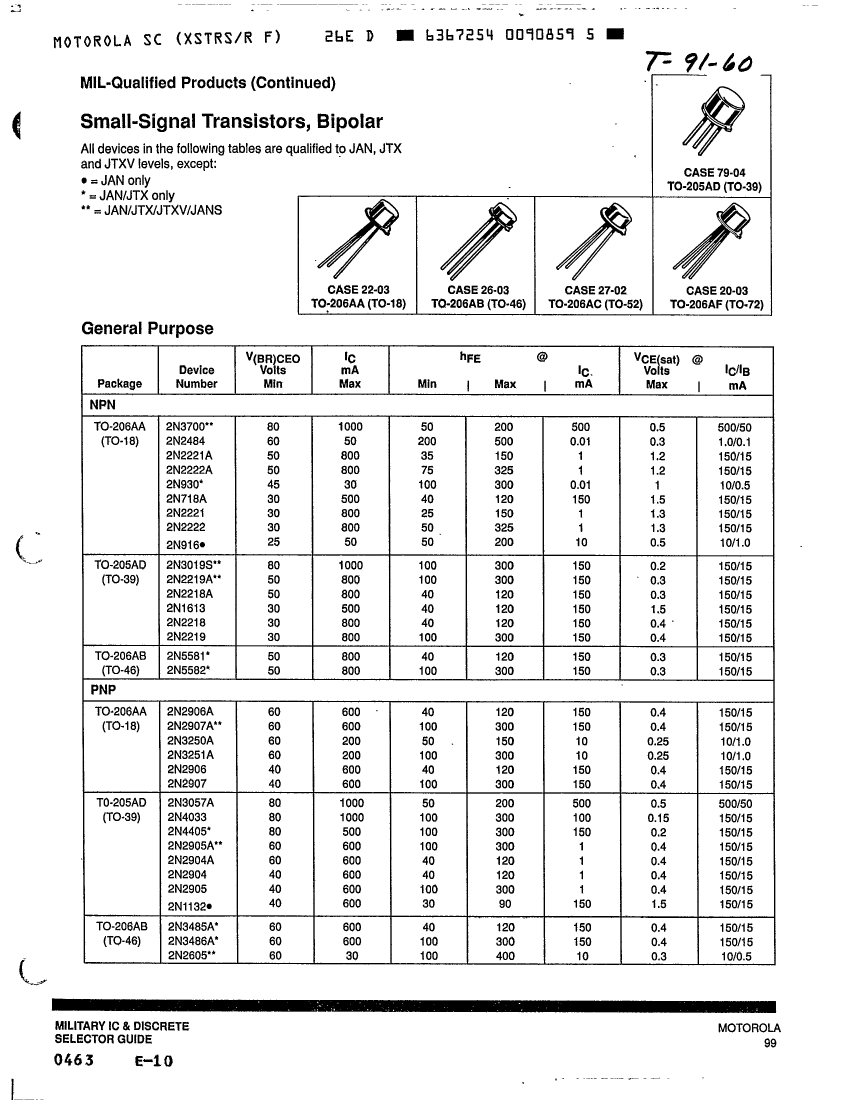

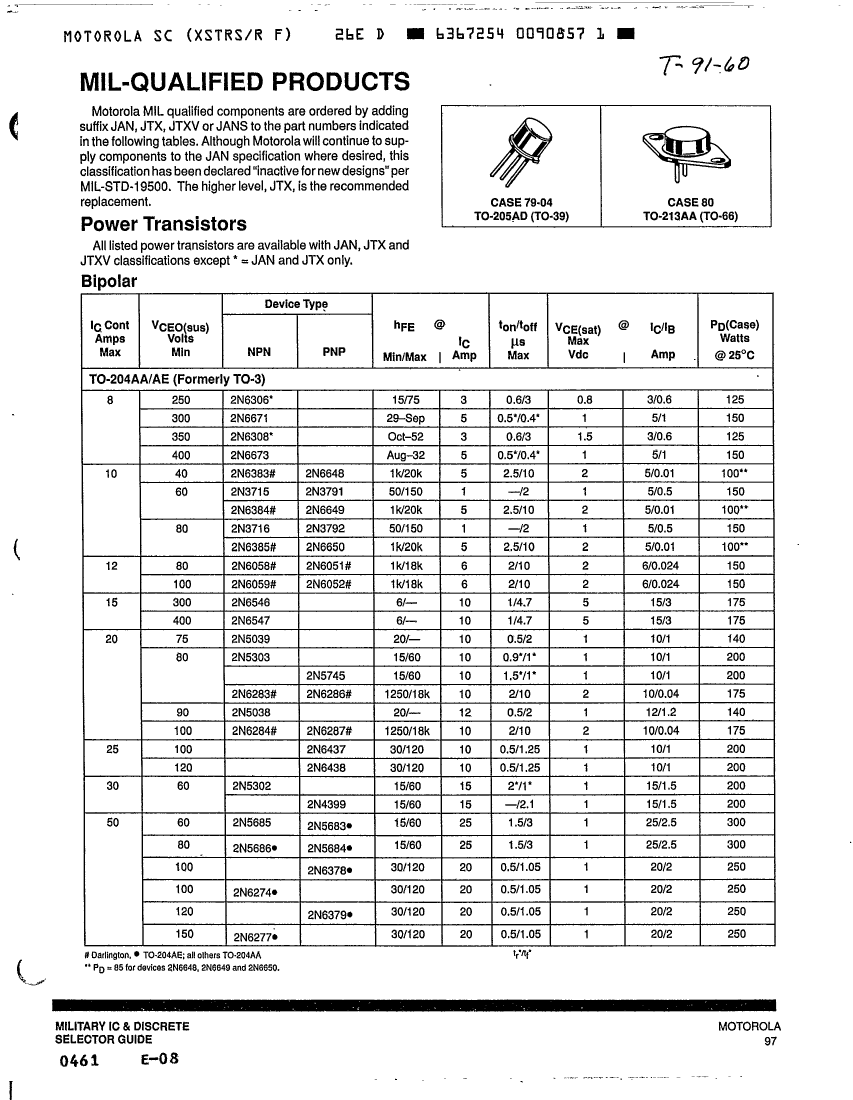

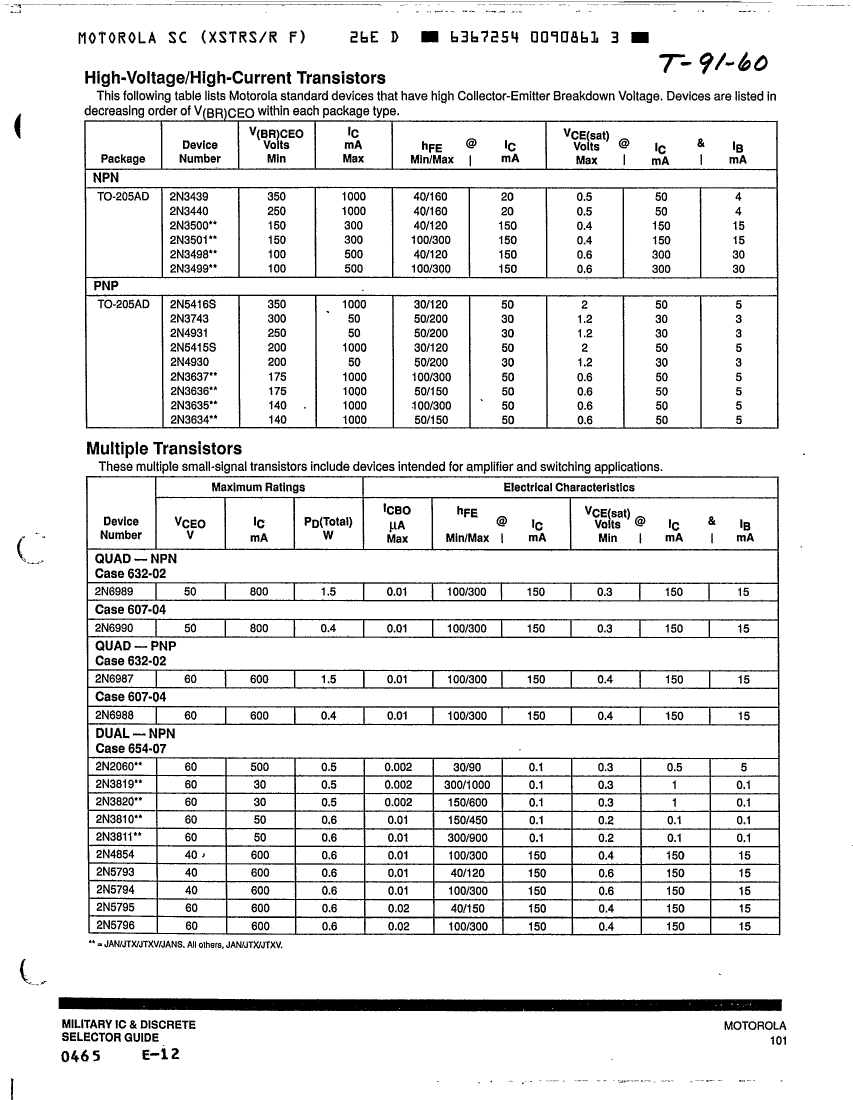

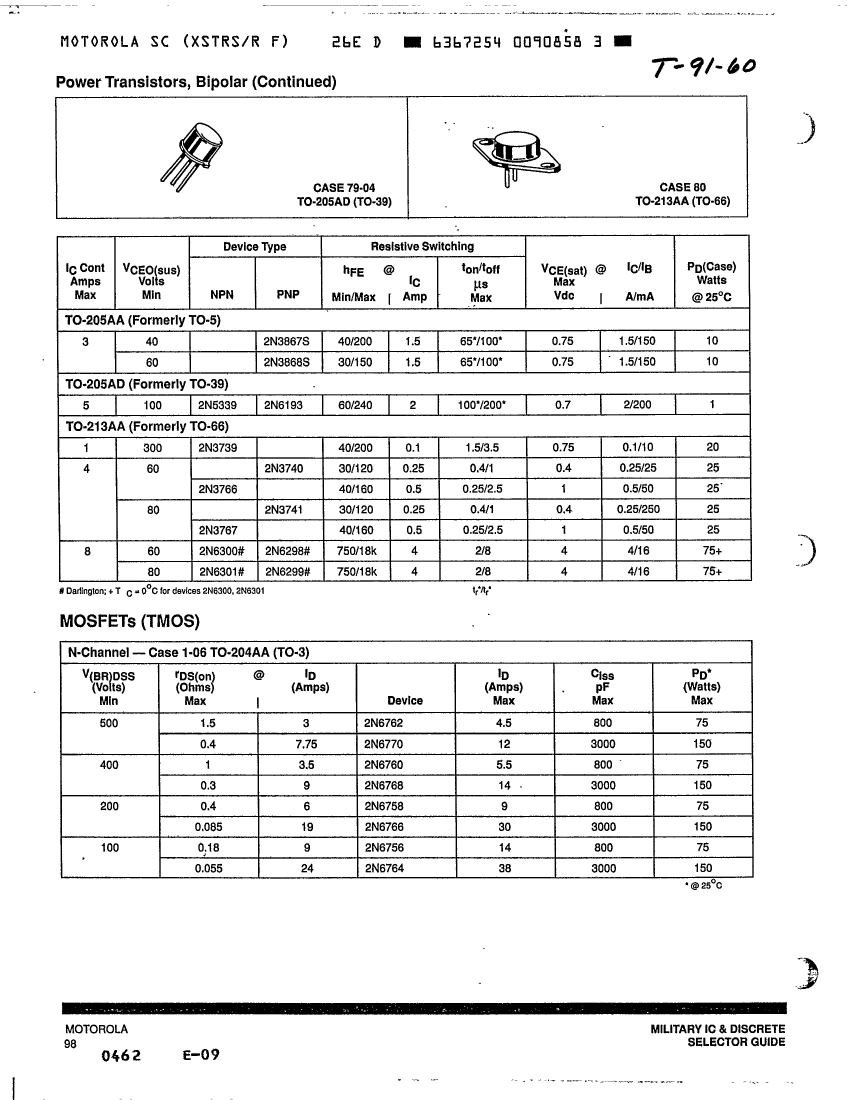

Download Datasheet Parametric Compare View All

2N5415S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N5415S	-	-	View	Buy Now

TRANSISTOR,BJT,PNP,200V V(BR)CEO,1A I(C),TO-39

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	1 A
Configuration	Single
Minimum DC current gain (hFE)	30
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	10 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	15 MHz
Base Number Matches	1

	2N5415S	2N4449	2N3019S	2N5416S	2N3057A	2N3867S	2N6673	2N3868S
Description	TRANSISTOR,BJT,PNP,200V V(BR)CEO,1A I(C),TO-39	TRANSISTOR,BJT,NPN,15V V(BR)CEO,200MA I(C),TO-46	TRANSISTOR,BJT,NPN,80V V(BR)CEO,1A I(C),TO-39	TRANSISTOR,BJT,PNP,300V V(BR)CEO,1A I(C),TO-39	TRANSISTOR,BJT,NPN,80V V(BR)CEO,1A I(C),TO-46	TRANSISTOR,BJT,PNP,40V V(BR)CEO,3A I(C),TO-5	TRANSISTOR,BJT,NPN,400V V(BR)CEO,8A I(C),TO-204AA	TRANSISTOR,BJT,PNP,60V V(BR)CEO,3A I(C),TO-5
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Maximum collector current (IC)	1 A	0.2 A	1 A	1 A	1 A	3 A	8 A	3 A
Configuration	Single	Single	Single	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	30	40	100	30	100	40	10	30
Maximum operating temperature	175 °C	175 °C	175 °C	200 °C	200 °C	200 °C	175 °C	200 °C
Polarity/channel type	PNP	NPN	NPN	PNP	NPN	PNP	NPN	PNP
Maximum power dissipation(Abs)	10 W	0.3 W	5 W	10 W	0.4 W	1 W	150 W	1 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	-	e0	-	e0	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	15 MHz	500 MHz	100 MHz	-	100 MHz	-	15 MHz	-
Base Number Matches	1	1	1	1	1	1	1	-
