53798-0244 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53798-0244

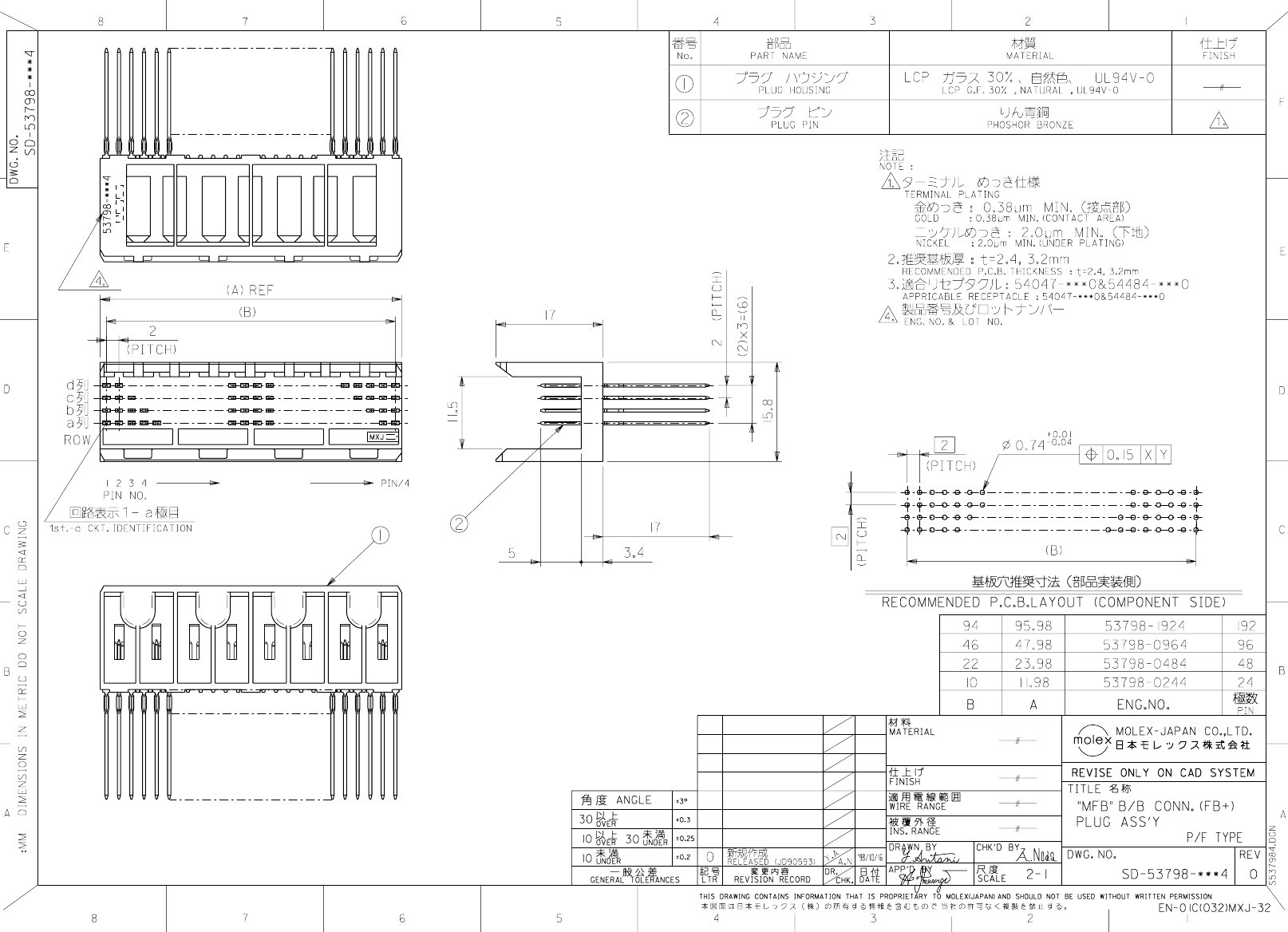

53798-0244: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53798-0244 Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug

53798-0244 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MFB
body width	0.622 inch
subject depth	0.669 inch
body length	0.472 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	53798
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.669 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	24
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

53798-0244 Related Products

	53798-0244	53798-0484	53798-0964	53798-1924
Description	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug	Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug	Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug	Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	MFB	MFB	MFB	MFB
body width	0.622 inch	0.622 inch	0.622 inch	0.622 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	0.472 inch	0.944 inch	1.889 inch	3.779 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	45 mΩ	45 mΩ	45 mΩ	45 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	1.0008 N	1.0008 N	1.0008 N	1.0008 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	53798	53798	53798	53798
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4
Number of rows loaded	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	15u inch	15u inch	15u inch	15u inch
polarization key	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.669 inch	0.669 inch	0.669 inch	0.669 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	24	48	96	192
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N
Base Number Matches	1	1	1	1
