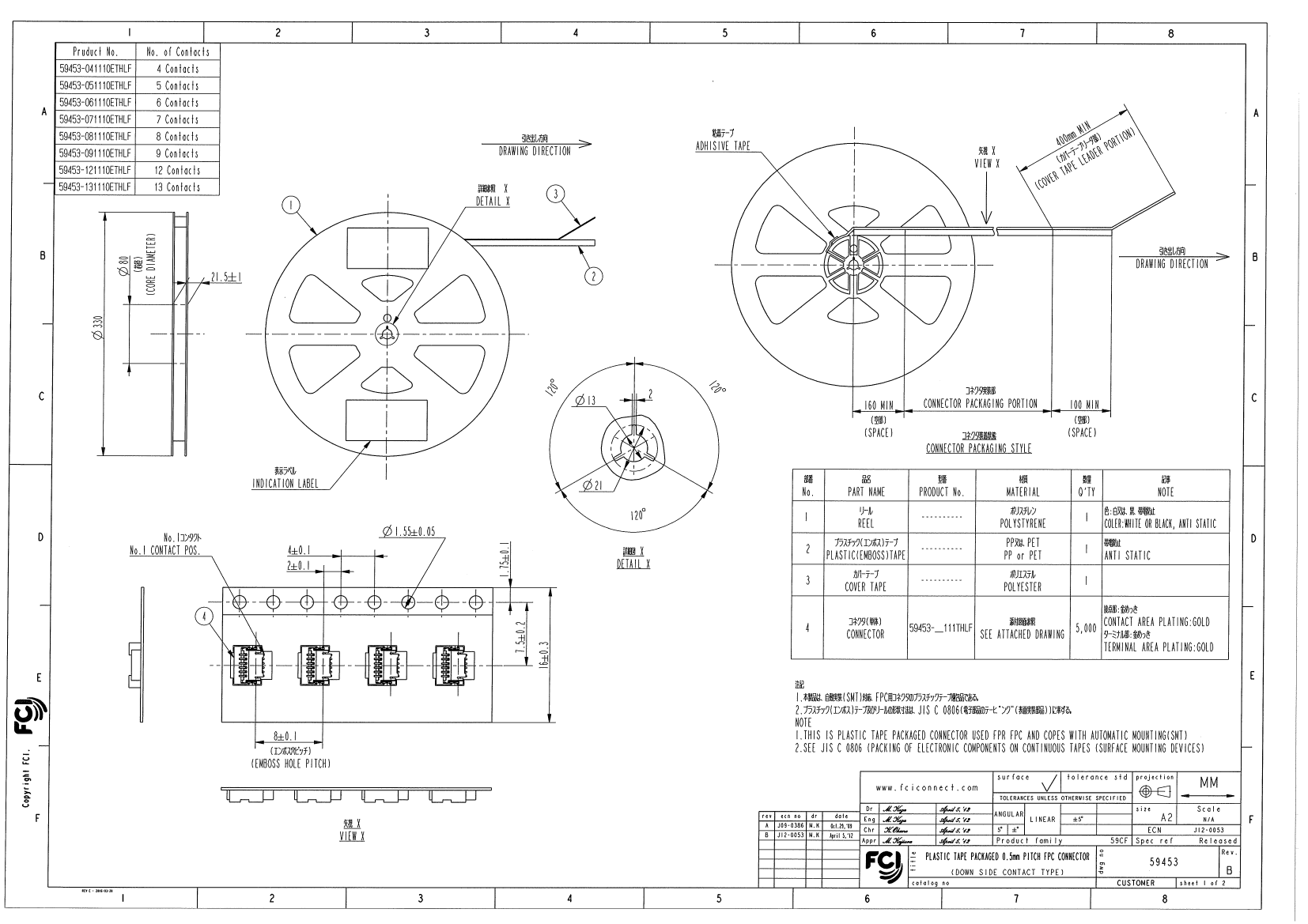

Preview

59453-04111THLF: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size660KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

59453-04111THLF Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

59453-04111THLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Other features	SHORT TERMINAL, WHITE ACTUATOR
Board mount options	FITTING NAIL
body width	0.035 inch
subject depth	0.142 inch
body length	0.138 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
Durability	10 Cycles
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Evacuation force-minimum value	ZIF N
Base Number Matches	1

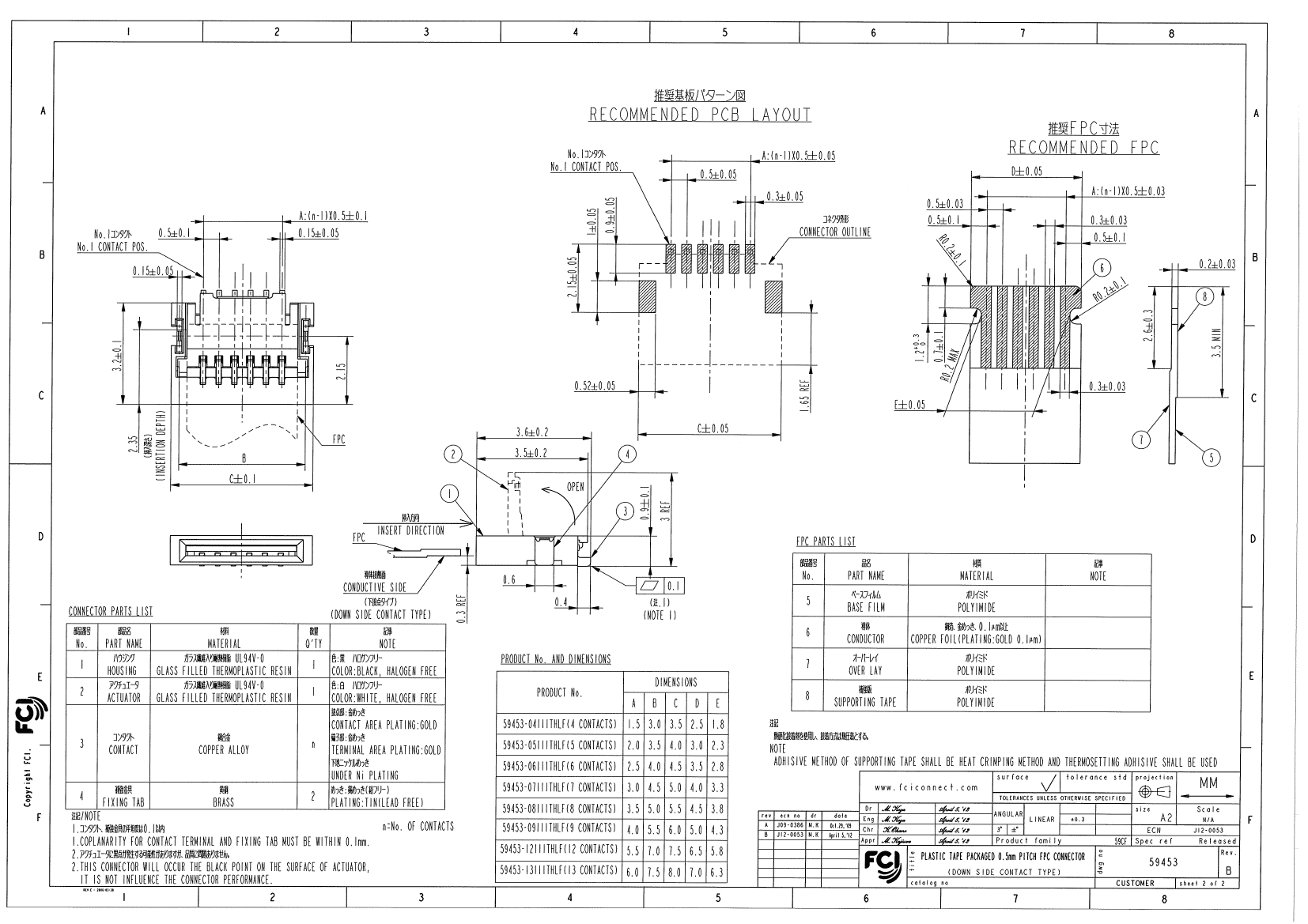

Preview

Download Datasheet

View All

59453-04111THLF Related Products

	59453-04111THLF	59453-05111THLF	59453-06111THLF
Description	Card Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 5 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 6 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
Is it Rohs certified?	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	SHORT TERMINAL, WHITE ACTUATOR	SHORT TERMINAL, WHITE ACTUATOR	SHORT TERMINAL, WHITE ACTUATOR
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.035 inch	0.035 inch	0.035 inch
subject depth	0.142 inch	0.142 inch	0.142 inch
body length	0.138 inch	0.157 inch	0.177 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V
Durability	10 Cycles	10 Cycles	10 Cycles
maximum insertion force	ZIF N	ZIF N	ZIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	1	1	1
Number of rows loaded	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.4 A	0.4 A	0.4 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	5	6
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N
Base Number Matches	1	1	1
