74HCT93DB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HCT93DB

74HCT93DB: DescriptionIC HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter; Categorylogic logic; File Size108KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HCT93DB Overview

IC HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter

74HCT93DB Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
Other features	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS
Counting direction	UP
series	HCT
JESD-30 code	R-PDSO-G14
length	6.2 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of digits	3
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	87 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	5.3 mm
minfmax	20 MHz
Base Number Matches	1

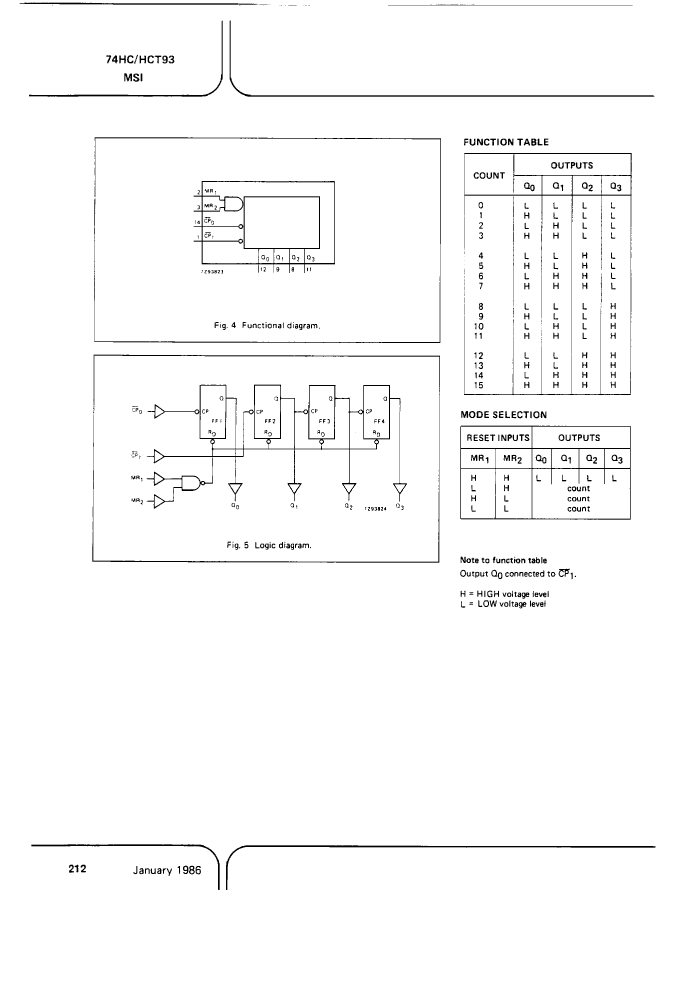

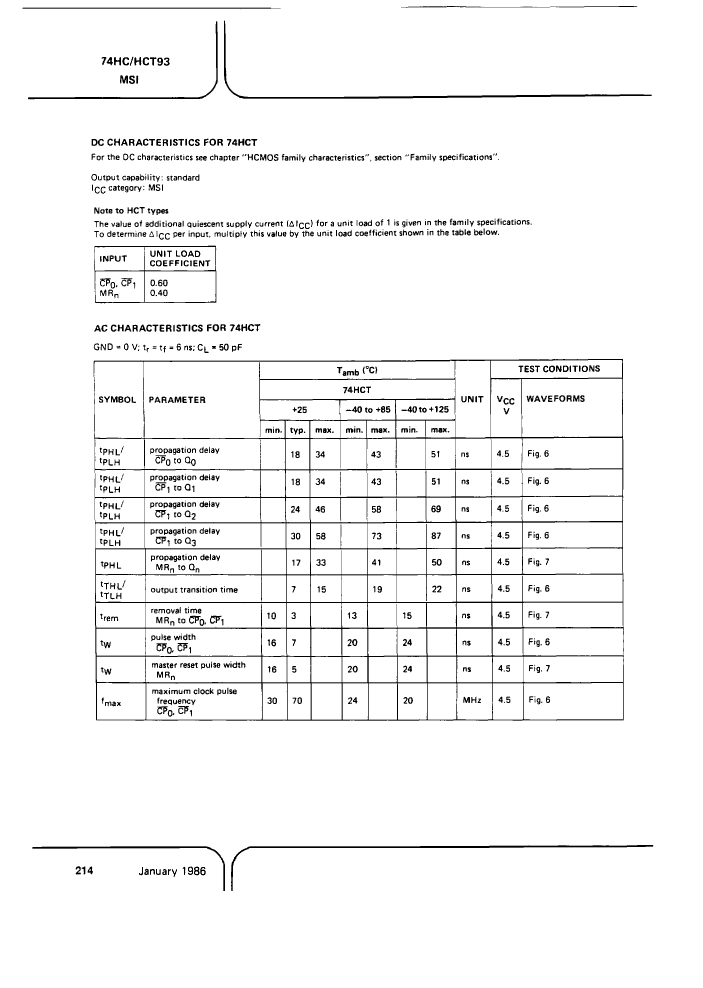

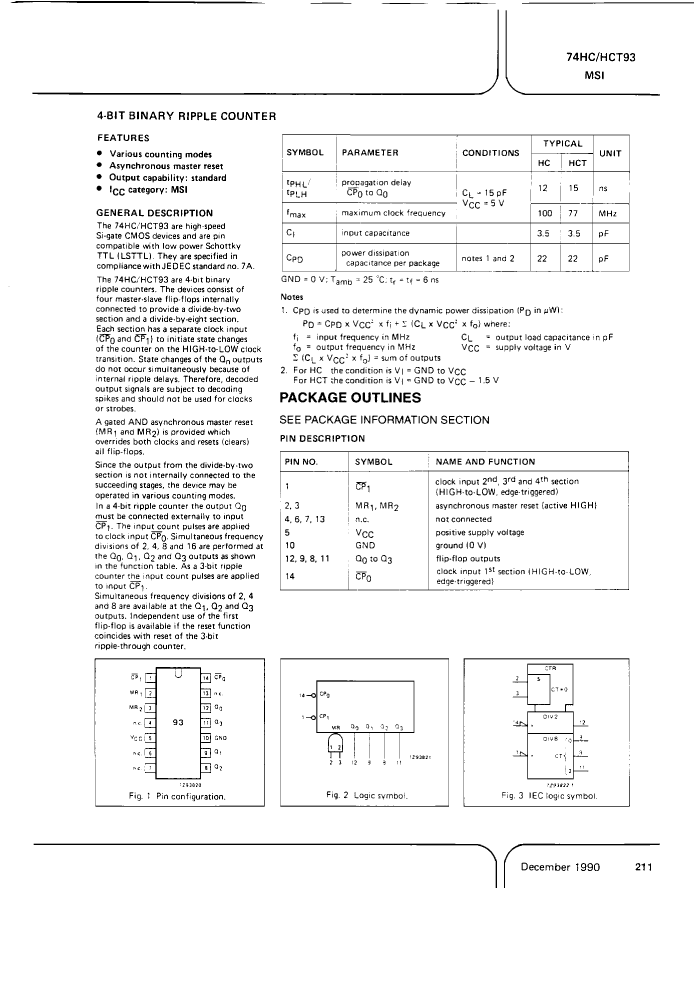

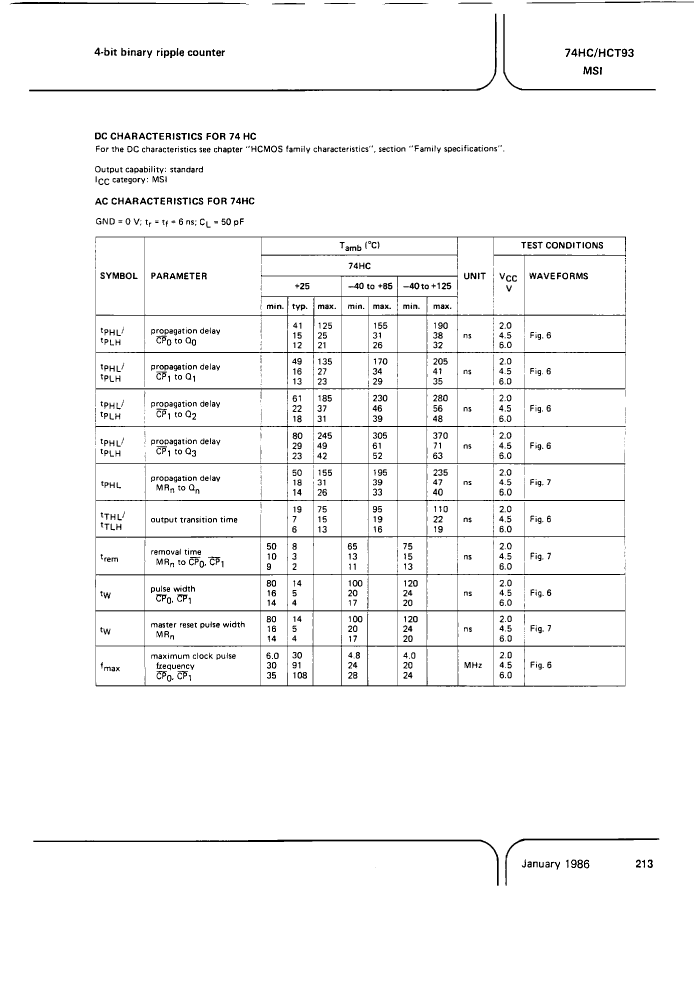

Preview

Download Datasheet

View All

74HCT93DB Related Products

	74HCT93DB	74HCT93DB-T	74HC93PW	74HC93PW-T	74HC93NB	74HCT93NB	74HCT93PW-T	74HCT93PW
Description	IC HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter	IC HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter	IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter	IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter	HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDIP14	HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDIP14	IC HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter	IC HCT SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDSO14, Counter
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SSOP,	SSOP,	TSSOP,	TSSOP,	DIP,	DIP,	TSSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP
series	HCT	HCT	HC/UH	HC/UH	HC/UH	HCT	HCT	HCT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
length	6.2 mm	6.2 mm	5 mm	5 mm	19.025 mm	19.025 mm	5 mm	5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	3	3	3	3	3	3	3	3
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	TSSOP	TSSOP	DIP	DIP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	87 ns	87 ns	71 ns	71 ns	71 ns	87 ns	87 ns	87 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	2 mm	1.1 mm	1.1 mm	4.2 mm	4.2 mm	1.1 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	6 V	6 V	6 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	2 V	2 V	2 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	2.54 mm	2.54 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	5.3 mm	5.3 mm	4.4 mm	4.4 mm	7.62 mm	7.62 mm	4.4 mm	4.4 mm
minfmax	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Base Number Matches	1	1	1	1	1	1	1	-
