ISM74-33A3H1-225.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ISM74-33A3H1-225.000

ISM74-33A3H1-225.000: DescriptionLVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN; CategoryPassive components oscillator; File Size50KB，3 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ISM74-33A3H1-225.000 Overview

LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN

ISM74-33A3H1-225.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	225 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.4mm
longest rise time	3 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

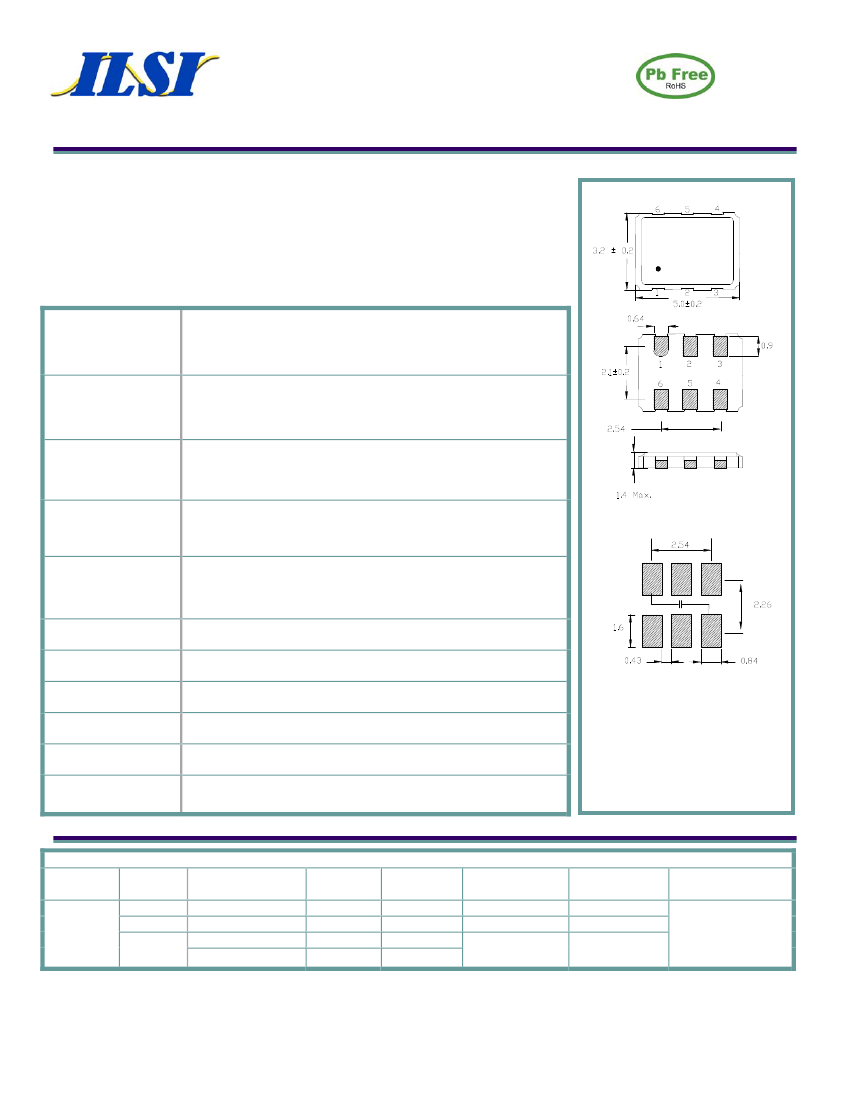

3.2 mm x 5.0 mm Ceramic Low Noise SMD Oscillator,

LVCMOS / LVPECL / LVDS

Product Features

Small Surface Mount Package

Low RMS Phase Jitter

Frequencies to 1500 MHz

Pb Free/ RoHS Compliant

Leadfree Processing

ISM74 – Series

Applications

xDSL

Broadcast video

Wireless Base Stations

Sonet /SDH

WiMAX/WLAN

Server and Storage

Ethernet/LAN/WAN

Optical modules

Clock and data recovery

FPGA/ASIC

Backplanes

GPON

Frequency

LVCMOS

LVPECL

LVDS

Output Level

LVCMOS

LVPECL

LVDS

Duty Cycle

LVCMOS

LVPECL

LVDS

Rise / Fall Time

LVCMOS

LVPECL

LVDS

Output Load

LVCMOS

LVPECL

LVDS

Frequency Stability

Supply Voltage

Current

Phase Jitter (RMS)

At 12kHz to 20 MHz

Operating Temp.

Range

Storage

10 MHz to 225 MHz

10 MHz to 1500 MHz

VOH=90% VDD min., VOL=10 % VDD max.

VOH=VDD-1.03V max. (Nom. Load), VOL=VDD-1.6V max. (Nom. Load)

VOD=(Diff. Output) 350mV Typ.

50% ±5% @ 50%VDD

50% ±5% @ 50%*

3.0 ns max. (90%/10%)*

0.6 ns max. (80%/20%)*

15pF



to VDD - 2.0 VDC

RL=100

/CL=10pF

See Table Below

3.3 VDC ± 10%, 2.5VDC ± 5%

Bypass =0.01 uF

Recommended Pad Layout

LVCMOS = 25 mA max., LVPECL = 60 mA max. LVDS = 35 mA max.

0.5 ps typical

See Table Below

-40



C to +100



Connection

Enable/Disable or N.C.

Enable/Disable or N.C

Ground

Output

Output or N.C.

Dimension Units: mm

Part Number Guide

Package

Input

Voltage

3 = 3.3V

6 = 2.5V

Sample Part Number:

Operating

Temperature

1 = 0 C to +70 C

3 = -20 C to +70 C

2 = -40 C to +85 C

ISM74–31A9H2–155.520

Output

3 = LVCMOS

8 = LVDS

9 = LVPECL

Stability

(in ppm)

F =

20

A =

25

B =

50

Enable / Disable

H = Enable (Pin 1)

K = Enable (Pin 2)

Complimentary

Ouput (Pin 5) **

1 = N.C.

2 = Output

Frequency

ISM74

-155.520 MHz

NOTE: A 0.01 µF bypass capacitor is recommended between V

(pin 6) and GND (pin 3) to minimize power supply noise. * Measured as percent of

waveform. ** Available on LVDS and LVPECL ouput only

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

07/09/12_A

Specifications subject to change without notice

Page 1

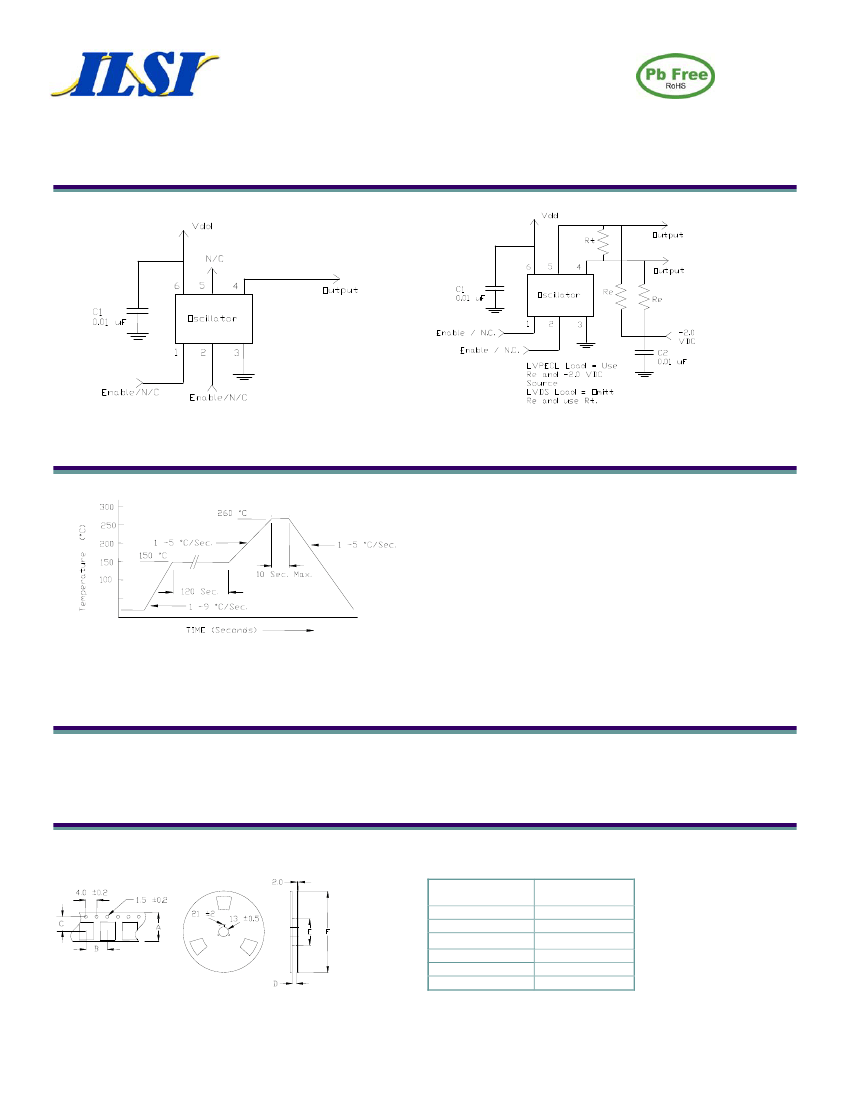

ISM74-33A3H1-225.000 Related Products

	ISM74-33A3H1-225.000	ISM74-62F3H1-225.000	ISM74-62F3K1-225.000	ISM74-33F3H1-225.000	ISM74-33A3K1-225.000	ISM74-32F3H1-225.000	ISM74-32B3H1-225.000
Description	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN	LVCMOS Output Clock Oscillator, 225MHz Nom, SMD, 6 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compliant
Other features	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH	ENABLE/DISABLE FUNCTION; TR, 7/10 INCH
maximum descent time	3 ns	3 ns	3 ns	3 ns	3 ns	3 ns	3 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO
frequency stability	25%	20%	20%	20%	25%	20%	50%
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz
Maximum operating temperature	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-40 °C	-40 °C	-20 °C	-20 °C	-40 °C	-40 °C
Oscillator type	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	5.0mm x 3.2mm x 1.4mm	5.0mm x 3.2mm x 1.4mm	5.0mm x 3.2mm x 1.4mm	5.0mm x 3.2mm x 1.4mm	5.0mm x 3.2mm x 1.4mm	5.0mm x 3.2mm x 1.4mm	5.0mm x 3.2mm x 1.4mm
longest rise time	3 ns	3 ns	3 ns	3 ns	3 ns	3 ns	3 ns
Maximum supply voltage	3.63 V	2.625 V	2.625 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.375 V	2.375 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	2.5 V	2.5 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier
Maker	ILSI	ILSI	ILSI	-	ILSI	ILSI	-
Base Number Matches	1	1	1	1	1	-	-
