Bulletin I0144J 04/01
IR30ASR..N SERIES
PHASE CONTROL THYRISTORS
Junction Size:
V
RRM
Class:
Passivation Process:
30 mm Diameter
400 and 600 V
Diffused Junction
Major Ratings and Characteristics
Parameters
V
TM
V
RRM
I
GT
V
GT
I
H
I
L
Maximum On-state Voltage
Reverse Breakdown Voltage Range
Max. Required DC Gate Current to Trigger
Max. Required DC Gate Voltage to Trigger
Maximum Holding Current
Typical Latching Current
Units
1.25 V
400 and 600 V
200 mA
3.0 V
600 mA
1000 mA
Test Conditions
T
J
= 25°C, I
T
= 1000 A
T
J
= 125°C, I
RRM
= 50 mA
T
J
= 25°C, I
RRM
= 10 mA
T
J
= 25° C
T
J
= 25° C
T
J
= 25° C, anode supply 12 V resistive load
T
J
= 25° C, anode supply 12 V resistive load
Mechanical Characteristics
Nominal Back Metal Composition
Nominal Front Metal Composition
Chip Dimensions
Recommended Storage Environment
Al (130KA)
Nickel plate molybdenum disc
30 mm diameter (see drawing)
Storage in original container, in dessicated
nitrogen, with no contamination
Document Number: 93897
www.vishay.com
1
IR30ASR..N
Bulletin I0144J 04/01
Ordering Information Table
Device Code
IR
1
1
2
3
4
5
6
7
-
-
-
-
-
-
-
International Rectifier device
Chip Dimension in Millimeters
30
2
A
3
S
4
R
5
06
6
N
7
Device identifier between chip with same diameter
Type of Device: S = Converter Type Thyristor
Passivation: R = Rubber for all junctions
Voltage code: Code x 100 = V
RRM
Metallization: N = Nickel plate Molibdenum disc (Anode)
Al (Cathode)
Available Class
04 = 400 V
06 = 600 V

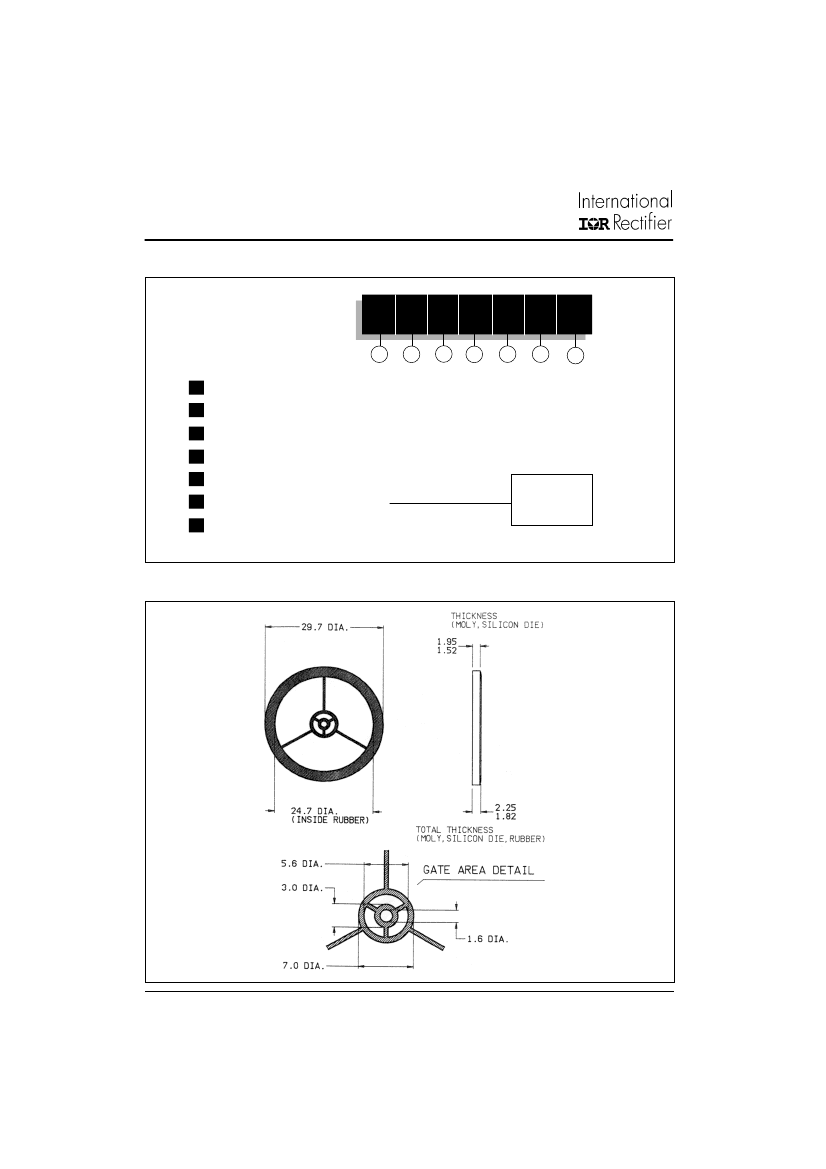

Outline Table
TYPICAL
All dimensions are in millimiters
Document Number: 93897
www.vishay.com
2
