86563006065 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 86563006065

86563006065: DescriptionWire Terminal; CategoryThe connector Connector bracket; File Size108KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86563006065 Overview

Wire Terminal

86563006065 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATING: GOLD, TERMINATION: TIN OVER NICKEL
Assembly name	CONTACT
Maximum number of cable entries	0.0681 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
Contact style	RND PIN-SKT
DIN compliance	NO
Finished thickness	30
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Rated current	5 A
Terminal type	CRIMP
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

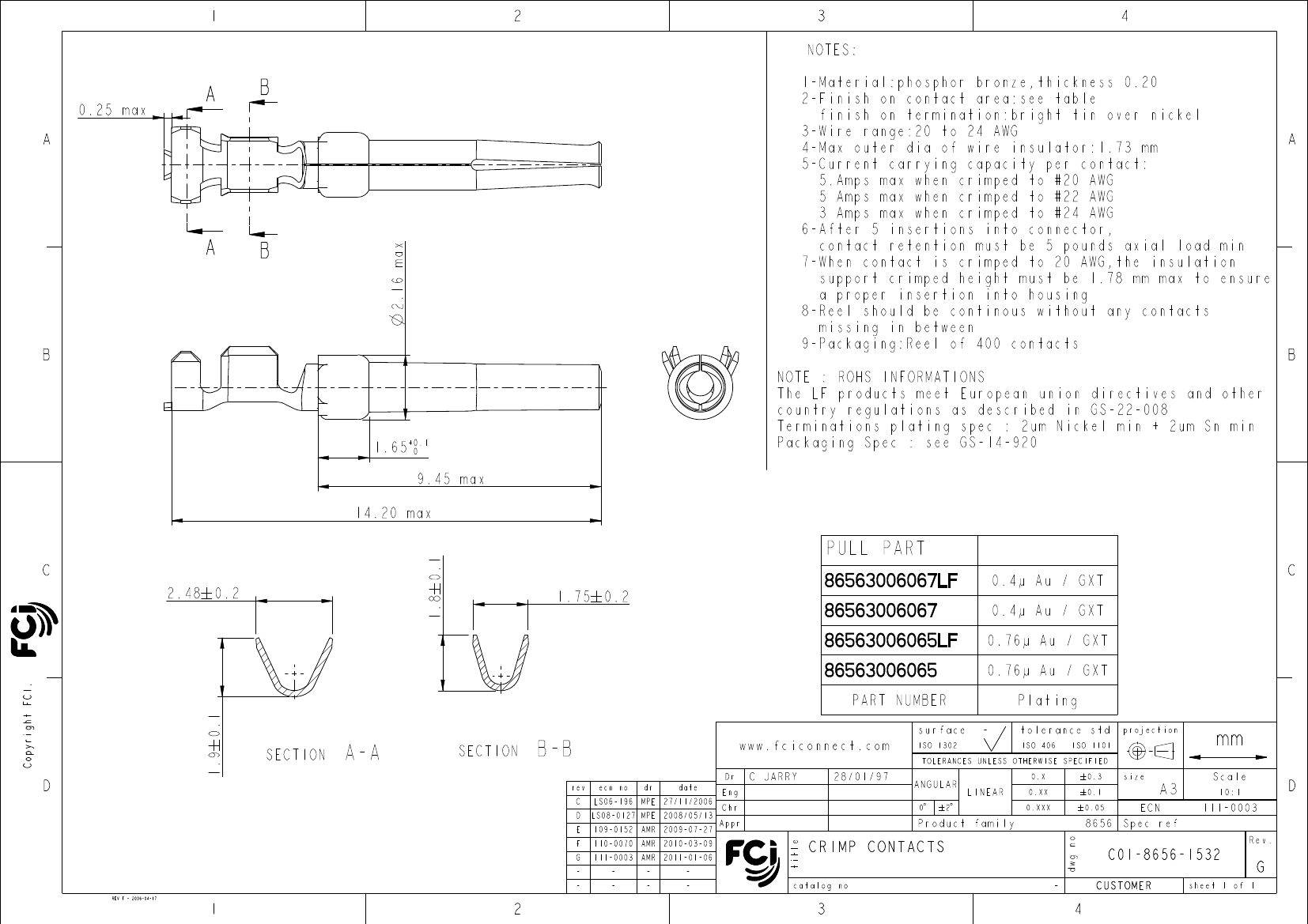

NOTES:

0.25 max

2.16 max

1-Material:phosphor bronze,thickness 0.20

2-Finish on contact area:see table

finish on termination:bright tin over nickel

3-Wire range:20 to 24 AWG

4-Max outer dia of wire insulator:1.73 mm

5-Current carrying capacity per contact:

5.Amps max when crimped to #20 AWG

5 Amps max when crimped to #22 AWG

3 Amps max when crimped to #24 AWG

6-After 5 insertions into connector,

contact retention must be 5 pounds axial load min

7-When contact is crimped to 20 AWG,the insulation

support crimped height must be 1.78 mm max to ensure

a proper insertion into housing

8-Reel should be continous without any contacts

missing in between

9-Packaging:Reel of 400 contacts

NOTE : ROHS INFORMATIONS

The LF products meet European union directives and other

country regulations as described in GS-22-008

Terminations plating spec : 2um Nickel min + 2um Sn min

Packaging Spec : see GS-14-920

1.65

+0.1

9.45 max

14.20 max

1.8 0.1

PULL PART

1.75 0.2

2.48 0.2

86563006067LF

86563006067

86563006065LF

86563006065

0.4µ Au / GXT

0.76µ Au / GXT

Plating

tolerance std

ISO 406

ISO 1101

PART NUMBER

1.9 0.1

surface

projection

SECTION

A-A

SECTION

B-B

rev

ecn no

LS06-196

I09-0152

I10-0070

I11-0003

date

Eng

Chr

Appr

MPE 27/11/2006

AMR 2009-07-27

AMR 2010-03-09

AMR 2011-01-06

LS08-0127 MPE 2008/05/13

www.fciconnect.com

C JARRY

28/01/97

ISO 1302

Scale

10:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

I11-0003

Rev.

Product family

dwg no

title

8656 Spec ref

CRIMP CONTACTS

C01-8656-1532

CUSTOMER

sheet

1 of 1

catalog no

REV F - 2006-04-17

PDM: Rev:G

STATUS:

Released

Printed: Mar 05, 2011

86563006065 Related Products

	86563006065	86563006067
Description	Wire Terminal	Wire Terminal
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	MATING: GOLD, TERMINATION: TIN OVER NICKEL	MATING: GOLD, TERMINATION: TIN OVER NICKEL
Assembly name	CONTACT	CONTACT
Maximum number of cable entries	0.0681 inch	0.0681 inch
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	FEMALE	FEMALE
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Finished thickness	30	16
IEC compliance	NO	NO
MIL compliance	NO	NO
Material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Installation method	STRAIGHT	STRAIGHT
Rated current	5 A	5 A
Terminal type	CRIMP	CRIMP
Maximum wire diameter	20 AWG	20 AWG
Minimum wire diameter	24 AWG	24 AWG
Base Number Matches	1	1
