74LV4094PW datasheet, PDF - EEWORLD Datasheet

74LV4094PW: DescriptionShift Register, 8-Bit, CMOS, PDSO16; Categorylogic logic; File Size230KB，7 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74LV4094PW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74LV4094PW	-	-	View	Buy Now

Shift Register, 8-Bit, CMOS, PDSO16

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP16,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

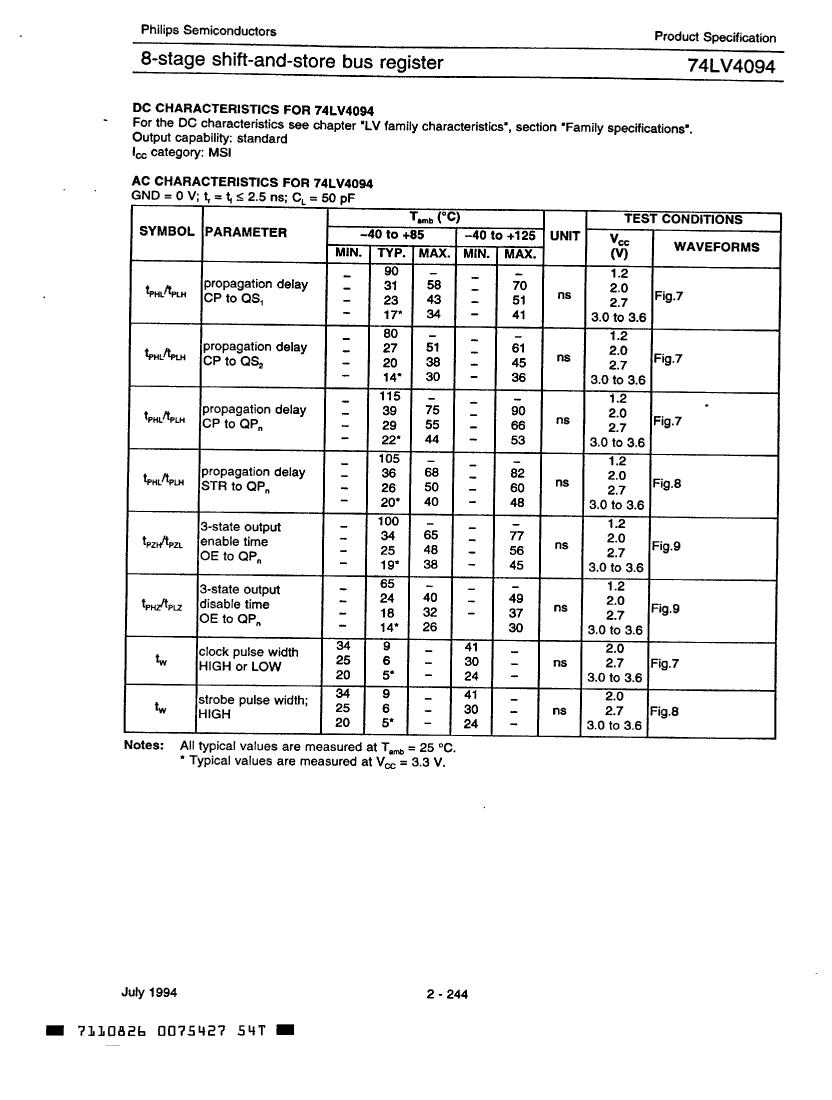

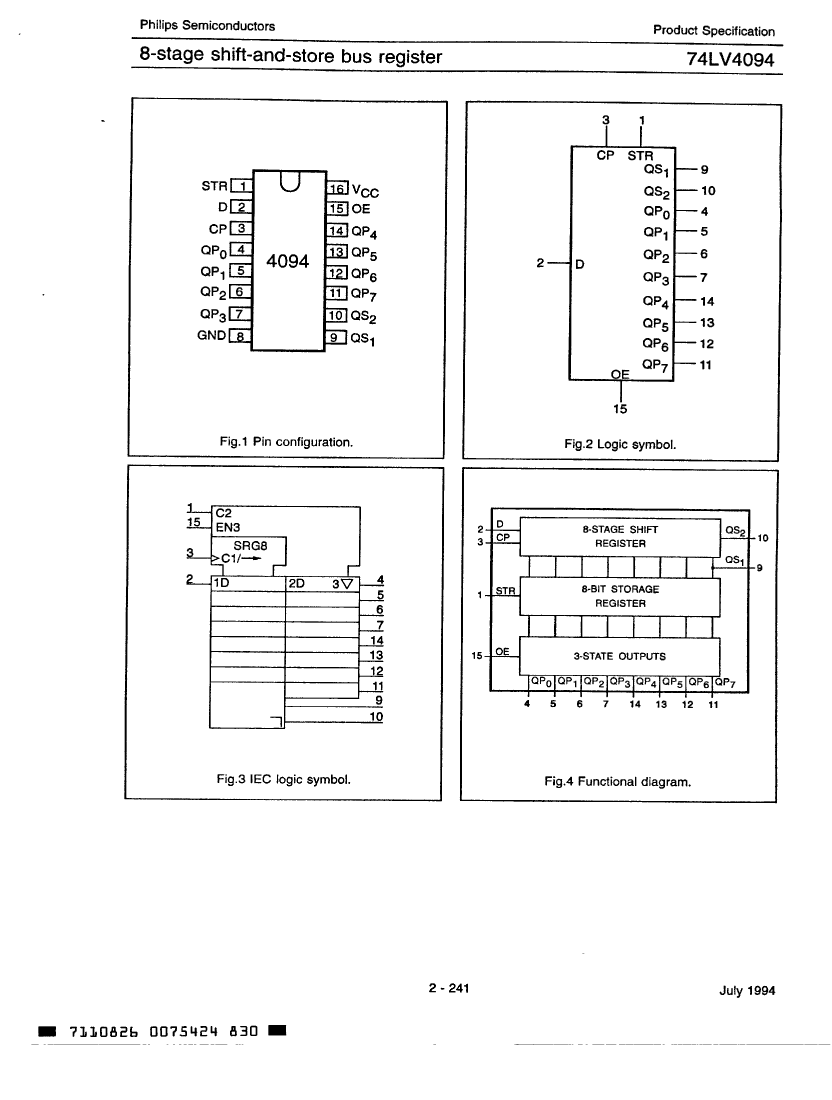

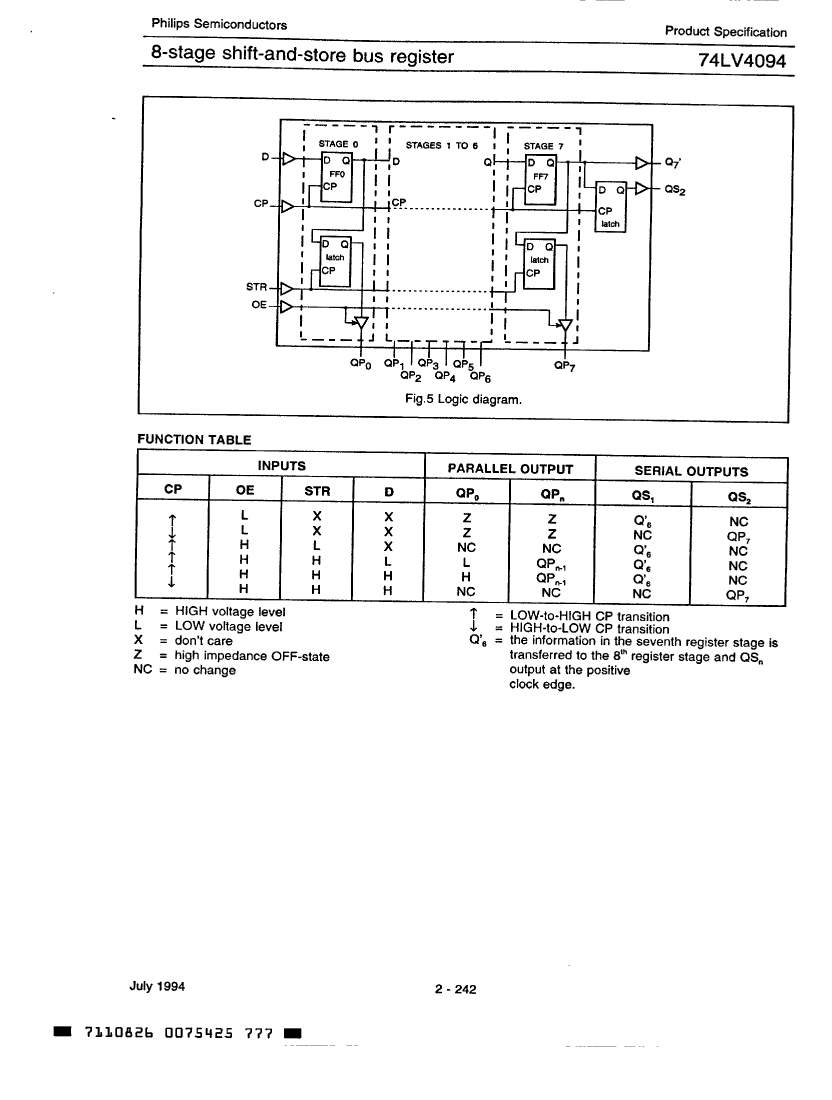

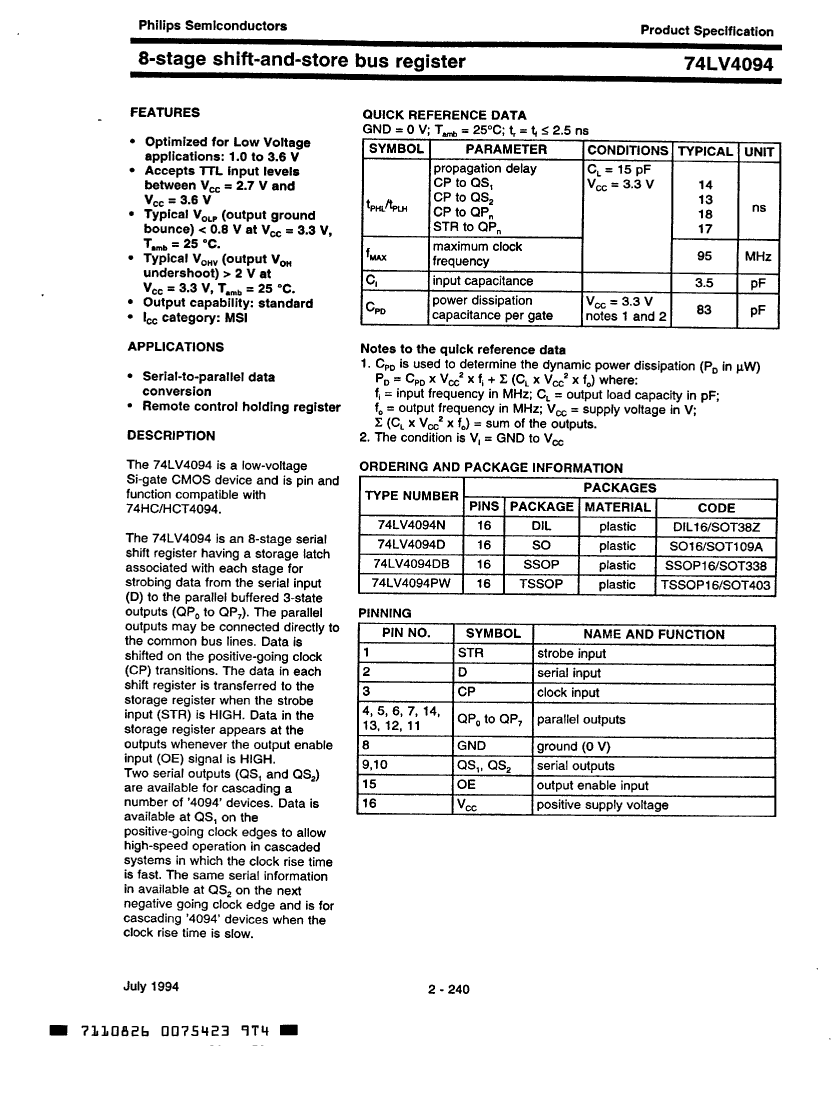

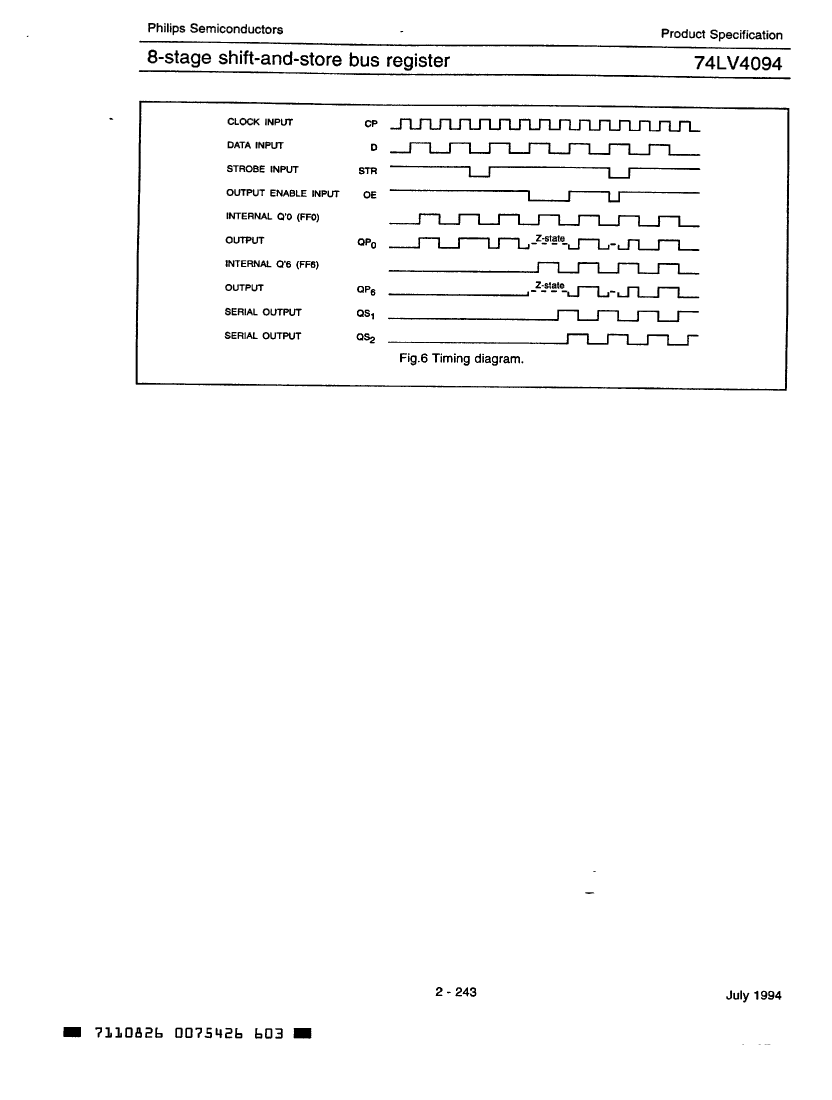

This Material Copyrighted By Its Respective Manufacturer

	74LV4094PW	74LV4094DB
Description	Shift Register, 8-Bit, CMOS, PDSO16	Shift Register, 8-Bit, CMOS, PDSO16
Is it Rohs certified?	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP16,.25	SSOP, SSOP16,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16
Number of digits	8	8
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP
Encapsulate equivalent code	TSSOP16,.25	SSOP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
