583544-2 datasheet, PDF - EEWORLD Datasheet

583544-2: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,0.156 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

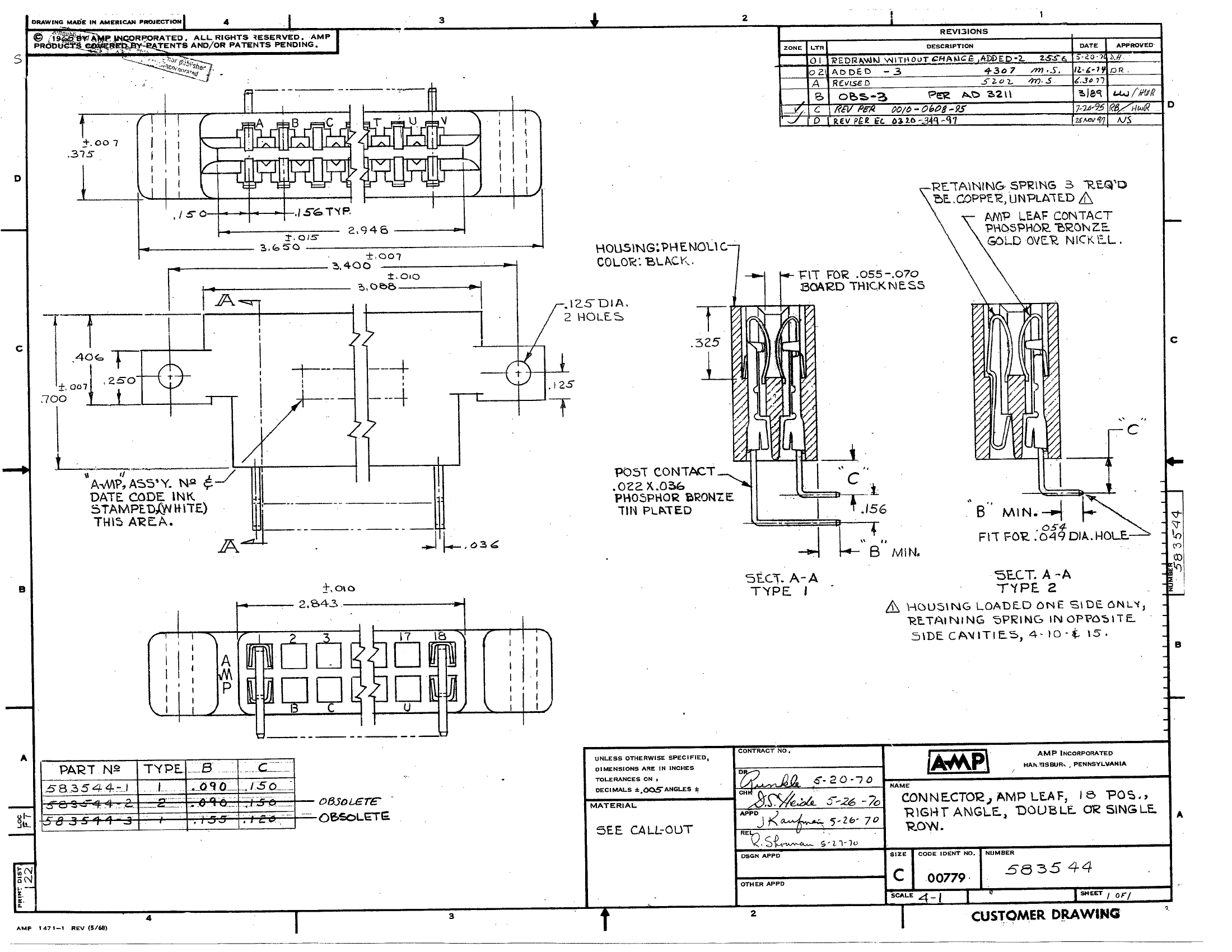

583544-2 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,0.156 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.375 inch
subject depth	0.861 inch
body length	3.65 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
maximum insertion force	4.448 N
insulator material	GLASS FILLED PHENOLIC
Plug contact pitch	0.156 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	18
Evacuation force-minimum value	.556 N
Base Number Matches	1

	583544-2	583544-3	583544-1
Description	EDGE CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,0.156 PITCH,PC TAIL TERMINAL	CONNECTOR, 36 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER	EDGE CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,0.156 PITCH,PC TAIL TERMINAL
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	compliant
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	2	2
Terminal pitch	3.9624 mm	3.96 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	18	36	18
Other features	NONE	-	NONE
Board mount options	MOUNTING FLANGE	-	MOUNTING FLANGE
body width	0.375 inch	-	0.375 inch
subject depth	0.861 inch	-	1.017 inch
body length	3.65 inch	-	3.65 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	BELLOWED TYPE	-	BELLOWED TYPE
maximum insertion force	4.448 N	-	4.448 N
insulator material	GLASS FILLED PHENOLIC	-	GLASS FILLED PHENOLIC
Plug contact pitch	0.156 inch	-	0.156 inch
Number of connectors	ONE	-	ONE
PCB row number	1	-	2
Maximum operating temperature	105 °C	-	105 °C
Minimum operating temperature	-55 °C	-	-55 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
Plating thickness	15u inch	-	15u inch
Rated current (signal)	5 A	-	5 A
Guideline	UL, CSA	-	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL
Terminal length	0.09 inch	-	0.09 inch
Evacuation force-minimum value	.556 N	-	.556 N
Base Number Matches	1	1	-
ECCN code	-	EAR99	EAR99
