5-175487-1 datasheet, PDF - EEWORLD Datasheet

5-175487-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.079 PITCH,PC TAIL W/RETNN TERMINAL,YELLOW; CategoryThe connector The connector; File Size97KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

5-175487-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.079 PITCH,PC TAIL W/RETNN TERMINAL,YELLOW

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	PACKAGING 500 PER BOX
body width	0.228 inch
subject depth	0.268 inch
body length	0.937 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	TIN/LEAD OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	75.1712 N
Insulation resistance	500000000 Ω
Insulator color	YELLOW
insulator material	NYLON
Manufacturer's serial number	175487
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	11
Evacuation force-minimum value	13.344 N
Base Number Matches	1

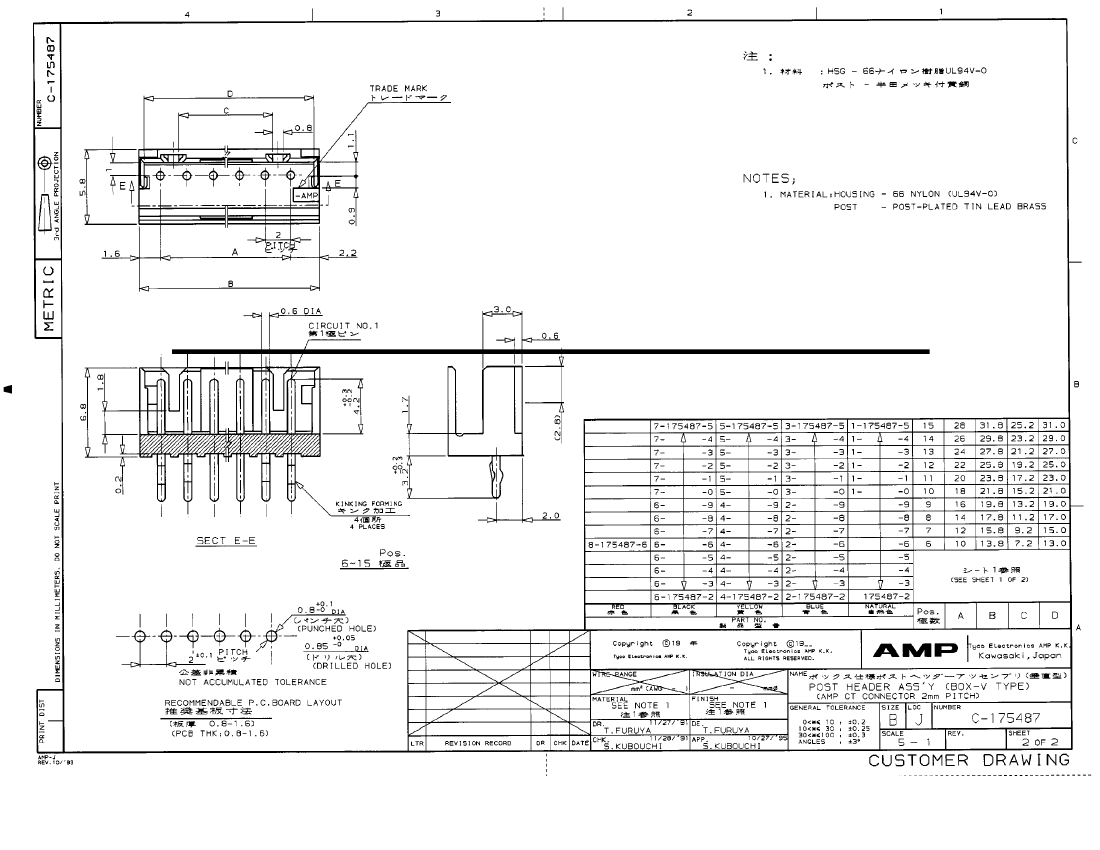

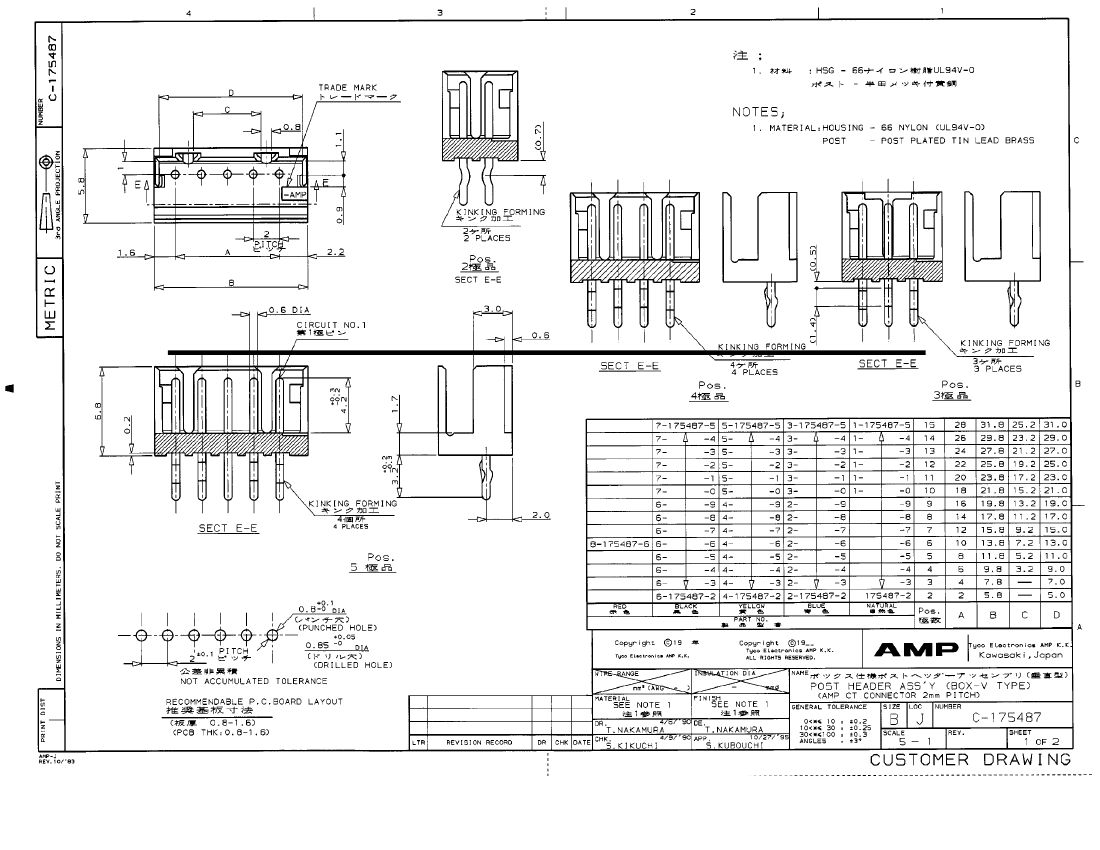

SUPERSEDED BY 292132

L

SUPERSEDED FB00-0276-04

C.W I.E

27JUN

04

L
